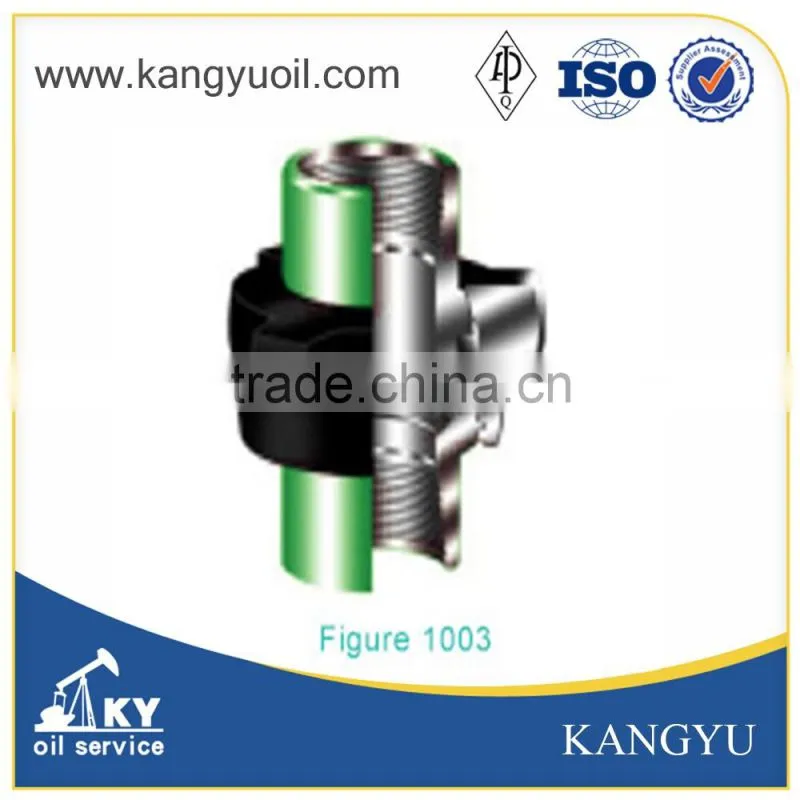

Help CenterFigure 1003 Specif Ication and Reference Dimensions of Union
Related Products
-
Figure 602Specif Ication and Reference Dimensions of UnionUS$ 10 - 100MOQ: 100 Pieces -
Figure 402 606 Specif Ication and Reference Dimensions of UnionUS$ 10 - 100MOQ: 100 Pieces
-
API Wellhead Tools Medium and Heavy Crudes Efficient Gas-water Sand SeparatorNegotiableMOQ: 1 Set
-
Figure 400 Specif Ication and Reference Dimensions of UnionUS$ 10 - 100MOQ: 100 Pieces
-
Figure 301 Specif Ication and Reference Dimensions of UnionUS$ 10 - 100MOQ: 100 Pieces
With an spheric seat, the union allows a deviation by 7-1/2°from the center or angle adjustment with a total deviation capacity of 15°. In addition to the steel-to-steel match, the nitrile-butadience rubber O-ring ensures air-tightness in connection at any deflected position.
It is recommended for the connection of high-pressure lines when alignment is impossible.
The product may be used in applications with air, water, oil, mud or gas.
Nominal pipe |
Connection |
Total length |
Nut radius |
Materials |
Weight |
|||||
Nut |
Part |
|||||||||
in |
mm |
|
in |
mm |
in |
mm |
|
|
lbs |
kgs |
3 |
76.2 |
NPT |
91/8 |
231.8 |
47/8 |
123.8 |
SC |
AS |
45.0 |
99.2 |
3 |
76.2 |
Sch160 |
87/8 |
225.4 |
47/8 |
123.8 |
SC |
AS |
47.5 |
104.7 |
3 |
76.2 |
XXHVY |
91/8 |
231.8 |
47/8 |
123.8 |
SC |
AS |
48.5 |
106.9 |
4 |
101.6 |
HPT |
1015/16 |
277.8 |
53/4 |
146.0 |
SF |
SF |
72.0 |
158.7 |
4 |
101.6 |
SCH160 |
1011/16 |
271.5 |
53/4 |
146.0 |
SF |
AS |
76.0 |
167.5 |
4 |
101.6 |
XXHVY |
1015/16 |
277.8 |
53/4 |
146.0 |
SF |
AS |
78.0 |
172.0 |
5 |
127 |
SCH160 |
103/. |
273.1 |
53/. |
146.0 |
SF |
AS |
74.0 |
163.0 |
5 |
127 |
XXHVY |
1015/16 |
277.8 |
3/4 |
146.0 |
SF |
AS |
76.5 |
168.7 |
For figure1003, 10000PSI NSCWP(7500 PSI NSCWP, 4in, 5in)with black nut and green parts
