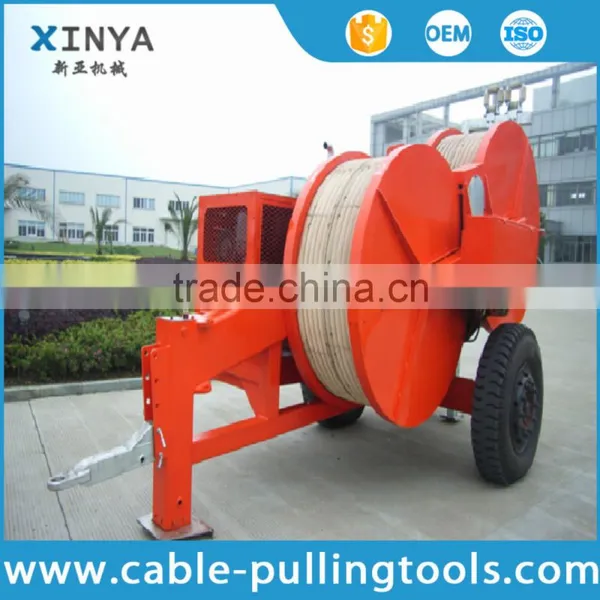

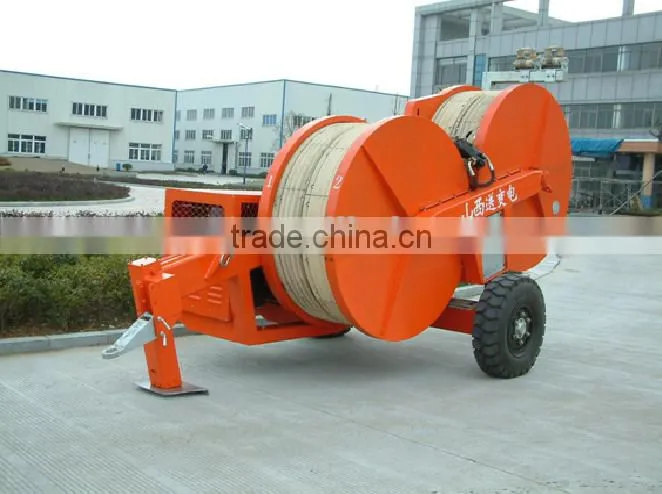

SA-YZ2*50 Nylon bullwheel hydraulic cable stringing tensioner for overhead transmission
Application
SA-YZ2*50 Nylon bullwheel hydraulic cable stringing tensioner for overhead transmission is adequate to tension releasing various conducts and earthwires, and it as one pull one or one pull four using.
Feature :
1. Bullwheel with wearproof MC nylon lining segments.
2. Infinitely variable tension control and constant tension conductor stringing .
3. Spring applied hydraulic released brake acts automatically in case of hydraulic failure to ensure safety .
4. Attached two sets of hydraulic power output interface to connect hydraulic conductor reel stand.
Main component
1.Engine :Deutz air-cooled diesel engine .
2.Main pump and main motor : Rexroth(BOSCH)
3.Reducer : RR(Italian)
4.Radiator :AKG
5.Hydraulic instrument :WIKA
6.Hydraulic valve:Rexroth(BOSCH)
7.It can choose the Chinese Deutz air-cooled engine.
Technical Data of SA-YZ2*50 Nylon bullwheel hydraulic cable stringing tensioner for overhead transmission
| Model Type | SA-YZ2*50 |
| Maximum Tension(KN) | 2*50 or 1*100 |
| Continuous Tension(KN) | 2*45 or 1*90 |
| Maximum speed(km/h) | 5 |
| Bullwheel bottom of groove diameter(mm) | Φ1500 |
| Number of groove | 2*5 |
| Maximum pullback(KN) | 2*50 or 1*100 |
| Maximum speedback(km/h) | 2*1 |
| Maximum suitable conductor diameter(mm) | Φ40 |
| Engine power/speed(kw/rpm) | 51/2500 |
| Dimensions(mm) | 5130*2250*2910 |
| Weight(kg) | 6500 |
