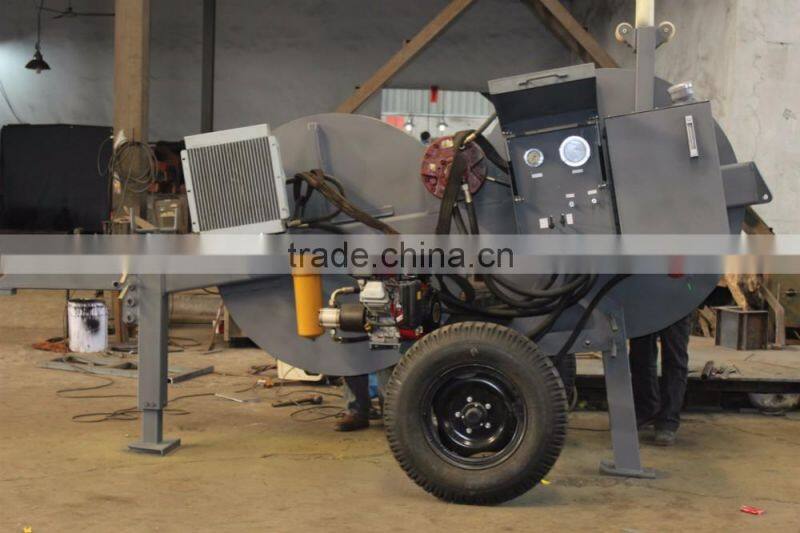

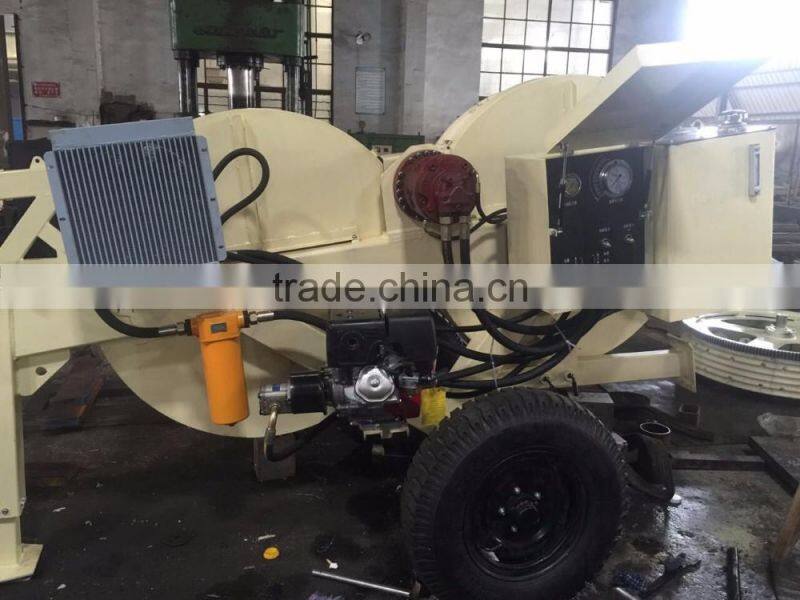

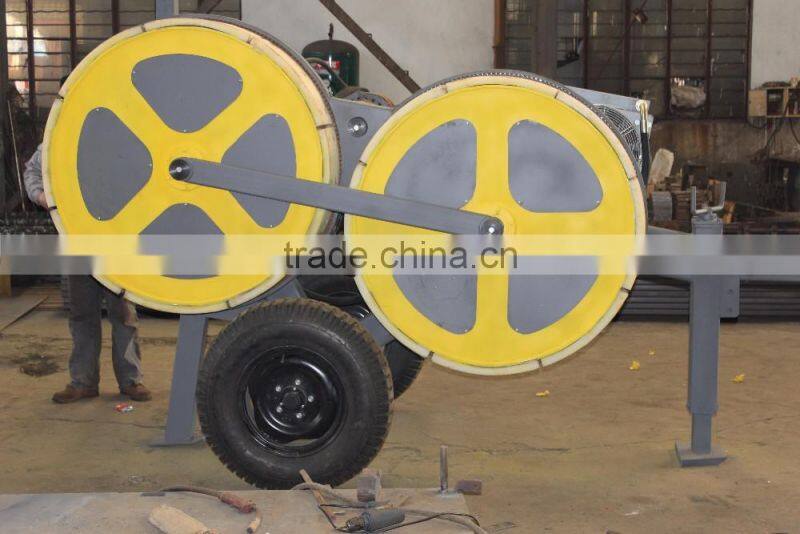

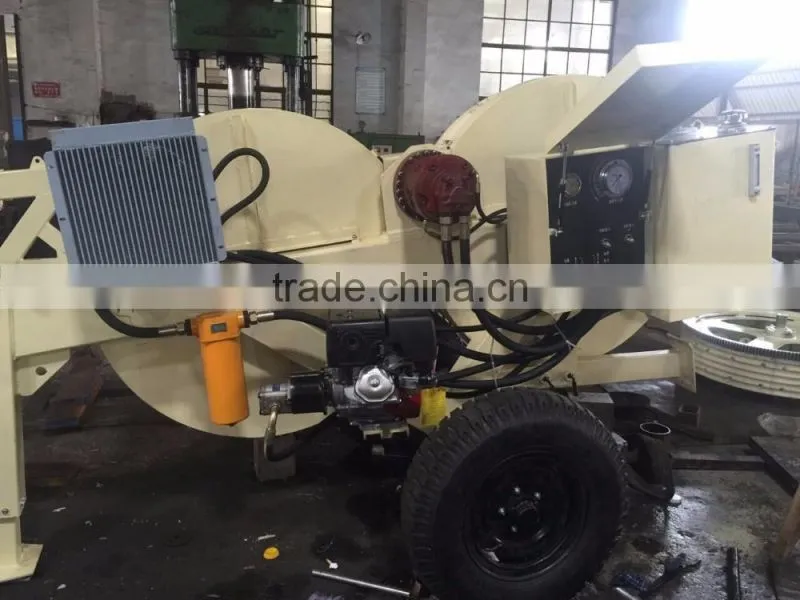

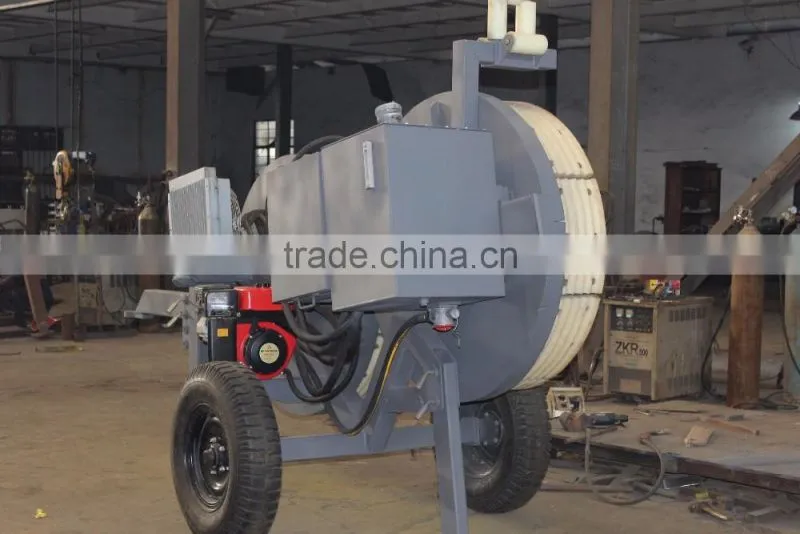

SA-YZ30A 30KN Stringing Equipment Hydraulic Puller Tensioner
Application
SA-YZ30A 30KN Stringing Equipment Hydraulic Puller Tensioner is adequate to tension releasing various conducts and earthwires, and also useful for tension releasing OPGW optic cable compounded earthwire and ADSS selfstand optic cable.ect.
Feature :

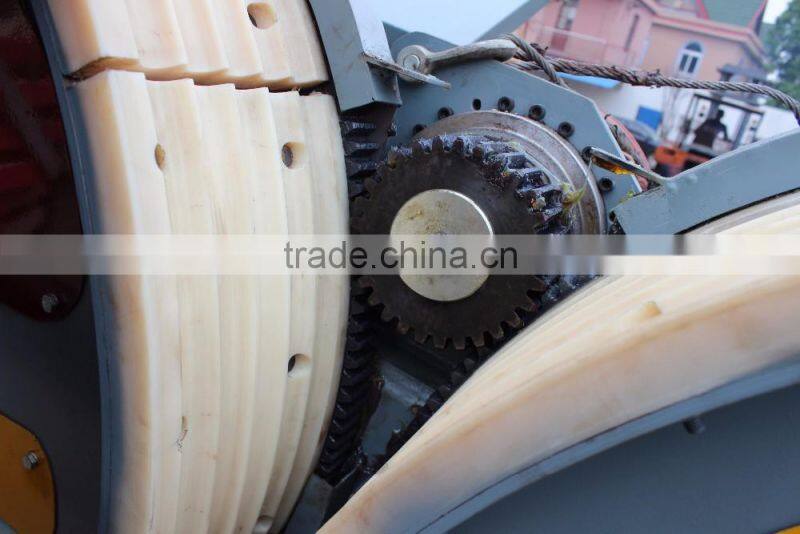

1. Bullwheel with wearproof MC nylon lining segments.
2. Infinitely variable tension control and constant tension conductor stringing .
3. Spring applied hydraulic released brake acts automatically in case of hydraulic failure to ensure safety .
4. It adapt Italian reducer.
Main component
1.Engine :domestic water–cooled engine .
2.Main pump and main motor : Chineae famous branded pump and motor.
3.Reducer : RR(Italian)
4.Radiator :AKG
5.Hydraulic instrument :WIKA
6.It can choose import engine .
Technical Data of SA-YZ30A 30KN Stringing Equipment Hydraulic Puller Tensioner
| Model Type | SA-YZ30A |
| Maximum Tension(KN) | 30 |
| Continuous Tension(KN) | 25 |
| Maximum speed(km/h) | 5 |
| Bullwheel bottom of groove diameter(mm) | Φ1200 |
| Number of groove | 5 |
| Maximum pullback(KN) | 20 |
| Maximum suitable conductor diameter(mm) | Φ32 |
| Engine power/speed(kw/rpm) | 11/2200 |
| Weight(kg) | 1700 |
