Product Details
| Place of Origin | Jiangsu, China | Brand Name | Xinya | |
| Model Number | SA-YZ2*35 | Type | Other, Hydraulic Pullers, hydraulic puller tensioner |
Product Description

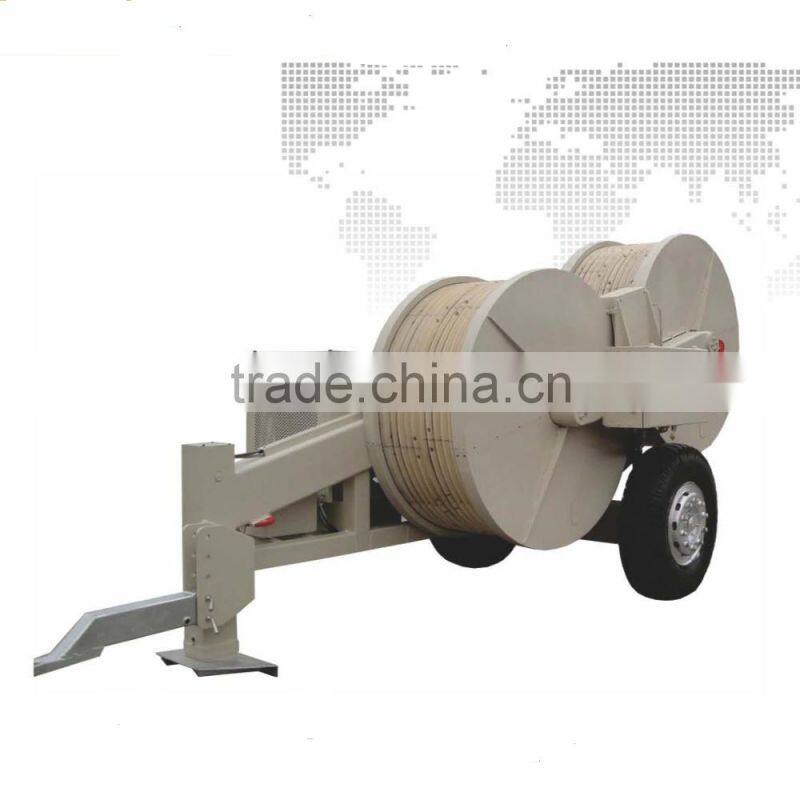

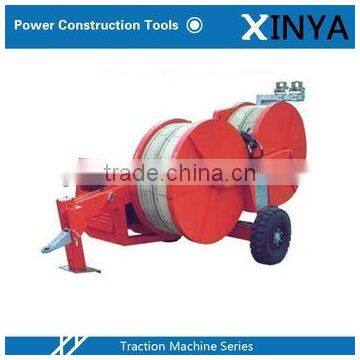

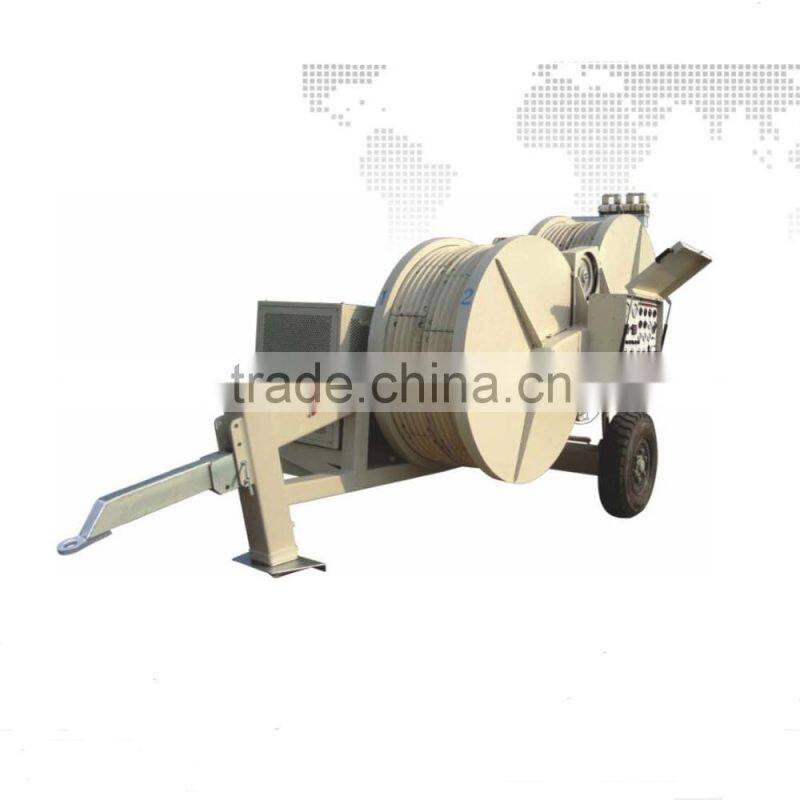

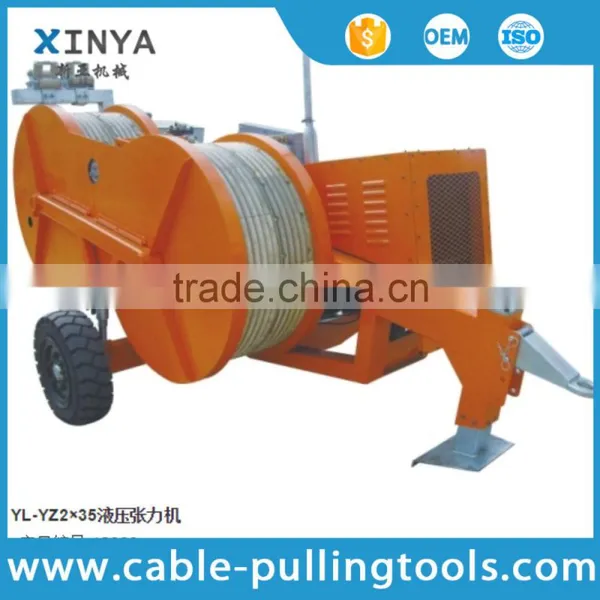

2*35KN Hydraulic tensioner machine for stringing conducts and earthwire
Application
2*35KN Hydraulic tensioner machine for stringing conducts and earthwire is adequate to tension releasing various conducts and earthwires.
Feature :
1. Bullwheel with wearproof MC nylon lining segments.
2. Infinitely variable tension control and constant tension conductor stringing .
3. Spring applied hydraulic released brake acts automatically in case of hydraulic failure to ensure safety.
4.Attached two sets of hydraulic power input interface to connect the hydraulic conductor reel stand.
Main component
1.Engine :Chinese famous brand water–cooled engine .
2.Main pump and main motor : Rexroth(BOSCH)
3.Reducer : RR(Italian) or Rexroth
4.Radiator :AKG
5.Hydraulic instrument :WIKA
6.Hydraulic valve:Rexroth(BOSCH)
7.It can choose:Deutz aircooled engine.
Technical Data of 2*35KN Hydraulic tensioner machine for stringing conducts and earthwire
| Model Type | SA-YZ2*35 |
| Maximum Tension(KN) | 2*35 or 1*70 |
| Continuous Tension(KN) | 2*30 or 1*60 |
| Maximum speed(km/h) | 5 |
| Bullwheel bottom of groove diameter(mm) | Φ1200 |
| Number of groove | 2*5 |
| Maximum pullback(KN) | 2*30 or 1*60 |
| Maximum speedback(km/h) | 2*1.2 |
| Maximum suitable conductor diameter(mm) | Φ32 |
| Engine power/speed(kw/rpm) | 38/2500 |
| Dimensions(mm) | 4100*2100*2600 |
| Weight(kg) | 4000 |
