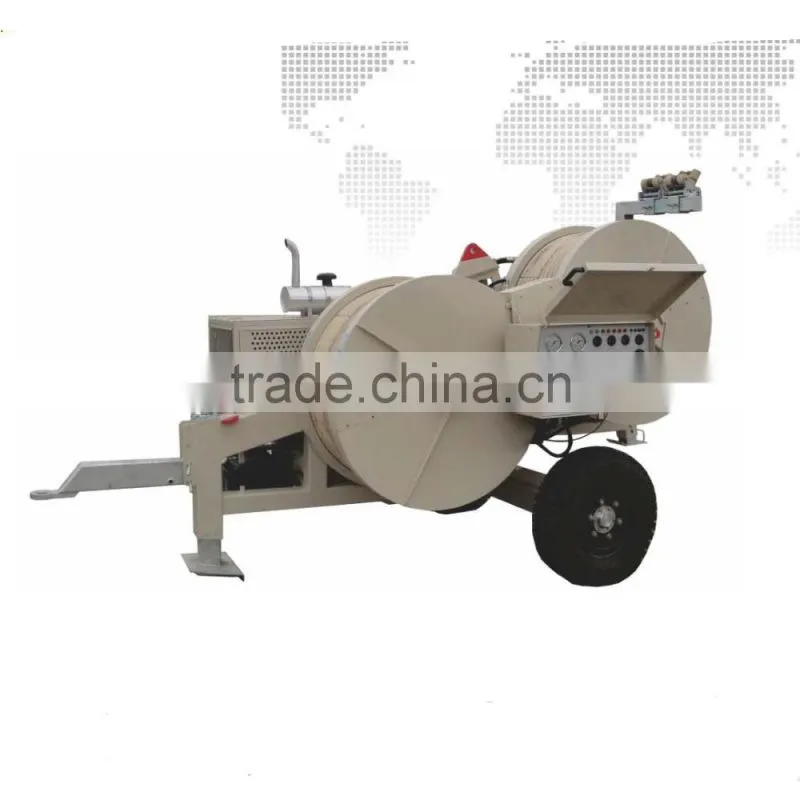

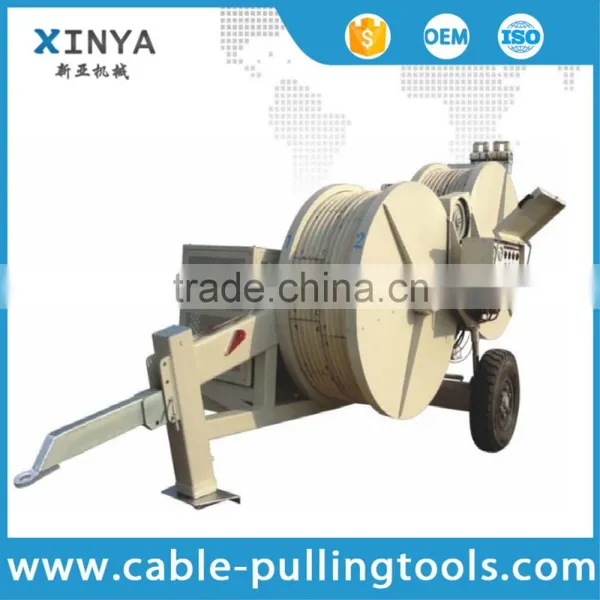

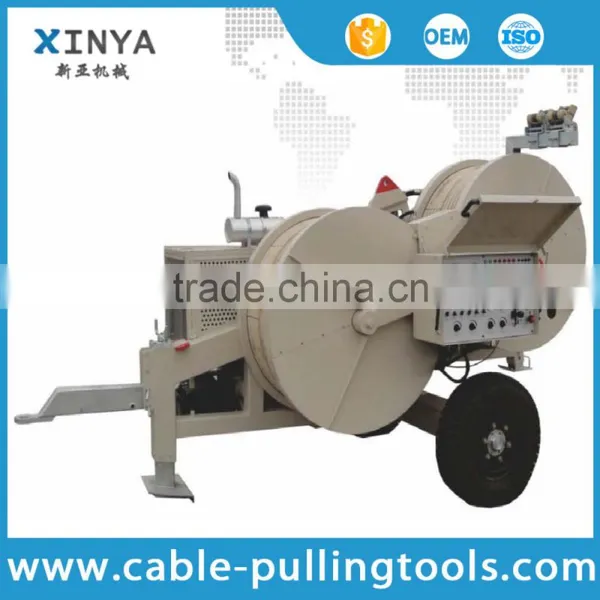

High Performance 40KN Hydraulic Puller Tensioner, Wire Tension Device

Name: High Performance 40KN Hydraulic Puller Tensioner, Wire Tension Device
Brand: Xinya
SKU: 140801094
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

Xinya

Model Number:

SA-YZ40A

Changshu Xinya Machinery Manufacturing Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name Xinya

Model Number SA-YZ40A

Type Other, Hydraulic Pullers, hydraulic puller tensioner

High performance 40KN hydraulic puller tensioner, wire tension device

Application

High performance 40KN hydraulic puller tensioner, wire tension device is adequate to tension releasing various conducts and earthwires.

Feature :

1. Bullwheel with wearproof MC nylon lining segments.

2. Infinitely variable tension control and constant tension conductor stringing .

3. Spring applied hydraulic released brake acts automatically in case of hydraulic failure to ensure safety.

Main component

1.Engine :Cummines water–cooled engine .

2.Main pump and main motor : Rexroth(BOSCH)

3.Reducer : RR(Italian)

4.Radiator :AKG

5.Hydraulic instrument :WIKA

6.Hydraulic valve:Rexroth(BOSCH)

Technical Data of High performance 40KN hydraulic puller tensioner, wire tension device

Model Type	SA-YZ40A
Maximum Tension(KN)	40
Continuous Tension(KN)	35
Maximum speed(km/h)	5
Bullwheel bottom of groove diameter(mm)	Φ1200
Number of groove	5
Maximum pullback(KN)	40
Maximum speedback(km/h)	2
Maximum suitable conductor diameter(mm)	Φ32
Engine power/speed(kw/rpm)	37/2800
Dimensions(mm)	340018002400
Weight(kg)	2800
