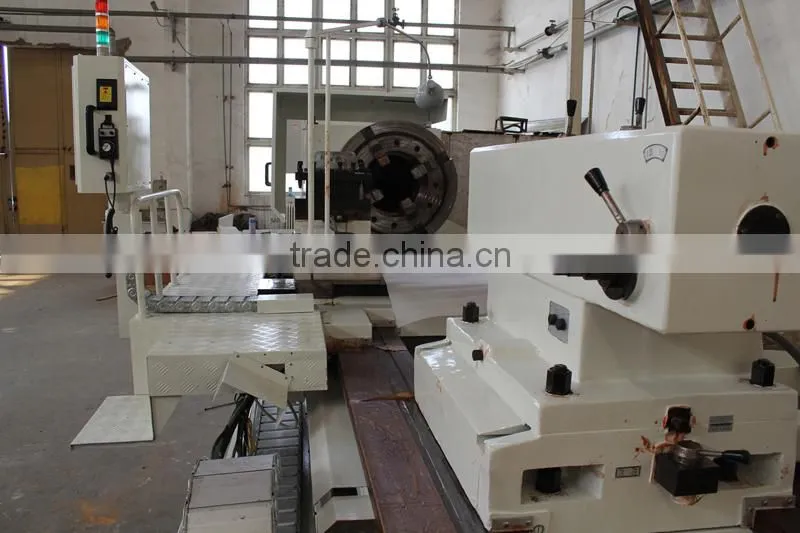

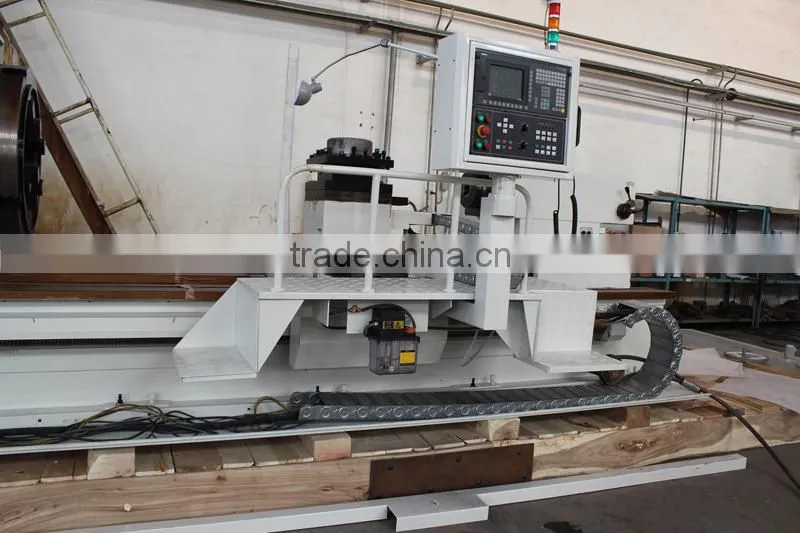

18" CNC Oil Country Lathe QK-460A

18" CNC Oil Country Lathe QK-460A thumbnail-1
18" CNC Oil Country Lathe QK-460A photo-1
US$ 169,000 - 189,500 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Horizontal
CNC or Not:
CNC
Contact Supplier Request Quote Chat Now
Zhengzhou Timeway Machine Tool Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin Qingdao Shanghai Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Horizontal
CNC or Not CNC
Automatic Grade Automatic
Max. Swing Diameter 1250mm
Place of Origin Henan, China
Brand Name TIMAC
Model Number QK-460A
Voltage As request
Power(W) 28kw
Dimension(L*W*H) 10*2.2*2.55M
Weight 19tons
Certification CE; ISO9001



CNC Oil Country lathe (QK-460A)

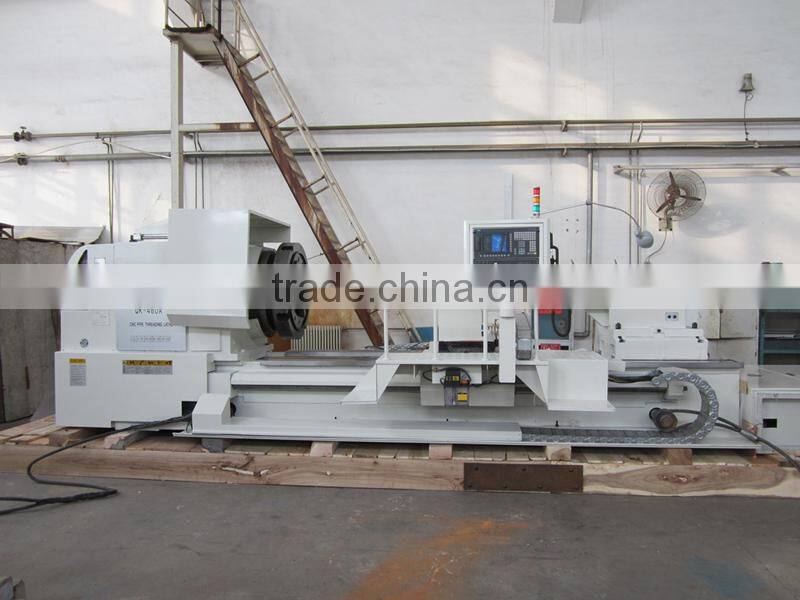

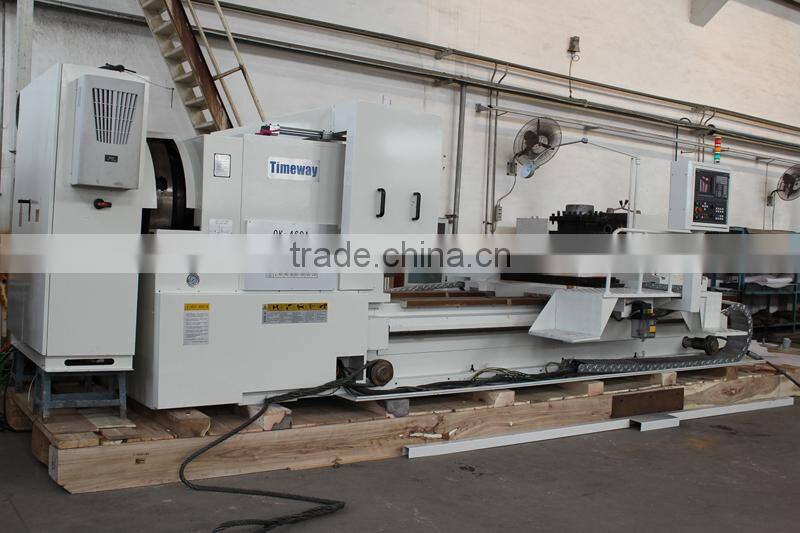

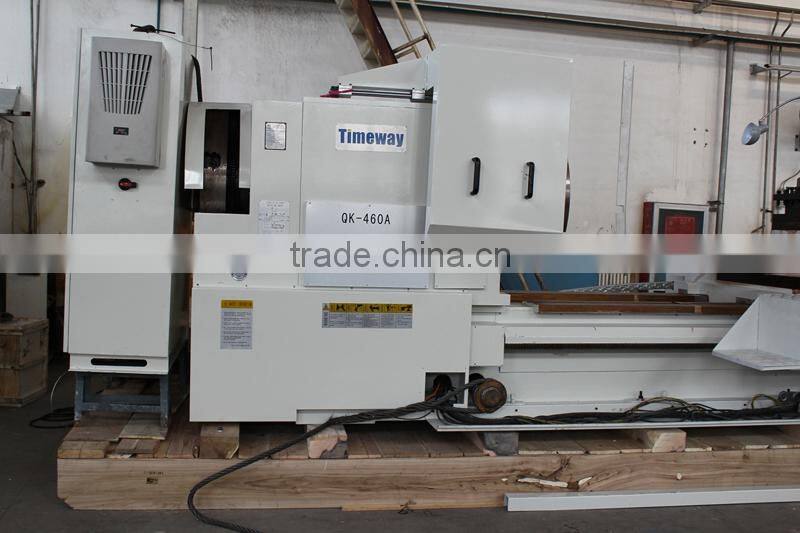

  18" CNC Oil Country Lathe QK-460A





Application:



We, Timeway Machine sold 6", 8", 10", 14", 18" hollow spindle CNC oil country lathes designed to perform all sizes of the threads used in the oil & gas industry; center height 385mm, 500mm, 550mm, 650mm; distance between centres from 750mm up to 5000mm; 3-jaw self-centering chuck or 4-jaw independent chuck on both sides of gear box. All machines are in conformity to the CE norms.



Parameter:



Specification Unit QK-120A QK-190A QK-260A   QK-350A    QK-460A
Capacity Centre height   385 500               550               650
Swing over  bed                      mm 770 1000 1100 1250
Swing over carriage mm 480 630 730 900

External diameter of pipes

(manual chuck)

 mm 120 190 70-260 114-340 300-460
Maximum length of workpiece mm 750/1000/1500/2000/3000 1500/3000/5000 3000
Maximum turning length mm 600/800/1350/1850/2850 1300/2800/4800 2800
Width of guideway mm 550 755 1100

Spindle Spndle bore mm 130 200 275 355 465
Spindle nose   C11 A2-15 A2-28

Headstock Step of Spindle speed(Three-phase asyn-chronous motor)   manual 3 steps,auto 6 steps 16 speeds manual 2 steps,auto 4 steps 8 speeds --- --- ---
Step of Spindle speed(Variable frequency motor)   --- --- auto 4 gear steps,stepless speed change in the step.
Range of spindle speed(Three-phase asyn-chronous motor)   25-800 90-450 --- --- ---
Range of spindle speed(Variable frequency motor)   --- --- 6-400 5-320 5-200
Main motor power(Three-phase asyn-chronous motor) kw 11 --- --- ---

Main motor power

(Variable frequency motor)

       18.5 28/38
  Chuck type(manual chuck)   manual 3 jaw 380 manual 3 jaw 500 manual 4 jaw 630 manual 4 jaw 800 manual 4 jaw 630
Feed Min.feed increment of X-/Z-axis mm 0.001/0.001
Rapid speeds of X-/Z-axis mm/min 3000/6000
Max.travel of x-axis mm 390 630 800
Carriage Tool-post working position   Vertical 4-position240 Vertical 4-position300
Indexing time s 2.5 4
Indexing repeatility mm 0.008 0.01
Section of tool shank mm 32 40
Tailstock Diameter of tailstock quill mm 100 160
Travel of tailstock quill mm 250 300
Taper hole of tailstock quill   Morse 5 Morse 6



 *** Standard Configuration:

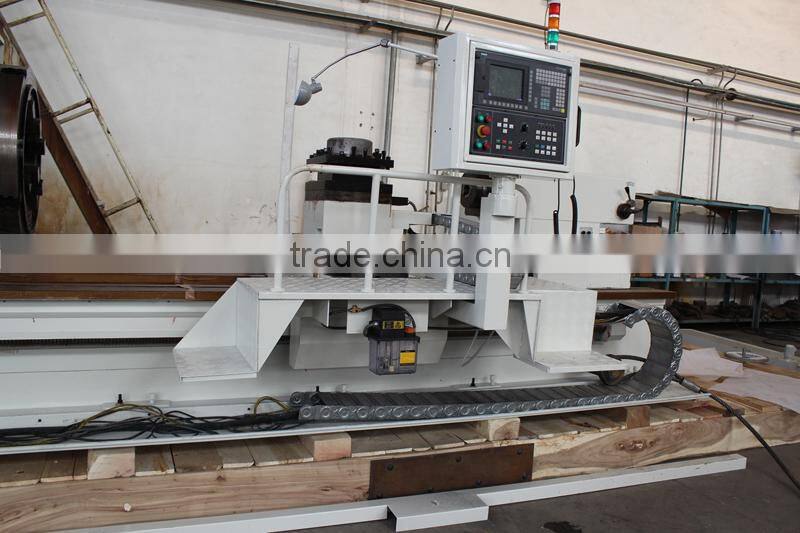

   1.  CNC Controller: FANUC 0i TD or Siemens SINUMERIK 828D,

   2.   X/Z-axis feeding driver servo motor: FANUC or SIMENS

   3.   A.C servo spinde speed with 4 steps and stepless within per step

   4.   Bed:  integral box structure, adopts high performance cast iron (HT300) processed by second aging;

         Guideway surface with medium frequency quencying and precision ground by imported guideway grinder.

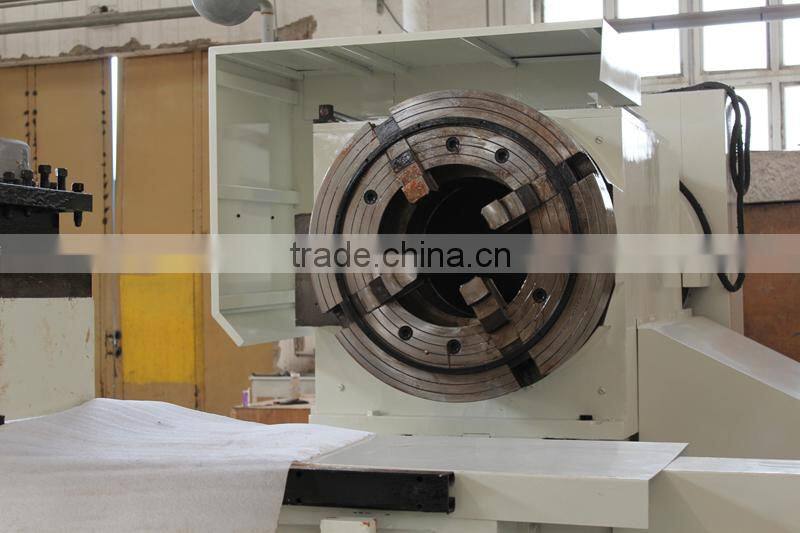

   5.   Φ 1000mm 4- jaw independent chuck (front & rear): Wafangdian ()

   6.   4-station electric tool post: Yasun ()

   7.   X/Y-axis ball screw pair: Hanjiang ()

   8.   Spindle bearing: Wafangdian ()

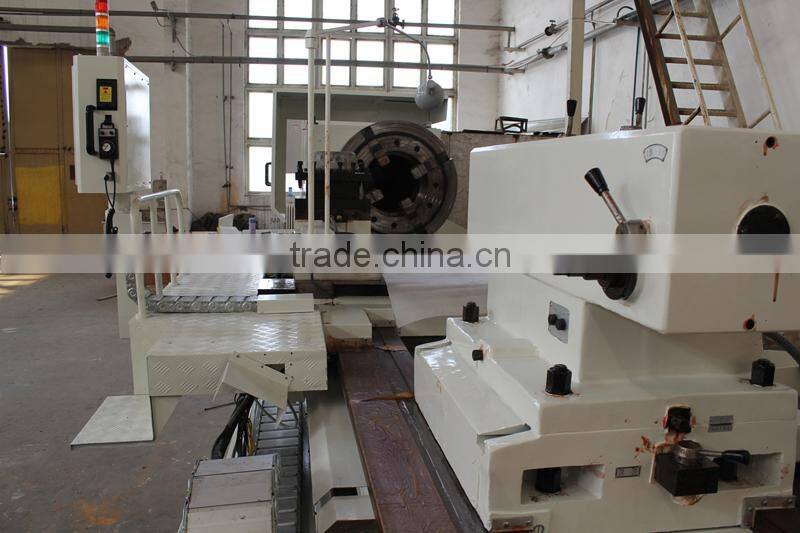

   9.   Electric moving tailstock

   10. Auto. lubrication: China-Japan joint, Liubian ()

   11. Dynamic precision test and offset: RENISHAW laser detector, UK

   13.  Voltage: 380V, 3-phase, 50HZ (or as clients' need)





    ***Optional Configuration & Extra Costs:

    1.  Fagor 8055i CNC system

    2. Hydraulic 4-Jaw chuck

    3. Hydraulic tailstock (for sleeve move)

    4. 6 or 8 station electric toolpost

    5. Steady rest (50-425mm)

    6. Follow rest (50-220mm):

    7. Out board support bracket (50mm-425mm) for long pipe

    8. Auto bar feeder



18" CNC Oil Country Lathe QK-460A

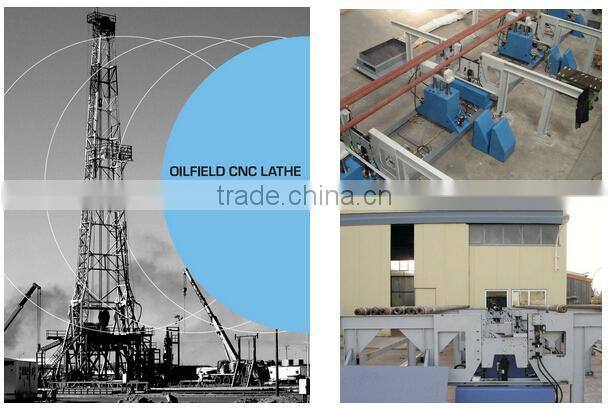

                             * Automic bar feeder production line





18" CNC Oil Country Lathe QK-460A  18" CNC Oil Country Lathe QK-460A



18" CNC Oil Country Lathe QK-460A 18" CNC Oil Country Lathe QK-460A



18" CNC Oil Country Lathe QK-460A 18" CNC Oil Country Lathe QK-460A
