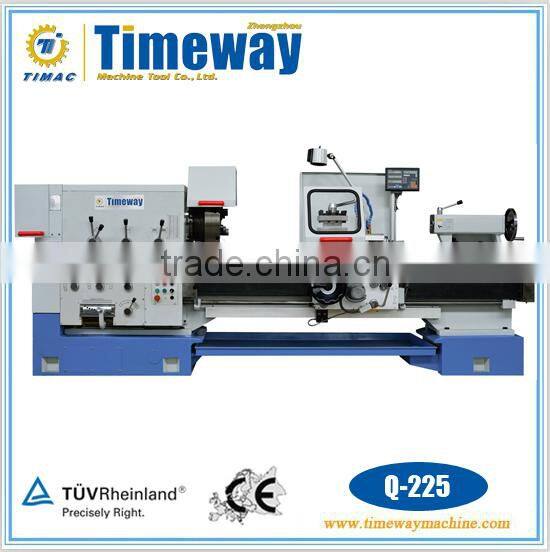

225MM Pipe Threading Lathe Q-225
Feature:
• The oil country lathes are used for turning pipe threads, inside and outside.
• They can be used to make external circles, holes and end surfaces of shafts or discs as general machine tools.
• Massive headstock with precision spindle running in tapered roller bearings, 2 lathe chuck mounts on both sides
• High torque at the working spindle ensures high chip removal rates when machining parts with large diameters.
• Heavy machine bed made of premium cast-iron with hardened and ground guideways.
• Central, practical controls for feeds and thread leads.
• Wide spectrum of inch and metric threads.
• Gears are hardened and ground.
• Heavy-duty 4-station tool holder.
• Coolant system is included.
Parameter:
| SPECIFICATION | Q-130 | Q-200 | Q-225 | Q-270 | Q-330 | Q-440 |
| Width of bed | 490mm | 490mm | 490mm | 750mm | 750mm | 750mm |
| Max.swing over bed | 630 mm | 630 mm | 630mm | 1000 mm | 1000mm | 1000 mm |
| Max.swing over carriage | 350mm | 350mm | 350mm | 610 | 610mm | 610 |
| Max.outer diameter of pipe | 126 mm | 193 mm | 220 | 260 mm | 320 | 426 mm |
| Distance between centers | 1500/3000mm | 1500/3000mm | 1500/3000mm | 1500/3000mm | 1500/3000mm | 1500/3000 mm |
| Spindle bore | 130 mm | 200mm | 225mm | 270 mm | 330mm | 440 mm |
| Spindle speed steps | 18 steps | 12 steps | 12 steps | 12 steps | 12 steps | 9 steps |
| Spindle speed range | 12~640 r/min | 24~460 r/min | 24~460 r/min | 16~380 r/min | 16~380 r/min | 4.9~180 r/min |
| Inch threads (T.P.I) | 28~2 (40 kinds) | 28~2 (40 kinds) | 28~2 (40 kinds) | 4~12 (6 kinds) | 22~2 (22 kinds) | 24~2 (17 kinds) |
| Metrical threads (mm) | 1~14 (24 kinds) | 1~14 (24 kinds) | 1~14 (24 kinds) | 2~8 (4kinds) | 1~30 (30kinds) | 1~12 (16kinds) |
| Main motor power | 11kw | 11kw | 11kw | 18.5kw | 22kw | 22 kw |
| Max.turning length of taper turning | 500 mm | 500 mm | 500mm | 1000 mm | 1000mm | 1000 mm |
| Rapad travel speed | 6000mm/min | 6000mm/min | 6000mm/min | 6000mm/min | 6000mm/min | 6000mm/min |
| Workpiece accuracy | IT7 | IT7 | IT7 | IT7 | IT7 | IT7 |
| Surface roughness | Ra1.6 | Ra1.6 | Ra1.6 | Ra1.6 | Ra1.6 | Ra1.6 |

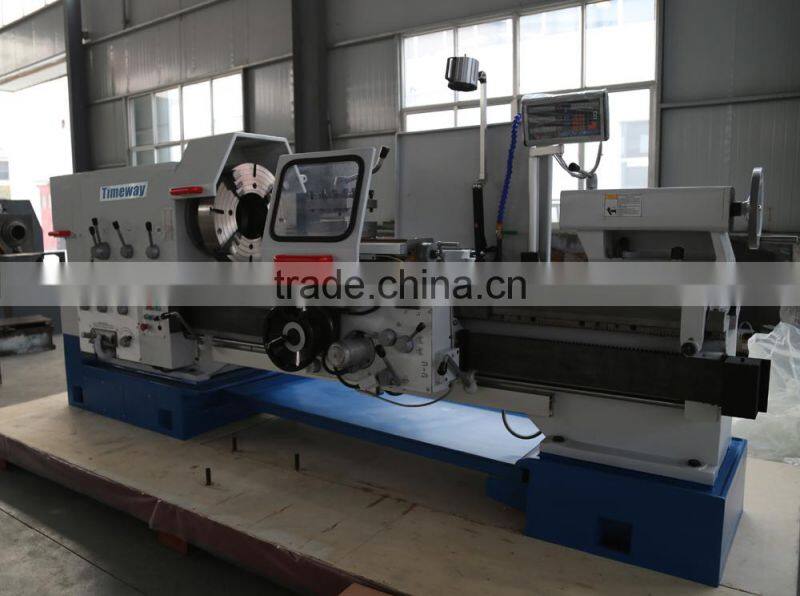

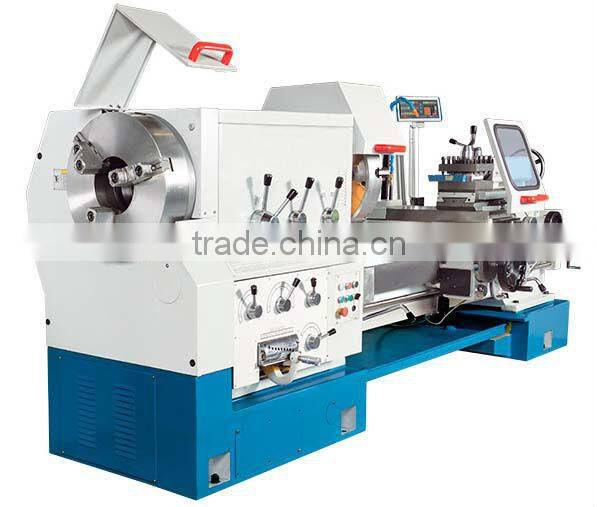

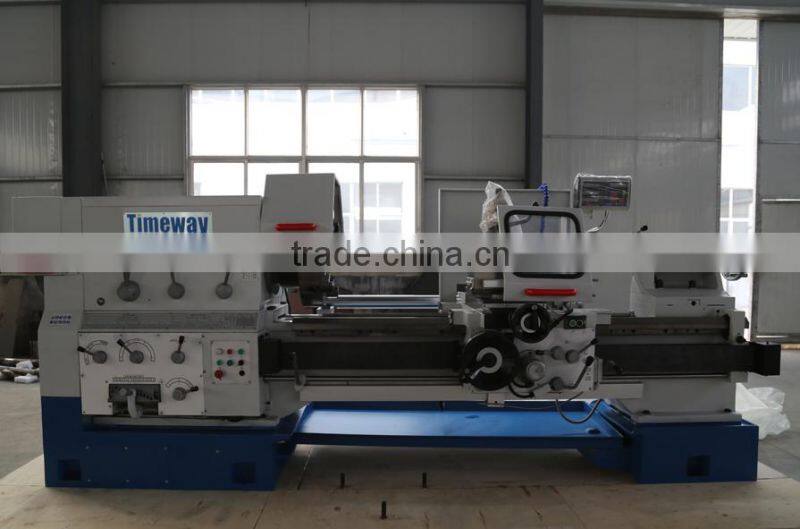

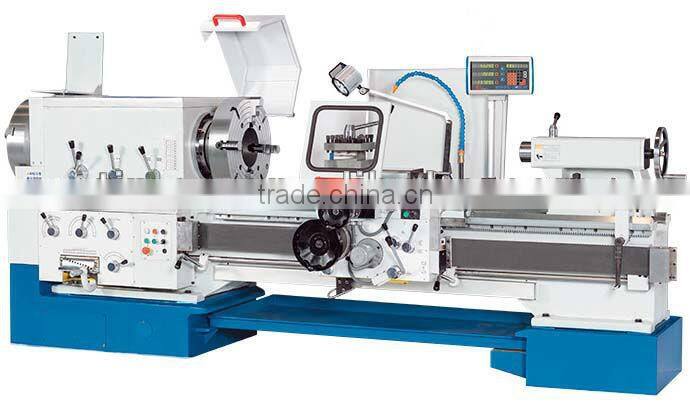

More machine Photos:
If you have any queries please give us a
call or send us a message.
We will be happy to assist you!
