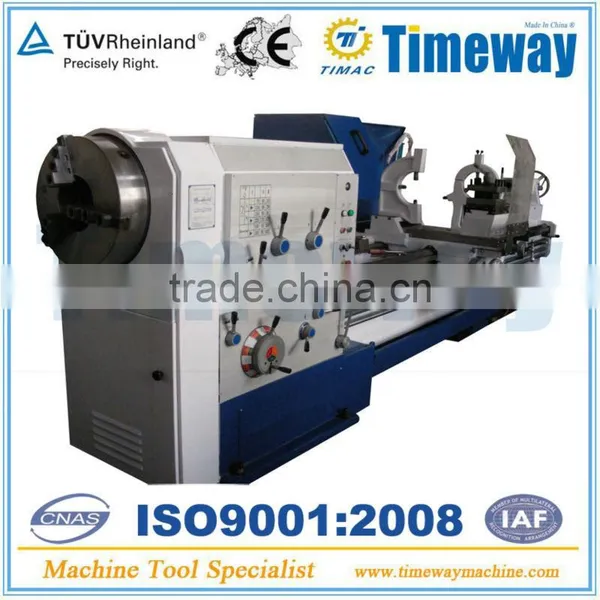

Large Bore 225mm Pipe Thread Lathe, Oil Pipe Threading Lathe(Oil Country Lathe) Q-210

Large Bore 225mm Pipe Thread Lathe, Oil Pipe Threading Lathe(Oil Country Lathe) Q-210 thumbnail-1
Large Bore 225mm Pipe Thread Lathe, Oil Pipe Threading Lathe(Oil Country Lathe) Q-210 photo-1
US$ 35,850 - 55,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Horizontal
CNC or Not:
Normal
Contact Supplier Request Quote Chat Now
Zhengzhou Timeway Machine Tool Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Horizontal
CNC or Not Normal
Automatic Grade Semi-Automatic
Max. Swing Diameter 840mm
Place of Origin Henan, China
Brand Name TIMAC, TIMEWAY
Model Number Q-210
Voltage 220V/380V/400V
Certification ISO, CE, SGS, TUV
After-sales Service Provided Engineers available to service machinery overseas

Specifications

1. Oil Field Lathe
2. Double chuck Lathe
3. 225mm large spindle bore
4. 3000mm pipe threading lathe;
5. Oil Country Lathe



Oil Country Lathe - Pipe Thread Turning Lathe

     (225mm large spindle bore)

Features:
1. It can machine many kinds pipe threads, also can machine the taper threads with the taper attachment and the support.
2.The integral bed ensuring the rigidity of the lathe and the guide-ways are medium-frequency hardened to ensure the long working life.
3.The spindle applies the double-chuck structure.

Specification Unit Q-210
Max. swing over bed mm 840
Max. outer diameter of pipe mm 210
Max. swing over carriage mm 560
Max. length of work piece mm 1500/3000/4000/5000/6000
Max. turning length mm 1350/2850/3850/4850/5850
Diameter of spindle through hole mm 225
Type of spindle nose   C type flange connect
Range of spindle speed rpm 12 steps, 45~572rpm
Morse taper of center sleeve   MT6
Kinds, range of longitudinal feed mm/r 32 kinds 0.1-1.5
Kind, range of transverse feed mm/r 32 kinds, 0.05-0.75
Pitch of leadscrew   12
Kinds, range of metrical thread mm  22 kinds 1-15
Kinds, range of inch-system thread t.p.i 28kinds 15-1
Kinds, range of modular thread mm 21 kinds 0.5-7.5
Kinds, range of pitch thread D.P 20 kinds 28-2
Diameter of tailstock sleeve mm 100
Morse taper of sleeve   MT6
Max. travel of sleeve mm 300
Max. travel of top slide mm 240
Max. travel of cross slide mm 500
Double-speed motor power kw 9/11
Double-speed motor speed r/min 1000/1500
Rapid-travel motor power kw 1.1
Rapid-travel motor speed r/min 1350
Cooling pump power kw 0.125
Cooling motor flow L/min 22
Gear pump pressure Mpa 2.5
Gear pump flow L/min 6
Gear pump speed r/min 1450
Net weight kg 3515/5000/5800/6500/7200
Overall dimension Length mm 3515/5015/6160/7160/8160
Width mm 1395
Height mm 1650

Packaging & Shipping



Wooden case(can be fumigated) or Pallet

Large bore 225mm Pipe Thread Lathe, Oil Pipe Threading Lathe(Oil Country Lathe) Q-210


Our Services



1. Free replacing parts available in the warranty period.

    Cost price replacing parts available beyond the warranty period.

2. Quick action and reply for the technical questions at any time in the whole life of the machine.

3. Overseas after service center available in some region.

4. Engineer overseas service available on the requirement of customer(relative cost born by customer).


Company Information



ISO, CE, TUV, SGS certified company.

Large bore 225mm Pipe Thread Lathe, Oil Pipe Threading Lathe(Oil Country Lathe) Q-210


FAQ

* Trade terms: FOB, CFR, CIF, EXW, FCA price terms is acceptable.

* Payment terms: T/T, L/C, Western Union payment terms is acceptable.

* Delivery time: Normal delivery time: 45days, 60days, 75days, 90days....(vary as the machine's different size and complexible)

* Warranty period: 12monthes after delivery.  (Within the warranty period, if there is any problem not caused by wrong operation, we will supply you the replacing parts for free. Even beyond the period, we will still supply the replacing parts with cost price).
