Specifications
1. CNC Hydraulic guillotine shear2. Different shearing size
3. Steel welded structure
4. Triple support rolling guide rail

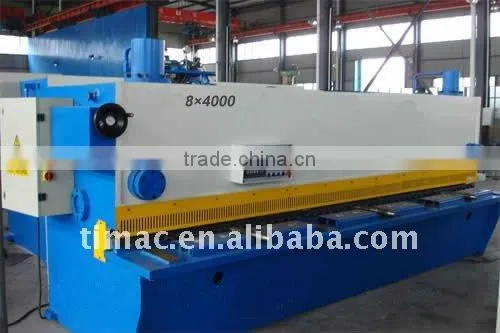

CNC Hydraulic Guillotine Shearing Machine
Features:
1. The entire machine is in fully steel welded structure, with stress eliminated by vibration aging technology, typical of excellent rigidity and stability.
2. Integrated hydraulic transmission system, with good reliability.
3. Triple support rolling guide raikl to eliminate gaps of support and enhance shearing quality.
4. Mechanical rear stopper with manual fine tuning, and digital indication.
5. Clearance between shearing blades adjusted by hand wheel, quick, accurate and convenient.
6. Rectangular blades with four cutting edges to prolong working life, adjustable shearing angle to reduce deformation of the sheet.
7. Upper blade holder has inward tiling structure to facilitate material feed in and also enhance accuarcy of the workpiece.
8. Function of shearing in sections, and aligning with light.
9. Optional rear material holding device.
Specification |
Shearing size |
Strokes |
Backgauge range |
Shearing angle |
Working table Height |
Motor power |
(TxW) mm |
min-1 |
mm |
° |
mm |
kw |
|
CGS-6x2500 |
6x2500 |
10-35 |
20-600 |
0.5-2.5° |
800 |
7.5 |
CGS-6x3200 |
6x3200 |
8-35 |
20-600 |
0.5-2.5° |
800 |
7.5 |
CGS-6x4000 |
6x4000 |
7-35 |
20-600 |
0.5-2.5° |
800 |
7.5 |
CGS-6x5000 |
6x5000 |
6-25 |
20-600 |
0.5-2.5° |
900 |
11 |
CGS-6x6000 |
6x6000 |
5-25 |
20-600 |
0.5-2.5° |
1000 |
11 |
CGS-8x2500 |
8x2500 |
10-35 |
20-600 |
0.5-2.5° |
800 |
11 |
CGS-8x3200 |
8x3200 |
8-35 |
20-600 |
0.5-2.5° |
850 |
11 |
CGS-8x4000 |
8x4000 |
7-35 |
20-600 |
0.5-2.5° |
900 |
11 |
CGS-8x5000 |
8x5000 |
6-25 |
20-600 |
0.5-2° |
1000 |
15 |
CGS-8x6000 |
8x6000 |
5-25 |
20-600 |
0.5-2° |
1050 |
15 |
CGS-12x2500 |
12x2500 |
10-35 |
20-800 |
0.5-2.5° |
840 |
18.5 |
CGS-12x3200 |
12x3200 |
6-20 |
20-800 |
0.5-2.5° |
900 |
18.5 |
CGS-12x4000 |
12x4000 |
6-20 |
20-800 |
0.5-2.5° |
940 |
18.5 |
CGS-12x5000 |
12x5000 |
5-15 |
20-800 |
0.5-2.5° |
1000 |
18.5 |
CGS-12x6000 |
12x6000 |
6-15 |
20-800 |
0.5-2.5° |
1060 |
30 |
