Hydraulic Angle Cutting Machine
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
TIMAC
Model Number:
TAC-4X200, TAC-6X200
Payment & Shipping
Payment Methods:
Port of Shipment:
China port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Power Shearing Machine PS-6x2500US$ 1,200 - 9,980MOQ: 1 Set -
3-IN-1 Manual Combination of Shear, Brake & Roll MachineNegotiableMOQ: 10 Sets
-
Electric 3-IN-1 Combination of Shear, Brake and Roll MachineNegotiableMOQ: 5 Sets
-
" 4mm Thickness x 3200 Width " CNC Swing Beam ShearsUS$ 6,000 - 15,000MOQ: 1 Set
-
Mechanical Iron WorkerUS$ 9,990 - 19,990MOQ: 1 Set
Brand Name
TIMAC
Model Number
TAC-4X200, TAC-6X200
Specifications

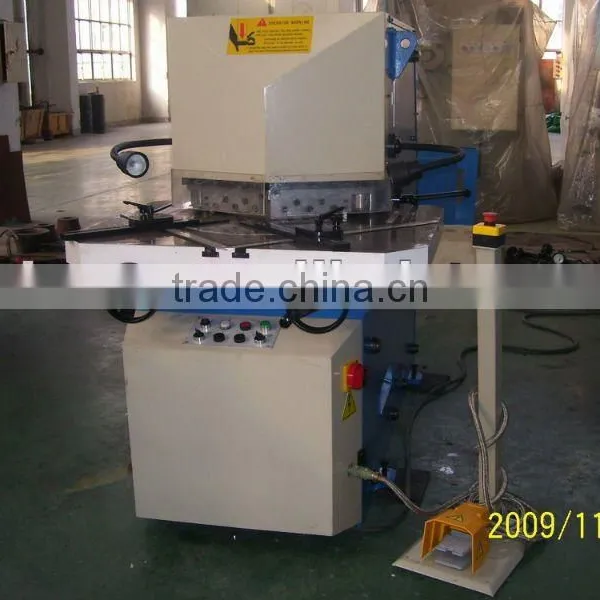

ANGLE CUTTING MACHINEHydraulic variable-angle shear
ANGLE CUTTING MACHINE
* High-rigidity & precisely machined steel welded machine frame which stress is removed by vibration process.
* Hydraulic variable-angle shear, The large range for adjustment cutting angle, the adjust fast speed for hand wheel.
| Model | Unit | TAC-4x200 | TAC-6x200 |
| Shear size | mm | 4(A3), 2(SS) | 6(A3), 3(SS) |
| Shear length | mm | 200 | 200 |
| Adjustment of cutting angle | 60°-135°, 30°-135° | 60°-135°, 30°-135° | |
| Shear number | time/min | 40 | 30 |
| Size of working table | mm | 1000x800 | 1000x800 |
| Main power | kw | 4 | 5.5 |
| Dimension (LxWxH) | mm | 1850x1200x1650 | 2150x1200x1650 |
| Weight | kg | 1600 | 2100 |
