Home > Manufacturing & Processing Machinery > Laser Equipment > Laser Cutting Machine > (CNC) Hydraulic Swing Beam Shearing Machine

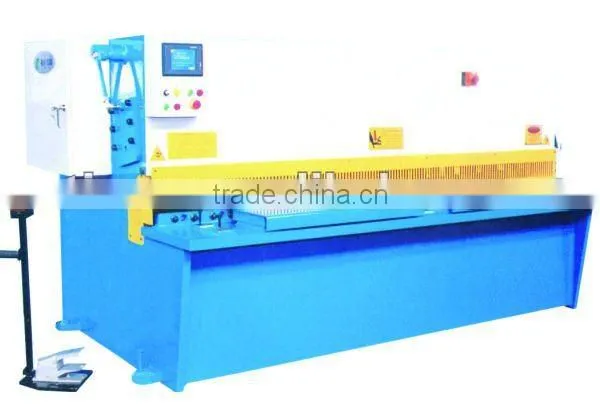

(CNC) Hydraulic Swing Beam Shearing Machine
US$ 9,990 - 99,990
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
TIMAC
Model Number:
HSS-6x2500, HSS-8x3200, CSS-12x3200, CSS-20x4000, ......
Payment & Shipping
Payment Methods:
Port of Shipment:
China port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hydraulic Angle Cutting MachineNegotiableMOQ: 1 Set -
Power Shearing Machine PS-6x2500US$ 1,200 - 9,980MOQ: 1 Set
-
3-IN-1 Manual Combination of Shear, Brake & Roll MachineNegotiableMOQ: 10 Sets
-
Electric 3-IN-1 Combination of Shear, Brake and Roll MachineNegotiableMOQ: 5 Sets
-
" 4mm Thickness x 3200 Width " CNC Swing Beam ShearsUS$ 6,000 - 15,000MOQ: 1 Set
Brand Name
TIMAC
Model Number
HSS-6x2500, HSS-8x3200, CSS-12x3200, CSS-20x4000, ......
Hydraulic Swing Beam Shearing Machine
CNC Hydraulic Swing Beam Shearing Machine
* The frame adopts whole steel welded construction, which the internal stress is eliminated by vibration and heat treatment process.
* It is adopted hydraulic driving, hold-down force will change according to the shearing force.
* The machine is equipped with a power-driven back-gaugeand manual fine-adjustment device, the numeral value can be displayed by a counter on operation panel.
* The position of the back-gauge can be automatically adjusted by CNC controller.
* The fast-adjusting mechanism for blade clearance.
* The shadow light device convenient for lineation cutting operation.
* Steel ball working table.
* Safety guards which meet the safety norms.
| Model | Shear size | Shearing angle | Strokes | Adjustment range | Motot power |
| mm | (°) | time/min | mm | kw | |
| 4x3200 | 4x3200 | 1°30′ | 18 | 20-600 | 5.5 |
| 6x2500 | 6x2500 | 1°30′ | 18 | 20-600 | 7.5 |
| 6x3200 | 6x3200 | 1°30′ | 14 | 20-600 | 7.5 |
| 6x4000 | 6x4000 | 1°30′ | 14 | 20-600 | 7.5 |
| 6x5000 | 6x5000 | 1°30′ | 10 | 20-800 | 11 |
| 6x6000 | 6x6000 | 1°30′ | 8 | 20-800 | 11 |
| 8x2500 | 8x2500 | 1°30′ | 16 | 20-600 | 11 |
| 8x3200 | 8x3200 | 1°30′ | 12 | 20-600 | 11 |
| 8x4000 | 8x4000 | 1°30′ | 10 | 20-600 | 11 |
| 8x5000 | 8x5000 | 1°30′ | 8 | 20-600 | 15 |
| 8x6000 | 8x6000 | 1°30′ | 7 | 20-600 | 15 |
| 10x2500 | 10x2500 | 1°30′ | 14 | 20-800 | 15 |
| 10x3200 | 10x3200 | 1°30′ | 12 | 20-800 | 15 |
| 10x4000 | 10x4000 | 1°30′ | 12 | 20-800 | 15 |
| 12x2500 | 12x2500 | 1°30′ | 16 | 20-800 | 18.5 |
| 12x3200 | 12x3200 | 1°30′ | 14 | 20-800 | 18.5 |
| 12x4000 | 12x4000 | 1°30′ | 14 | 20-800 | 18.5 |
| 12x5000 | 12x5000 | 1°30′ | 7 | 20-800 | 22 |
| 12x6000 | 12x6000 | 1°30′ | 6 | 20-800 | 22 |
| 12x8000 | 12x8000 | 1°30′ | 5 | 20-800 | 22 |
| 16x2500 | 16x2500 | 2° | 14 | 20-800 | 22 |
| 16x3200 | 16x3200 | 2° | 12 | 20-800 | 22 |
| 16x4000 | 16x4000 | 2° | 8 | 20-800 | 22 |
| 20x2500 | 20x2500 | 2°30′ | 5 | 20-800 | 30 |
| 20x3200 | 20x3200 | 2°30′ | 5 | 20-800 | 30 |
| 20x4000 | 20x4000 | 2°30′ | 5 | 20-800 | 30 |
| 25x2500 | 25x2500 | 2°30′ | 6 | 20-800 | 37 |
| 25x3200 | 25x3200 | 2°30′ | 6 | 20-800 | 37 |
| 25x4000 | 25x4000 | 2°30′ | 6 | 20-800 | 37 |
| 32x2500 | 32x2500 | 3° | 5 | 20-800 | 37 |
| 32x3200 | 32x3200 | 3° | 5 | 20-800 | 37 |
| 40x2500 | 40x2500 | 3° | 5 | 20-800 | 45 |
| 40x3200 | 40x3200 | 3° | 5 | 20-800 | 45 |
| 50x3000 | 50x3000 | 3° | 5 | 20-800 | 90x3 |
| 50x6000 | 50x6000 | 3° | 5 | 20-800 | 90x4 |
| 60x3500 | 60x3500 | 3°30′ | 5 | 20-800 | 90x5 |
