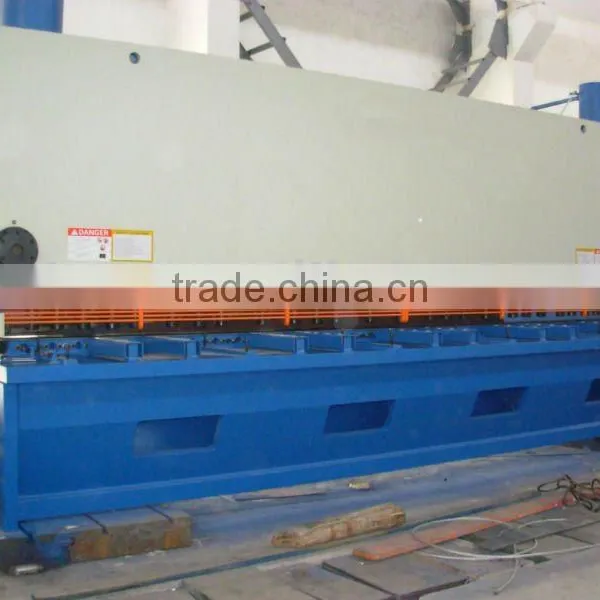

CNC Hydraulic Guillotine Shearing Machine

Name: CNC Hydraulic Guillotine Shearing Machine
Brand: TIMAC
SKU: 140797978
Availability: InStock

Zhengzhou Timeway Machine Tool Co., Ltd.

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Henan, China

Brand Name:

TIMAC

Model Number:

CGS-20x7100

Payment & Shipping

Payment Methods:

Port of Shipment:

China Port

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Henan, China

Brand Name TIMAC

Model Number CGS-20x7100

Condition New

Specifications

1.CNC hydraulic guillotine shearing machine;
2.DELEM DAC350 NC system;
3.Steel-welded mechanism;
4.Shearing thickness:1-20mm;

CNC Hydraulic Guillotine Shearing Machine

Features:

1. Adopts steel-welded mechanism, hydraulic transmission ensuring the stable perfomance;

2. Small volume, light weight, good rigidity and low noise.

3. The machine has front gauge and back gauge, it is convenient to adjust the blade gap.

4. With DELEM DAC350 NC system.

5. With protctive guard ensuring the safe operation.

Specification	Unit	CGS-20×7100
Max. shearing thickness	mm	20
Max. shearing width	mm	7100
Shearing sheet intensity	N/mm²	450
Shearing angle		1.5-3°
Strokes	min-1	3
Distance between uprights	mm	7360
Blade length	mm	7200
Working table height	mm	1200
Backgauge stroke range	mm	20-1000
Main motor power	KW	55
Gear pump flow	L/min	120
Max. working pressure of hydraulic system	Mpa	25
Over dimensions (LxWxH)	mm	7600x3600x3500
