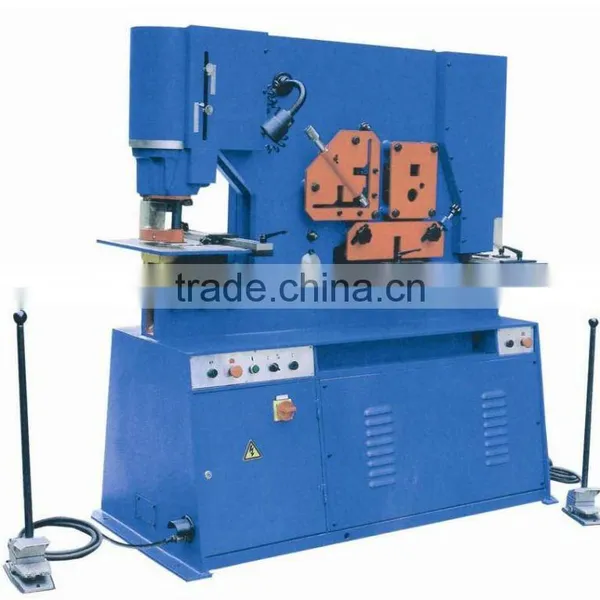

Hydraulic Iron Worker Q35Y-25

Name: Hydraulic Iron Worker Q35Y-25
Brand: TIMAC
SKU: 140797984
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

CNC or Not:

Normal

Power Source:

Hydraulic

Zhengzhou Timeway Machine Tool Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China Port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

CNC or Not Normal

Power Source Hydraulic

Place of Origin Henan, China

Brand Name TIMAC

Model Number Q35Y-16 Q35Y-20 Q35Y-25 Q35Y-30

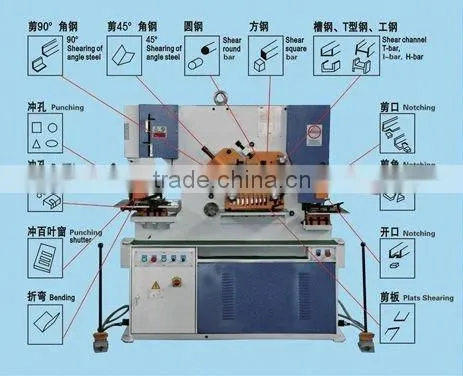

HYDRAULIC IRON WORKER

Model		Q35Y-16	Q35Y-20	Q35Y-25	Q35Y-30
Punching	Rated capacity	550KN	750KN	1100KN	1400KN
	Dia.xThickness	25x16(1x0.64)	30X20(1.2X0.8)	35x25(1.4x1)	38x26(1.52x1.04)
	Throat depth	300(12)	355(14.2)	400(16)	600(24)
	Max. stroke length	80(3.2)	80(3.2)	80(3.2)	80(3.2)
	Speed-3/4inch travel	48(24cycles)	48(24cycles)	48(24cycles)	56(25cycles)
	Flang punch	6	6	6	6
	Max. flat bear thickness	16x250(0.64x10)	20x300(1x13.2)	25x330(1x13.2)	30x355(1.2x14.2)
Shearing	Max. flat bar width	8x400(0.32x16)	10x480(0.4x19.2)	16x600(0.64x24)	20x60090.8x24)
	Blade length	410(16.4)	485(19.4)	610(24.4)	610(24.4)
	Blade Angle	7°	8°	8°	8°
Angle cutting	Equal angle shearing 45°	70x8(2.8x0.32)	70x10(2.8x0.4)	80x8(3.2x0.32)	80x10(3.8x0.4)
Angle cutting	T-bar 90°	125x12(5x0.48)	140x12(5.6x0.48)	160x14(6.4x0.56)	180x16(7.2x0.64)
Section cutting	Square bar LxL	40x40(1.6x1.6)	50x50(2x2)	50x50(2x2)	55x55(2.2x2.2)
Section cutting	Round bar diameter	45(1.8)	50(2)	60(2.4)	65(2.6)
Notching	Thickness	10(0.4)	13(0.52)	14(0.56)	16(0.64)
	Width	50(2)	52(2.08)	55(2.2)	60(2.4)
	Depth	100(4)	100(4)	100(4)	100(4)
Others	Motor power	4kw	5.5kw	7.5kw	11kw
	motor speed	1440r/min	960r/min	1440r.min	1440r.min
	Machine dimensions	1640x750x1770	1860x900x1900	2090x960x2355	2300x1040x2680
	Machine dimensions	(65.6x30x70.8)	(74x36x76)	(83.6x38.4x94.2)	(92x41.6x107.2)
	Weight(N/G)	1600/1800kg	2200/2600kg	4800/5500kg	6800/7800kg
Special ACC.	Channel model	12	16	20	28
	Joist model	12	16	20	28
	Capacity for mold max. bending	500x4(20x0.16)	500x4(20x0.16)	600x4(24x0.16)	600x4(24x0.16)
