Specifications
Con-Rod Boring Machine1.Boring dia.:16-100mm
2.CE norms.

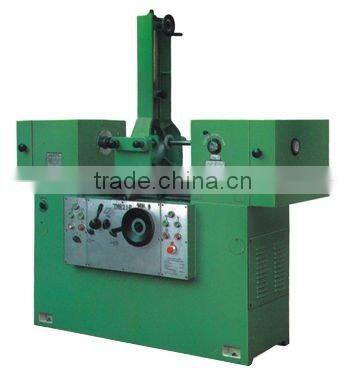

20-160mm Boring Dia./ Con-Rod Boring Machine / TM8216
Features:
1. This machine is mainly applied to bore and grind bearing holes (including copper quill and connecting-rod tile)on connecting-rod of gasoline and diesel engine in automobile,tractor and other power sources.
2. Customer also can carry out fine boring or grinding process to connecting-rod bearing seat of deformed workpiece, after grinding combining surface, to ecsure the parallism of tow center lines.
3. Equipped with various specialiged fixture, TM8216 can be used to complete fine boring and grinding process to piston pin hole, gas pump bearing hole and valve seat hole etc.
Parameter:
Specification | TM8216 |
Range of hole diameter to be bored | Φ20-Φ160mm |
Range of hole diameter to be grinded | Φ30-Φ160mm |
Distance between 2 holes center of rod | 80-650mm |
Distance between center of boring and grinding bar to the worktable | 270mm |
Longitudinal travel of worktable | 450mm |
Boring head motor | 0.55/0.75kw |
Grinding head rotation/revolution motor | 0.55/0.37kw |
Hydraulic system motor | 0.55kw |
Overall dimensions | 1700x1300x1800mm |
Packing dimensions | 2250x1120x1660mm |
N.W./G.W. | 1300/1500kg |
