Brake Drum Lathe / Brake Disc Lathe C9350
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
TIMAC
Model Number:
C9350
Payment & Shipping
Payment Methods:
Port of Shipment:
China Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
C9372 Brake Drum Lathe / Disc Brake Lathe MachineNegotiableMOQ: 1 Set -
Cylinder Boring Machine T808A, T809AUS$ 500 - 1,999MOQ: 5 Sets
-
Cylinder Body and Head Surface Grinding Milling Machine 3M9730US$ 1,999 - 60,000MOQ: 1 Set
-
Brake Drum Lathe T8465 / Disc Cutting Machine / Car Brake LatheUS$ 1,000 - 2,500MOQ: 1 Set
-
TQZ8560 Air Float Auto Centering Gas Valve Seat Boring MachineUS$ 5,000 - 19,000MOQ: 1 Set
Place of Origin
Henan, China
Brand Name
TIMAC
Model Number
C9350
Condition
New
Specifications
1. Brake lathe;2. Cutting drum & rotor;
3. 3kinds of spindle speed;
4. Spindle travel 175mm;

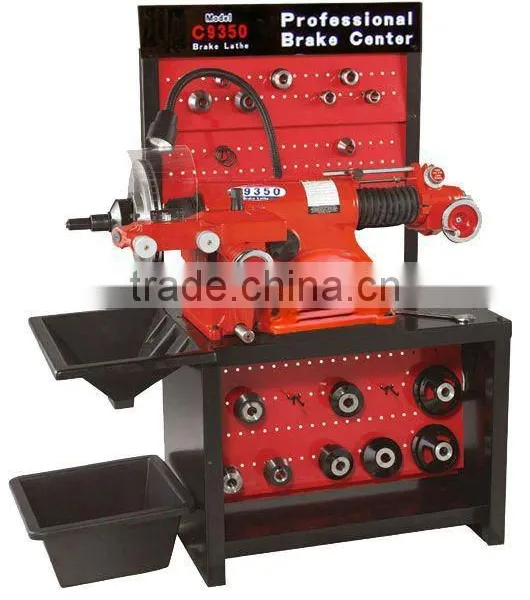

Drum and Disc Brake Lathe C9350
Features:
1. Quickly, accurately and efficiently to cutting rotor.
2. Fast and slow setting allow cutting rotor.
3. Quickly, accurately and efficiently to cutting drum.
4. Finitely adjustably setting allow cutting drum.
5. Three kinds of speed 70,88,118 rpm to choose for spindle speed.
6. A convenient design allows to quickly change from rotor to drum, with cross feed extension plate will be increase the maximum rotor diameter to 22’/588mm.
7. Position of stop make the lathe stop automatically after cutting.

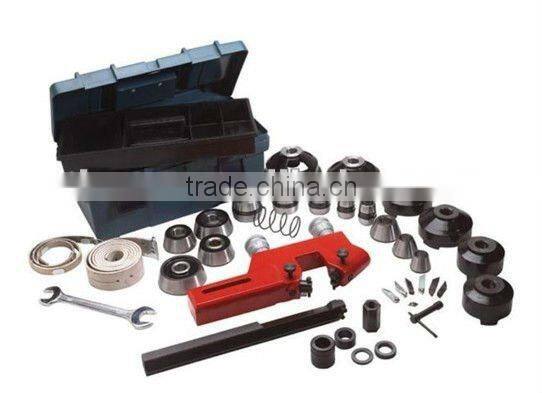

8. Fully equipped with adapter package.
| Specification | C9350 | C9350C | C9370 | C9370C |
| Spindle Travel | 6-7/8” (175mm) | 9.875" (251mm) | ||
| Spindle speed | 70,88,118 rpm | 70,88,118 rpm | ||
| Spindle feed speed | 0.002"-0.02" (0.05-0.5mm)Rev | - | 0.002"-0.02" (0.05-0.5mm)Rev | - |
| Cross feed speed | 0.002"-0.02" (0.05-0.5mm)Rev | - | 0.002"-0.01" (0.05-0.25mm)Rev | - |
| Handwheel graduations | 0.002"(0.05mm) | - | 0.002"(0.05mm) | - |
| Rotor diameter | 7" -15" (180mm-381mm) | 7" -18" (180mm-457mm) | ||
| Rotor thickness | 1-7/8” (48mm) | 4" (102mm) | ||
| Drum diameter | 6" -28" (152mm-711mm) | 6" -28" (152mm-711mm) | ||
| Drum depth | 6-7/8" (175mm) | 9.875" (251mm) | ||
| Motor | 110V/220V/380V,50/60HZ | 110V/220V/380V,50/60HZ | ||
| Gross weight | 290 kg | 400 kg | ||
| Dimension (L×W×H) | 970×920×1140mm | 1100mm ×1070mm×1140mm | ||
