Specifications
Cylinder Block Grinding & Milling Machine1.Processing length:1000mm
2.Processing width:350mm
3.Processing height:600mm

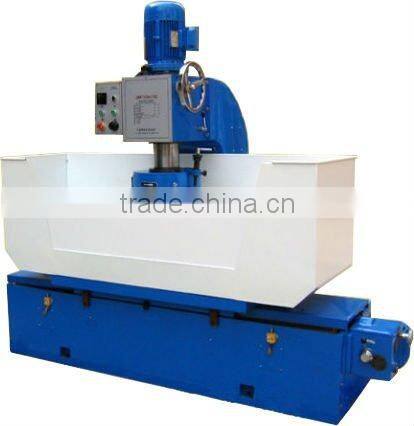

1000mm Processing Length / Cylinder Block Grinding & Milling Machine / 3M9735A
Features:
Cylinder Block Grinding & Milling Machine
1. The machine is mainly used for grinding and milling the connecting surface between cylinder body and cylinder cover of every engine (of automobiles, tractors, tanks and ships).
2. Because of the engine be used for long, the connecting surface of cylinder body and cylinder cover would transmute and the engine will working off normal.
3. Working accuracy can be achieved that the connecting surface of cylinder body and cylinder cover be ground or milled.
4. The machine can also grinding the surface of other parts if the electromagnetic chuck be equipped.
5. The machine adopt (1400/700r/min) two-speed motor 1400r/min be used to grind the surface of cylinder body or cylinder cover, which be made by cast-iron material. And 700r/min be used to milled the surface which be made by aluminium material. Emery wheel feeding is manual. Emery wheel feed 0.02mm during hand wheel rotate 1 lattice. Pulley adopt with unloading to make the main spindle only usutain twisting moment.
6. The machine tool working table selects and uses the Y801-4 electric motor drive by rotating, on host face ply, the potentiometer whorl twists and to gain right feed speed, easy to operate reliable.
Parameter:
| Specification | 3M9735Ax130 | 3M9735Ax150 |
| Working table size | 1300x500mm | 1500x500 mm |
| Max. length of grinding | 1300 mm | 1500 mm |
| Max. width of grinding | 350 mm | 350 mm |
| Max height of grinding | 600 mm | 800 mm |
| Vertical moving distance of grinding head | 120 mm | 120 mm |
| Transverse moving speed of working table | 40-900 mm/min | 30-900 mm/min |
| Grinding wheel disk diameter | 360 mm | 360 mm |
| Spindle speed | 1400/700 r/min | 1400/700 r/min |
| Electric motor power cooling down | 0.4 Kw | 0.4 Kw |
| Power of the main motor | 1.5/2.4 kw | 1.5/2.4kw |
| Overall dimensions(LxWxH) | 2650x1050x2100 mm | 2800x1050x2100 mm |
| Packing dimensions(LxWxH) | 2980x1150x2200 mm | 3200x1150x2280 mm |
| N.W. / G.W. | 2800 / 3100 kg | 3000 / 3300 kg |

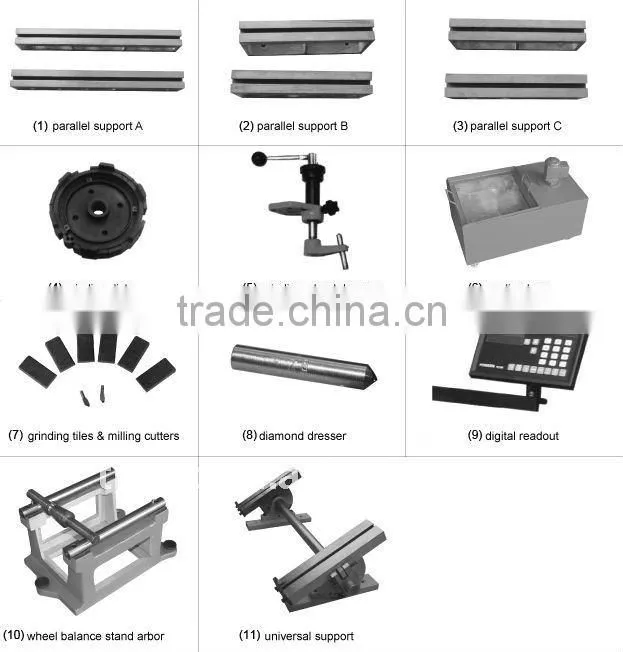

Accessories:
| Model | Standard Accessories | Optional Accessories |
| 3M9735A | 1,2,3,4,5,6,7,10 | 8,9,11 |
