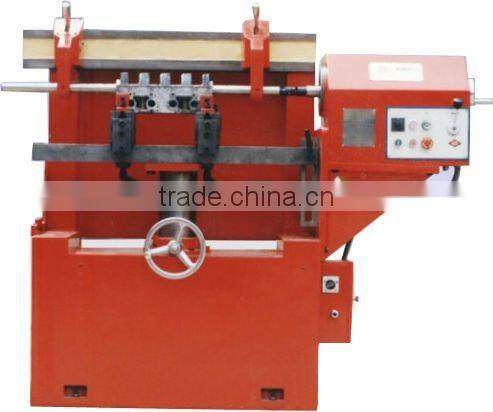

24-85mm Boring Dia./ Line Boring Machine For Cylinder Heads & Blocks / T8108

Name: 24-85mm Boring Dia./ Line Boring Machine For Cylinder Heads & Blocks / T8108
Brand: TIMAC
SKU: 140797234
Availability: InStock

Zhengzhou Timeway Machine Tool Co., Ltd.

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

CNC or Not:

Normal

Brand Name:

TIMAC

Payment & Shipping

Payment Methods:

Port of Shipment:

China Port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

CNC or Not Normal

Brand Name TIMAC

Model Number T8108

Specifications

Line Boring Machine For Cylinder Heads & Blocks
1.Boring dia.:24-85mm
2.Boring shaft feed:Stepless
3.CE norms.

24-85mm Boring Dia./ Line Boring Machine For Cylinder Heads & Blocks / T8108

Features:

Line Boring Machine For Cylinder Heads & Blocks
1. Line boring machine T8108 is a small size machine which, however, has a wide range of application.

2. Though it has been specially designed for reconditioning the seat of cylinder head camshafts with through of blind axis.

3. It can also be used for reconditioning the seat of cylinder block crankshafts in cars and light-weight trucks.

4. The machine is sturdy, compact and allows accurate machining.

Parameter:

Specification	T8108
Boring range	Φ24-Φ85 mm
Max.travel of shaft	100 mm
Max.boring length	Φ20 x 900 mm
Max.boring length	Φ32 x 980 mm
Main shaft rotating speed	245, 380 rpm
Boring shaft feed	Stepless
Distance between cylinder fixture and boring shaft center	45-295mm
Motor power	0.55/0.75 Kw
Overall dimensions ( L×W×H)	1620×700×1370 mm
Packing dimensions (L×W×H)	1740×920×1700 mm
N.W./G.W.	600/750 kg
