Specifications
Vertical Cylinder Honing Machine1.Honing dia.:170mm
2.Spindle speed:100-300 r.p.m(stepless)
3.CE norms.

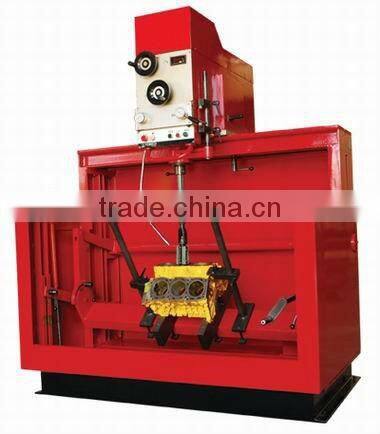

40~170mm Honing Dia./ Vertical Cylinder Honing Machine / THM170
Features:
1. Hydraulic vertical honing machine with head provided with pneumatic system for an easy honing spindle longitudinal and transversal positioning on the workpiece.
2. The block supporting base is adjustable in the height and inclination to allow the assembling of flat and "V"blocks.
3. Honing spindle with steplessly variable ratation speed visualized on the control panel.
Parameter:
Specification |
Unit |
THM170 |
Max. dia. of the hole honed |
mm |
φ170 |
Max. depth of the hole honed |
mm |
360 |
Spindle speed(stepless) |
r.p.m |
100-300 |
Roundness |
mm |
0.0025 |
Cylindricity |
mm |
0.005 |
Surface roughness |
Ra0.2 |
|
Table longitudinal travel |
mm |
1100 |
Table cross travel |
mm |
80 |
Table max. loading |
kg |
200 |
Main motor |
kw |
1.1 |
Hydraulic station motor |
kw |
1.5 |
Coolant pump motor |
w |
90 |
Spindle reciprocation speed(stepless) |
m/min |
0-18 |
Overall dimensions(LxWxH) |
mm |
1820x1440x2170 |
Packing dimensions(LxWxH) |
mm |
2210x1610x2270 |
N.W/G.W |
kg |
1200/1400 |
