"170mm Boring Dia." Vertical Boring Machine T170A
- China Port
- T/T Credit Card PayPal
You May Like
Product Details
| Condition | New | CNC or Not | Normal | |
| Brand Name | TIMAC | Model Number | T7220B |
Product Description
Specifications
Vertical Boring Machine1. Boring dia.: 170mm;
2. Boring depth: 400m

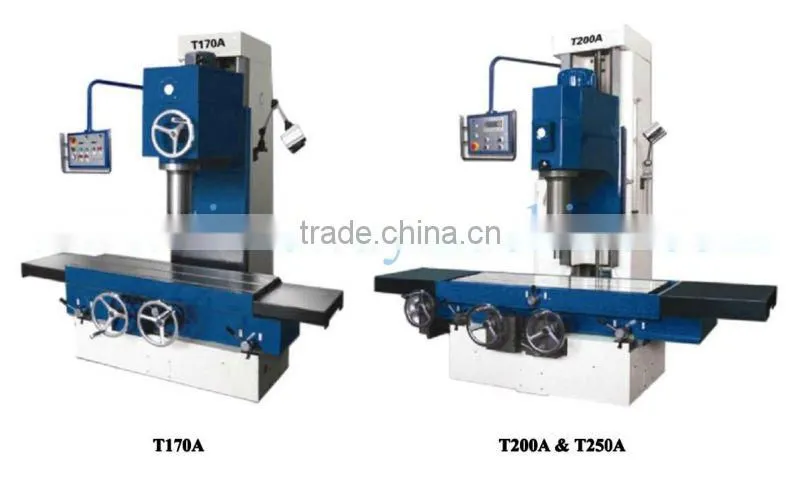

Vertical Boring Machine ( T170A )
Feature:
This serial model can be widely used in boring automobile engine cylinders, cylinder sleeves of diesel engines and compressors, as well as various high precision holes boring.
Parameter:
Specification | T170A | T200A | T250A | |
Max. boring diameter | Φ170 mm | Φ200mm | Φ250 mm | |
Max. boring depth | 400 mm | 500 mm | 500 mm | |
Max. drilling & reaming diameter | Φ30 mm | |||
Spindle speed | 120-860 r/min | |||
Feeding of the spindle | 14-900 mm/min | |||
Rapid moving speed of the spindle | 1000 mm | |||
Spindle travel | 700 mm | |||
Distance between spindle end face and table | 0-700 mm | |||
Distance between spindle axis and carriage vertical plane | 375 mm | |||
Max longitudinal travel of working table | 1500 mm | |||
Max cross travel of the working table | 200 mm | |||
Working table size (W×L) | 500×1250 mm | 500×1500 mm | ||
Quantity of “T” Slot | 5 qua. | |||
Main motor | 5.5 Kw | |||
Boring precision | Dimension Precision | H7 | ||
Boring roughness | Ra 2.5 | |||
Overall dimensions (L×W×H) | 2600×1630×2300 mm | |||
Packing dimensions (L×W×H) | 2250×1900×2280 mm | |||
N.W./G.W. | 3300/3600 kg | 3500/3800 kg | ||
OEM Program: Brand & Logo, Color & Vlotage can be appointed by you.
Delivery time: 60 days or so.
Packing : In wooden cases (Can be fumigated )
Payment terms: T/T with 30% down payment.
Warranty period: 1 year after delivery.
Spares & Technology Support Services
Choose "TIMEWAY MACHINE" is your right choice !!!
