Help Center"250mm Boring Dia." Vertical Boring Machine T250A
Related Products
-
Gas Valve Seat Boring Machine T8560US$ 5,000 - 15,000MOQ: 1 Set -
Gas Valve Seat Boring Machine T8590A & T8590BUS$ 5,000 - 9,900MOQ: 1 Set
-
Gas Valve Seat Boring MachineUS$ 3,500 - 15,980MOQ: 1 Set
-
20~90mm Boring Dia./ Stepless Gas Valve Seat Boring Machine / T8590BUS$ 3,500 - 15,980MOQ: 1 Set
-
Cylinder Boring Machine T8014A, T8016ANegotiableMOQ: 1 Set
Specifications
Vertical Boring Machine1. Boring dia.: 250mm;
2. Boring depth: 500m

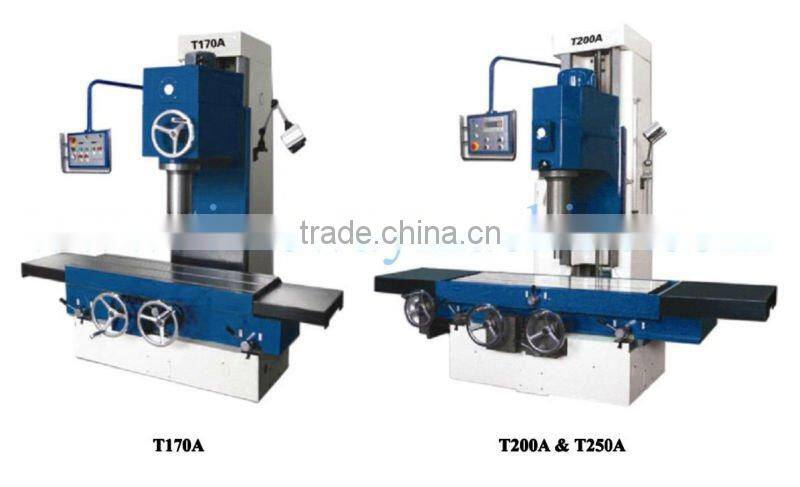

Vertical Boring Machine ( T250A )
Feature:
This serial model can be widely used in boring automobile engine cylinders, cylinder sleeves of diesel engines and compressors, as well as various high precision holes boring.
Parameter:
Specification |
T170A |
T200A |
T250A |
|
Max. boring diameter |
Φ170 mm |
Φ200mm |
Φ250 mm |
|
Max. boring depth |
400 mm |
500 mm |
500 mm |
|
Max. drilling & reaming diameter |
Φ30 mm |
|||
Spindle speed |
120-860 r/min |
|||
Feeding of the spindle |
14-900 mm/min |
|||
Rapid moving speed of the spindle |
1000 mm |
|||
Spindle travel |
700 mm |
|||
Distance between spindle end face and table |
0-700 mm |
|||
|
Distance between spindle axis and carriage vertical plane |
375 mm |
|||
Max longitudinal travel of working table |
1500 mm |
|||
Max cross travel of the working table |
200 mm |
|||
Working table size (W×L) |
500×1250 mm |
500×1500 mm |
||
Quantity of “T” Slot |
5 qua. |
|||
Main motor |
5.5 Kw |
|||
Boring precision |
Dimension Precision |
H7 |
||
Boring roughness |
Ra 2.5 |
|||
Overall dimensions (L×W×H) |
2600×1630×2300 mm |
|||
Packing dimensions (L×W×H) |
2250×1900×2280 mm |
|||
N.W./G.W. |
3300/3600 kg |
3500/3800 kg |
||
OEM Program: Brand & Logo, Color & Vlotage can be appointed by you.
Delivery time: 60 days or so.
Packing : In wooden cases (Can be fumigated )
Payment terms: T/T with 30% down payment.
Warranty period: 1 year after delivery.
Spares & Technology Support Services
Choose "TIMEWAY MACHINE" is your right choice !!!
