Specifications
1. Gas valve seat boring machine;2. Boring scope 20-60mm;

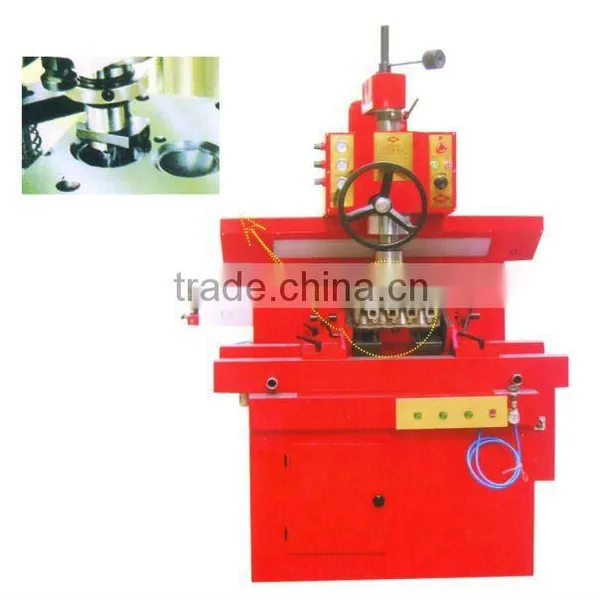

GAS VALVE SEAT BORING MACHINE T8560
*The machine tool is special equipment for repairing and boring the seat retainer hole of engine valve.
*The boring head case body and main shaft adopt the progressive flotation technology with the features of immediacy exact centering, reliable repairing boring quality, handiness and high operation efficiency.
*It can process various cylinder covers and multi-angular valve seat retainer holes.
Features:
1. Smooth movement of boring head case body, agile swing of main shaft and fast exact positioning.
2. Turning jig, pneumatic locking & handiness.
3. Multi-specification form cutter and setting spindle with wide applicability.
4. Vacuum detection system for fast detection.
5. Special tool sharpener to be convenience for regrinding cutter.
6. Carry out transformation of conduit hole after mounting drill & reamer.
Specification |
T8560 |
Scope of boring valve seat retainer |
φ20~φ60mm |
Max. overall dimension of processing cylinder cover(LxWxH) |
1000x300x150mm |
600x200x220mm | |
Speed adjustable range of main shaft |
40~420r/min |
Vertical movement travel of main shaft |
185mm |
Max. swing angle of main shaft |
±6° |
Main shaft conic hole |
Morse 4(M.T.4) |
Movement range of boring head case body |
Transverse: -25mm~+25mm |
Transverse: 800mm | |
Back and forth turn angle of jig body |
±30° |
Electric total power |
2.5kw |
Requirement of air supply |
0.7Mpa 150L/min |
Net weight |
1400kg |
Overall dimension(LxWxH) |
1600x1100x2290 |
