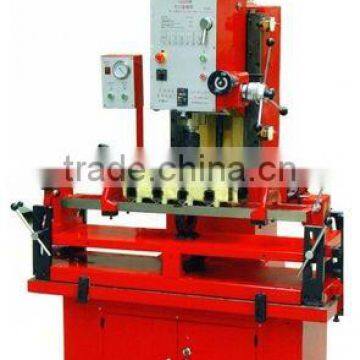

Gas Valve Seat Boring Machine T8590A & T8590B

Name: Gas Valve Seat Boring Machine T8590A & T8590B
Brand: TIMAC
SKU: 140797194
Availability: InStock

US$ 5,000 - 9,900 MOQ: 1 Set

Key Specifications

Place of Origin:

Henan, China

Brand Name:

TIMAC

Model Number:

T8590A T8590B

Zhengzhou Timeway Machine Tool Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China Port

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Henan, China

Brand Name TIMAC

Model Number T8590A T8590B

Condition New

Specifications

1. Gas valve seat boring machine;
2. Boring dia. 20-90mm;

GAS VALVE SEAT BORING MACHINE T8590A & T8590B

Features:

1. The machine tool suits the needs of various cylinder cover for every engine.

2. It can manufacture the gas valve seats hole for cylinder cover with various angles.

3. When equipped with boring-drilling tools, it can bore, drill, ream the pipe seats hole for gas valve or repair it.

4. It's adopted floating worktable and adjustable special clamps, easy operation and high precision.

5. It can be widely used with many knives and Positioning Mandrel.

6. Equipped with vacuum test equipment, It’s rapid-checking and non-pollution.

7. Equipped with cutter grinder, it has long use life and cost-saving.

Specification		T8590A	T8590B
Boring dia.		φ20mm-φ90mm
Spindle speed range		55,85,210,320,370,550rpm	30-550(stepless)
Spindle travel		180mm
Distance from spindle axis to guideway surface		270mm
Max. distance from end ofspindle to working table		750mm
Moving speed of machine head		512mm/min
Moving range of machine head	Cross	120mm
	Longitudinally	860mm
Main motor power		1.1/0.85kw 1400/950rpm
Overall dimension(LxWxH)		1300x800x1930mm
Packing dimension(LxWxH)		1700x1100x2000mm
N.W/G.W		1200/140kg
