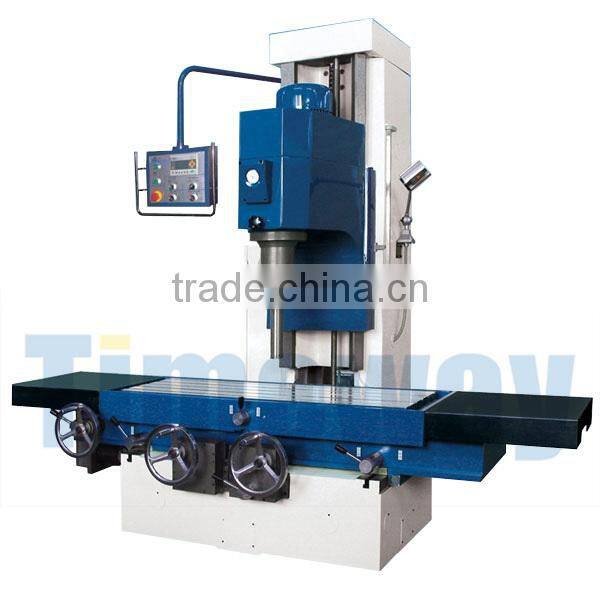

Automobile Engine Cylinder Block Boring Machine / Vertical Fine Boring Machine T170A, T200A, T250A

Automobile Engine Cylinder Block Boring Machine / Vertical Fine Boring Machine T170A, T200A, T250A thumbnail-1
Automobile Engine Cylinder Block Boring Machine / Vertical Fine Boring Machine T170A, T200A, T250A photo-1
US$ 8,800 - 16,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
TIMAC
Model Number:
T170A ,T200A, T250A
Contact Supplier Request Quote Chat Now
Zhengzhou Timeway Machine Tool Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Henan, China
Brand Name TIMAC
Model Number T170A ,T200A, T250A
Condition New
After-sales Service Provided Engineers available to service machinery overseas

Specifications

1. Vertical cylinder boring machine;
2. Engine block boring machine
3. Boring dia. 170/200/250mm;
4. Boring depth: 400/500mm;

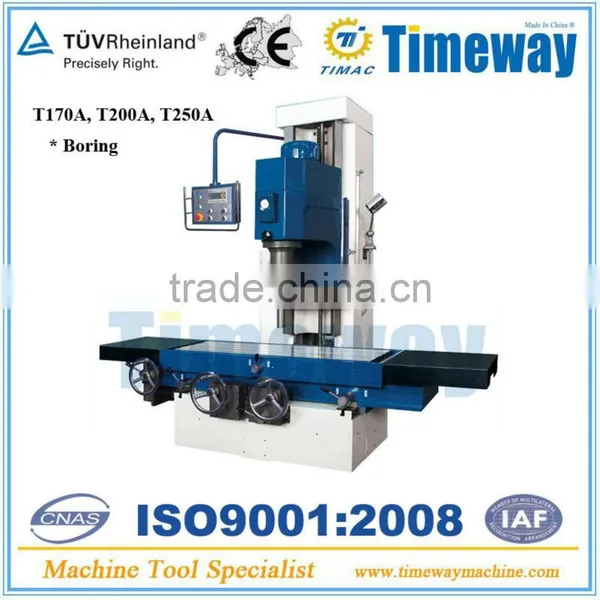

Vertical Fine Boring Machine





* Model: T170A, T200A, T250A;

Automobile Engine Cylinder Block Boring Machine / Vertical Fine Boring Machine T170A, T200A, T250A



* Related Machines:

    Vertical Boring Machine: T170S;
    Vertical Boring Milling Machine: TX170A, TX200A, TX250A;
    Vertical Boring Milling Grinding Machine: TXM170A, TXM200A, TXM250A;



* Features:

This serial model can be widely used in boring automobile engine cylinders, cylinder sleeves of diesel engines and compressors, as well as various high precision holes boring.



Specification Unit T170A T200A T250A
Max. boring diameter mm Φ170 Φ200 Φ250
Max. boring depth mm 400 500 500
Max. grinding area mm -
Max. milling area mm -
Max. drilling & reaming diameter mm Φ30
Spindle speed rpm 120-860
Feeding of the spindle mm/min 14-900
Rapid moving speed of the spindle mm/min 1000
Spindle travel mm  700
Distance between spindle end face and table mm 0-700
Distance between spindle axis and carriage vertical plane mm 350
Longitudinal feeding of work table mm/min -
Longitudinal rapid moving of work table mm/min -
Max. longitudinal travel of working table mm 1500
Max. cross travel of the working table mm 200
Working table size (W×L) mm 500x1250 500x1500
Quantity of “T” Slot qty. 5
Main motor kw 3
Boring holes precision   H7
Working accuracy Roundness mm 0.005
Cylidricity 0.01/300
Milling flatness -
Grinding flatness -
Working surface roughness Boring μm Ra2.5
Milling -
Grinding -
Overall dimensions (L×W×H) mm 2600x1630x2300
Packing dimensions (L×W×H) mm 2250x1900x2270
N.W./G.W. kg 3300/3600 3500/3800





Accessories:

Automobile Engine Cylinder Block Boring Machine / Vertical Fine Boring Machine T170A, T200A, T250A
