Brake Drum Disc Lathe / Brake Lathe
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Other
CNC or Not:
Normal
Payment & Shipping
Payment Methods:
Port of Shipment:
China Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
TX90 Valve Seat Boring Machine Made in ChinaNegotiableMOQ: 1 Set -
Cylinder Block Grinding & Milling Machine 3M9730NegotiableMOQ: 1 Set
-
Cylinder Block Grinding & Milling Machine 3M9735Bx130 3M9735Bx150NegotiableMOQ: 1 Set
-
Valve Seat Boring Machine TQZ8560NegotiableMOQ: 1 Set
-
Valve Seat Boring Machine T8590A T8590BNegotiableMOQ: 1 Set
Condition
New
Type
Other
CNC or Not
Normal
Brand Name
TIMAC
Model Number

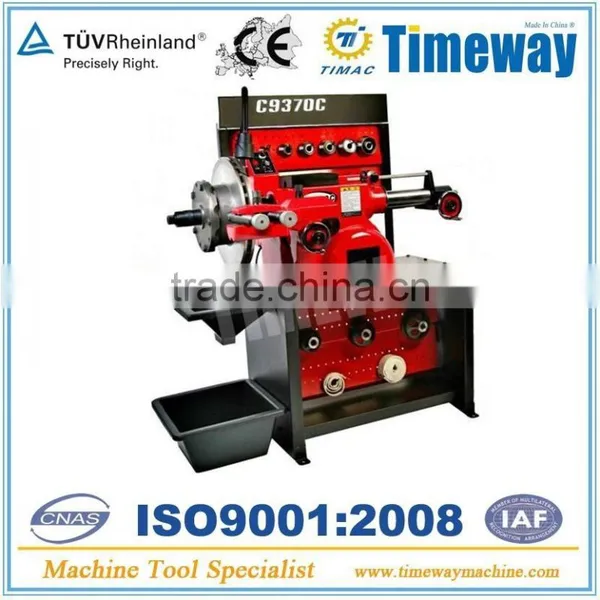

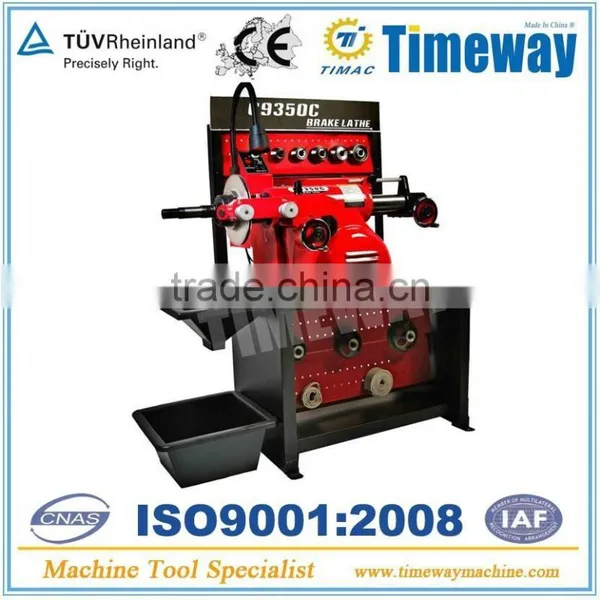

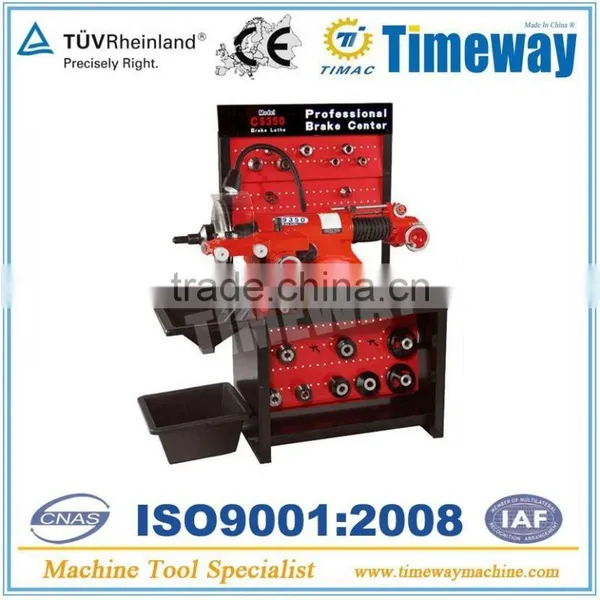

C9350, C9350C, C9370, C9370C
Voltage
as customer's request
Power(W)
depends on different models
Dimension(L*W*H)
970*920*1140mm
Weight
290 kg
Certification
CE & ISO9001
After-sales Service Provided
Engineers available to service machinery overseas
Brake Drum Lathe / Brake Lathe
Product Description
Features:
1. Quickly, accurately and efficiently to cutting rotor.
2. Fast and slow setting allow cutting rotor.
3. Quickly, accurately and efficiently to cutting drum.
4. Finitely adjustably setting allow cutting drum.
5. Three kinds of speed 70,88,118 rpm to choose for spindle speed.
6. A convenient design allows to quickly change from rotor to drum, with cross feed extension plate will be increase
the maximum rotor diameter to 22’/588mm.
7. Position of stop make the lathe stop automatically after cutting.
8. Fully equipped with adapter package.
Parameter:
| Specification | C9350 | C9350C | C9370 | C9370C | C9372 |
| Spindle Travel | 6-7/8” (175mm) | 9.875" (251mm) | 9″/229mm | ||
| Spindle speed | 70,88,118 rpm | 70,88,118 rpm | 70-320RPM | ||
| Spindle feed speed | 0.002"-0.02" (0.05-0.5mm)Rev | 0.002"-0.02" (0.05-0.5mm)Rev |
Rotor and drum feed rates 0-0.66mm |
||
| Cross feed speed | 0.002"-0.02" (0.05-0.5mm)Rev | 0.002"-0.01" (0.05-0.25mm)Rev | |||
| Handwheel graduations | 0.002"(0.05mm) | 0.002"(0.05mm) | |||
| Rotor diameter | 7" -15" (180mm-381mm) | 7" -18" (180mm-457mm) | 4″/102mm-24″/610mm | ||
| Rotor thickness | 1-7/8” (48mm) | 4" (102mm) | 2.85"/73mm | ||
| Drum diameter | 6" -28" (152mm-711mm) | 6" -28" (152mm-711mm) | 6″/152mm-28″/711mm | ||
| Drum depth | 6-7/8" (175mm) | 9.875" (251mm) | 9″/229mm | ||
| Motor | 110V/220V/380V,50/60HZ | 110V/220V/380V,50/60HZ | 110V/220V, 50/60HZ | ||
| Gross weight | 290 kg | 400 kg | 300kg | ||
| Dimension (L×W×H) | 970×920×1140mm | 1100mm ×1070mm×1140mm | 1130×720×750mm | ||
