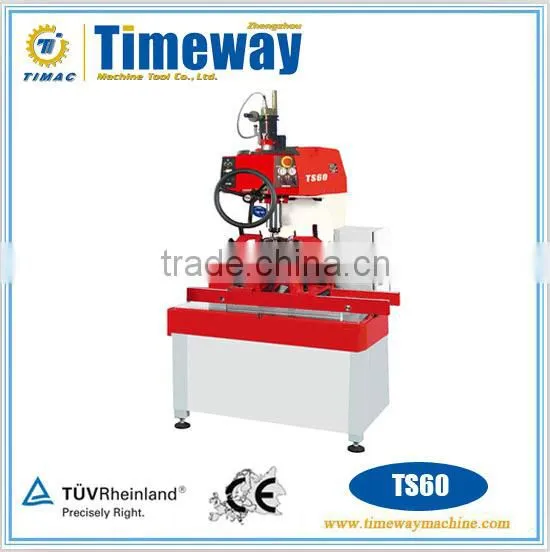

Valve Seat Boring Machine TS60
Features:
High precision valve seat and valve guide cutting machine especially designed for multi-valve cylinder heads. Patented workhead with triple air-float patented centering system and built-in spindle motor. TS60 is high precision machine featuring the latest technology incorporating air -float automatic centering and motorspindle. Air-floated table fixture can make the movement of workpiece more flexible. Especially developed for the repair of small motorcycle and automotive multivalve cylinder heads.
* Fitted with the new tooling that decreases the cutting force by 30%, this machine will cut the hardest seats.
* Machine bed structure optimized by static and dynamic calculation, with a functional design.
* Machining capacity from 0.551" / 14mm to 2.36" / 60mm.
* Fully integrated spindle motor: infinitely variable spindle speed,0 to 1000 r.p.m., with sensorless Vector
* Flux Control in open loop (Extremely broad torque ratings from lowest r.p.m.).
* Rigid, low-inertia workhead. Easy to use due to an automatic reset system.
* Air-floated table fixture with 400mm lengthwise and 40mm crosswise travel.
Parameter:
Specification |
Unit |
TS60 |
Max.length of the cylinder head |
mm/inch |
600/23.62 |
Max.width of the cylinder head |
mm/inch |
400/15.75 |
Max.height of the cylinder head |
mm/inch |
450/15.72 |
Crosswise tilting of workpiece |
degree |
+42 to -15 |
Machining dia.(min.-max.) |
mm |
16-60 |
inch |
0.63-1.57 |
|
Displacement of workhead |
mm/inch |
8/0.32 |
Travel of worktable |
|
|
Lengthwise |
mm/inch |
400/15.75 |
Crosswise |
mm/inch |
8/3.15 |
Spindle |
|
|
Max.spindle inclination |
degree |
5 |
Travel of spindle |
mm/inch |
200/8 |
Power of spindle |
kw |
1.8 |
Rotation speed of spindle |
rpm |
0-1000 |
Power supply |
|
380V-AC-3Ph-50Hz / 220V-AC-3Ph-60Hz |
Max.air supply |
bar/psi |
6/87 |
Max.air flow |
1/min/CFM |
300/11 |
Level of noise at 4000RPM |
dba |
72 |
Level of noise at 1200RPM |
dba |
82 |
Net weight (approx.) |
kg/1bs |
600/1320 |
Machine demension(L×W×H) |
mm |
1400×900×2000 |
Standard Accessories:
Bit holder, Tool Holder, Pilot, Bits, Tool setting device, Sharpener, Clamping system
Optional Accessories:
TD-ER20SW spanner wrench, TD-ER20SC spring collet, T3200 adaptor for morse,
T3100 precision chuck with MT2 shank, TD-ER20CN ER-32 clamping nut
