Motorcycle Vertical Cylinder Boring Milling Machine
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
TIMAC
Model Number:
TX170A TX200A TX250A
Payment & Shipping
Payment Methods:
Port of Shipment:
China Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Automobile Engine Cylinder Block Boring Machine / Vertical Fine Boring Machine T170A, T200A, T250AUS$ 8,800 - 16,000MOQ: 1 Set -
Vertical Cylinder Honing Machine 3MB9817NegotiableMOQ: 1 Set
-
Precision Valve Seat Boring Machine TL120NegotiableMOQ: 1 Set
-
Valve Seat Boring Machine TS60NegotiableMOQ: 1 Set
-
Engine's Valve and Valve Seat Vaccum Tester ZJ45NegotiableMOQ: 1 Set
Place of Origin
Henan, China
Brand Name
TIMAC
Model Number
TX170A TX200A TX250A
Condition
New
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
1. Vertical boring milling machine;2. Boring dia. 170/200/250mm;
3. Boring depth: 400/500mm;
4. Milling area: 400X1000mm;

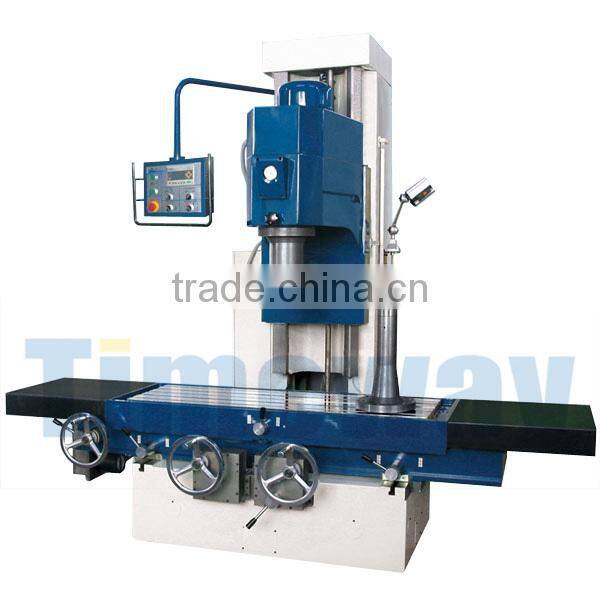

Vertical Boring Milling Machine

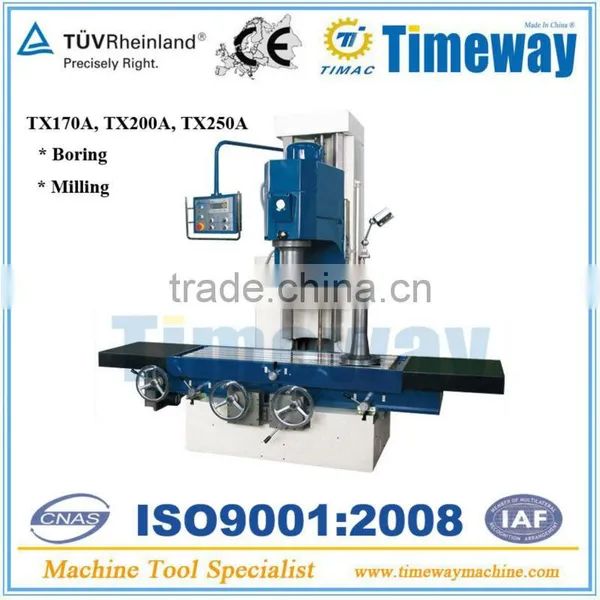

* Model: TX170A, TX200A, TX250A
* Related Machines:
Vertical Boring Machine: T170S, and T170A, T200A, T250A;
Vertical Boring Milling Grinding Machine: TXM170A, TXM200A, TXM250A;
* Features:
This serial model of Vertical Boring Milling Machine can be widely used in boring automobile engine cylinders, cylinder sleeves of diesel engines and compressors, as well as various high precision holes boring, surface milling of other workpieces.
| Specification | TX170A | TX200A | TX250A | |
| Max. boring diameter | Φ170 mm | Φ200 mm | Φ250 mm | |
| Max. boring depth | 400 mm | 500 mm | 500 mm | |
| Max. milling area | 400x1000 mm | |||
| Max. drilling & reaming diameter | Φ30 mm | |||
| Spindle speed | 120-860 r/min | |||
| Feeding of the spindle | 14-900 mm/min | |||
| Rapid moving speed of the spindle | 1000 mm/min | |||
| Spindle travel | 700 mm | |||
| Distance between spindle end face and table | 0-700 mm | |||
| Distance between spindle axis and carriage vertical plane | 375 mm | |||
| Feed of work table longitudinal | 32-1350 mm/min | |||
| Rapid moving speed of the table longitudinal travel | 32-1350 mm/min | |||
| Max longitudinal travel of working table | 1500 mm | |||
| Max cross travel of the working table | 200 mm | |||
| Working table size (W×L) | 500×1250 mm | 500×1500 mm | ||
| Main motor | 5.5 Kw | |||
| Processing roughness | Boring | Ra 2.5 | ||
| Milling | Ra 3.2 | |||
| Overall dimensions (L×W×H) | 2600×1630×2300 mm | |||
| Packing dimensions (L×W×H) | 2250×1900×2280 mm | |||
| N.W./G.W. | 3300/3600 kg | 3500/3800 kg | ||

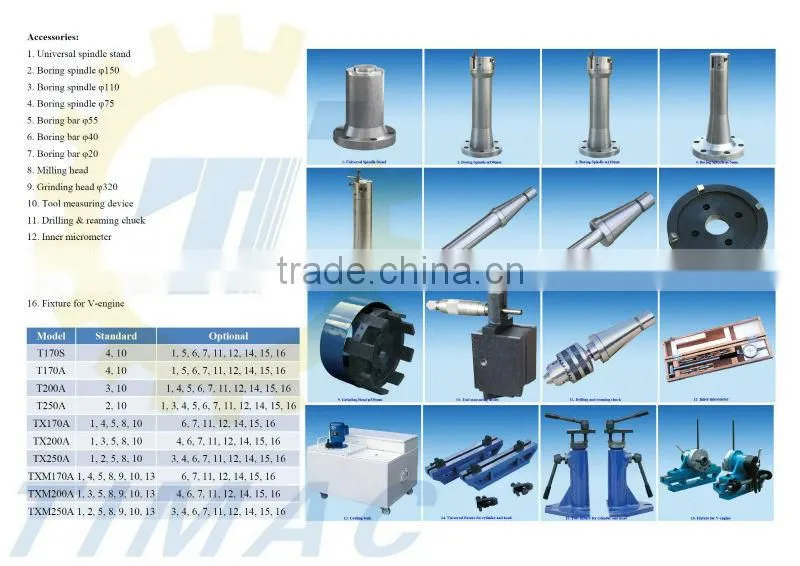

Accessories:
