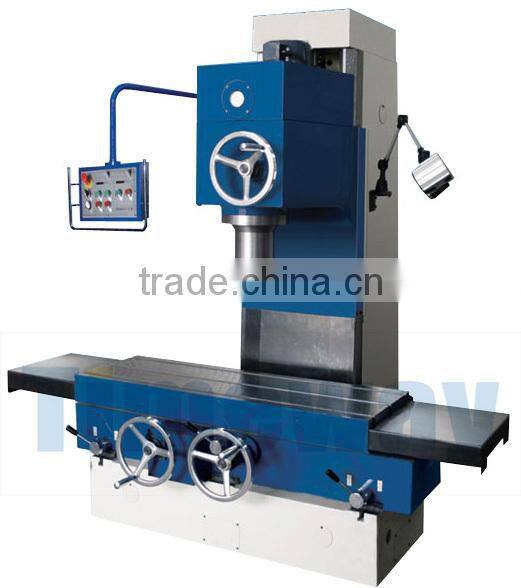

T170S Engine Rebuilding Vertical Boring Machine
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
TIMAC
Model Number:
T170S
Payment & Shipping
Payment Methods:
Port of Shipment:
China Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
3MB9817 Cylinder Head Honing MachineNegotiableMOQ: 1 Set -
Connecting Rods Boring and Grinding Machine TM8216NegotiableMOQ: 1 Set
-
TXM170A, TXM200A, TXM250A Vertical Cylinder Boring Milling Grinding MachineNegotiableMOQ: 1 Set
-
Motorcycle Vertical Cylinder Boring Milling MachineNegotiableMOQ: 1 Set
-
Automobile Engine Cylinder Block Boring Machine / Vertical Fine Boring Machine T170A, T200A, T250AUS$ 8,800 - 16,000MOQ: 1 Set
Place of Origin
Henan, China
Brand Name
TIMAC
Model Number
T170S
Condition
New
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
1. Vertical cylinder boring machine;2. Engine block boring machine
3. Boring dia. 170mm;
4. Boring depth: 400mm;
Vertical Fine Boring Machine

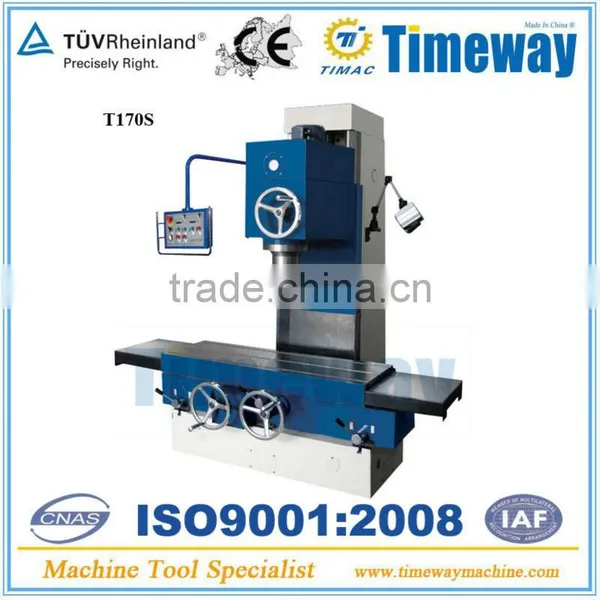

* Model: T170S
* Related Machines:
Vertical Boring Machine: T170S;
T170A, T200A, T250A
Vertical Boring Milling Machine: TX170A, TX200A, TX250A;
Vertical Boring Milling Grinding Machine: TXM170A, TXM200A, TXM250A;
* Features:
This serial model can be widely used in boring automobile engine cylinders, cylinder sleeves of diesel engines and compressors, as well as various high precision holes boring.
| Specification | Unit | T170S | |
| Max. boring diameter | mm | Φ170 | |
| Max. boring depth | mm | 400 | |
| Max. grinding area | mm | - | |
| Max. milling area | mm | - | |
| Max. drilling & reaming diameter | mm | Φ30 | |
| Spindle speed | rpm | 80-860 | |
| Feeding of the spindle | mm/min | 14-810 | |
| Rapid moving speed of the spindle | mm/min | 810 | |
| Spindle travel | mm | 500 | |
| Distance between spindle end face and table | mm | 0-500 | |
| Distance between spindle axis and carriage vertical plane | mm | 330 | |
| Longitudinal feeding of work table | mm/min | - | |
| Longitudinal rapid moving of work table | mm/min | - | |
| Max. longitudinal travel of working table | mm | 1100 | |
| Max. cross travel of the working table | mm | 80 | |
| Working table size (W×L) | mm | 400x1250 | |
| Quantity of “T” Slot | qty. | 3 | |
| Main motor | kw | 3 | |
| Boring holes precision | H7 | ||
| Working accuracy | Roundness | mm | 0.005 |
| Cylidricity | 0.01/300 | ||
| Milling flatness | - | ||
| Grinding flatness | - | ||
| Working surface roughness | Boring | μm | Ra2.5 |
| Milling | - | ||
| Grinding | - | ||
| Overall dimensions (L×W×H) | mm | 2100x1430x2010 | |
| Packing dimensions (L×W×H) | mm | 1820x1770x2190 | |
| N.W./G.W. | kg | 2500/2800 | |

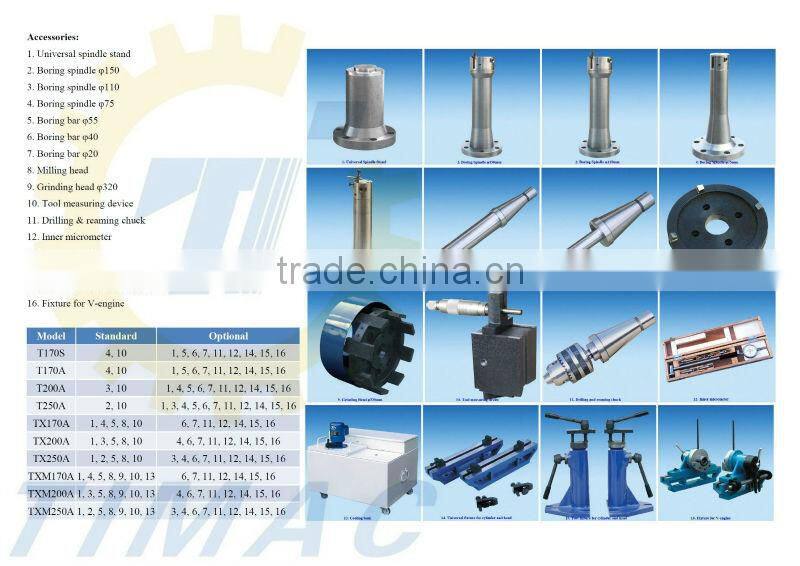

Accessories:
