Heavy-duty CNC Deep Hole Skiving Roller Burnishing Machine

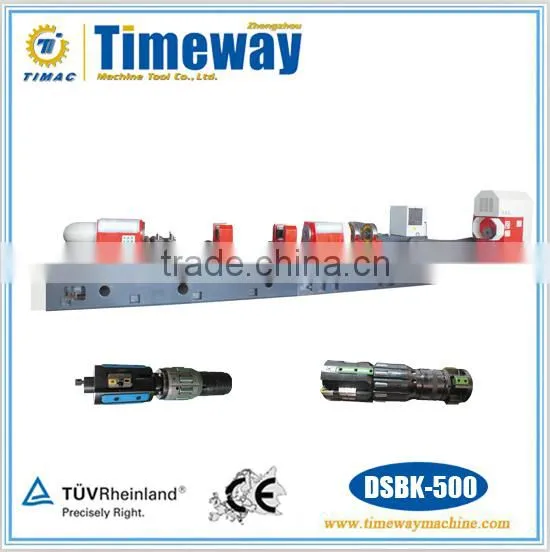

DSBK-360 DSBK-500
Machine Summary
- The CNC skiving roller burnishing machine is newly developed by our company.
- This machine has the smart and simple CNC operation system with high efficiency and stable performance, the configuration design is uniform, artistic and clean, using the environmental protection measures against oil splash and leakage.
Performance and Features
The series heavy duty skiving roller burnishing machine adopts the processing way of the workpiece rotating and the tool feeding, it can also use the way of workpiece fixing and tools rotating and feeding.
The machine can perform skiving and roller-burnishing of inner hole the one-off processing achieves the simple operation and the higher precision.
It has the high processing efficiency and stable performance. The productivity is 5 or 10 times of the traditional deep hole boring machine. The high intelligent level and the easy operation of the digital control make the machine in a stable running when production.
The series heavy duty skiving roller burnishing machine is equipped with Siemens CNC system, the spindle box is driven by AC variable frequency motor with stepless speed regulation.
The spindle uses the high precision bearing spindle which has a high rotary precision.The feeding box uses AC servo motor with stepless speed regulation. The feed system adopts gear-rack transmission, which has the good rigidity and ensures the stable and accuracy feeding of the spindle box.

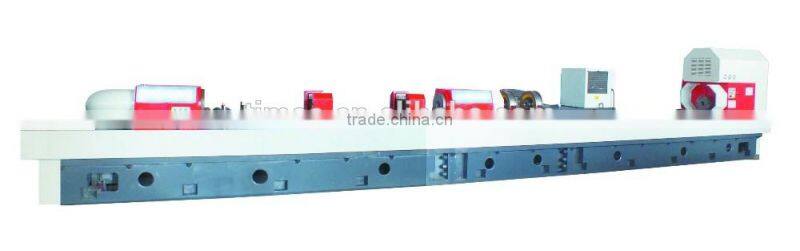

The bed body uses high quality cast iron and the double rectangle flat guideway keeping the machine with the integrated rigidity. The protection design is also used around the machine.
The special clamping device with hydraulic self-centering keeps the workpiece in a stable status during high speed processing.
The machine is equipped with automatic chips removal device, cooling device and magnetic separator, which ensures the cooling liquid is kept clean in the recyling use.
Technical Parameters
| Specifications | Units | DBSK-360 | DBSK-500 |
| Boring dia. range | mm | Φ60-Φ360 | Φ120-Φ500 |
| Boring depth range | m | 1-12 | 1-12 |
| The width of guideway | mm | 650/800 | 800 |
| Spindle center height | mm | 450 | 625 |
| Spindle speed change range | r/min | 60-1000 (4shifts, stepless) | 5-1000 (4shifts, stepless) |
| Main motor power | kw | 60/75 (variable frequency) | 75/110 (variable frequency) |
| Feed speed range | mm/min | 5-3000 (stepless) | 5-3000 (stepless) |
| Feed carriage rapid moving speed | m/min | 3/6 | 3/6 |
| Workpiece clamping diameter range | mm | Φ120-Φ450 | Φ120-Φ550 |
| Feed motor | Nm | 48 | 50 |
| Cooling pump motor power | kw | N=7.5 (three group) | N=7.5 (three group) |
| Hydraulic pump motor power | kw | 1.5kw, n=1440r/min | 1.5kw, n=1440r/min |
| Cooling system rated pressure | MPa | 2.5 | 2.5 |
| Cooling system flow | L/min | 200, 200, 200 (three group) | 300, 300, 300 (three group) |
| Air pressure | MPa | ≥0.4 | ≥0.4 |
| Control system | SIEMENS 808 | SIEMENS 828 |

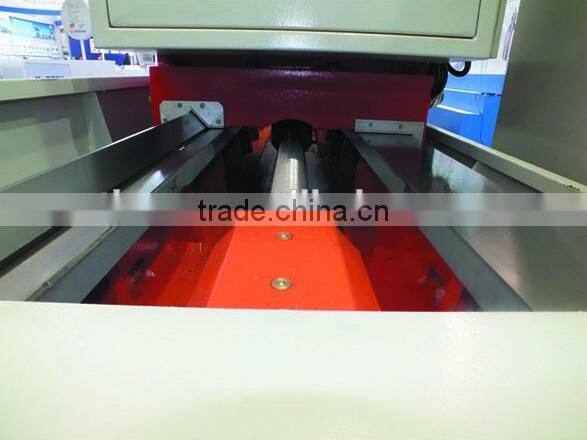

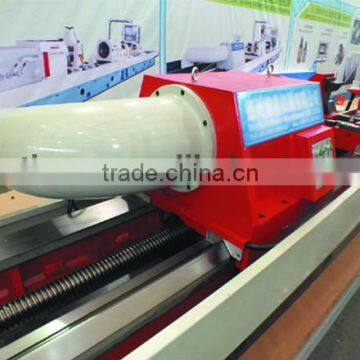

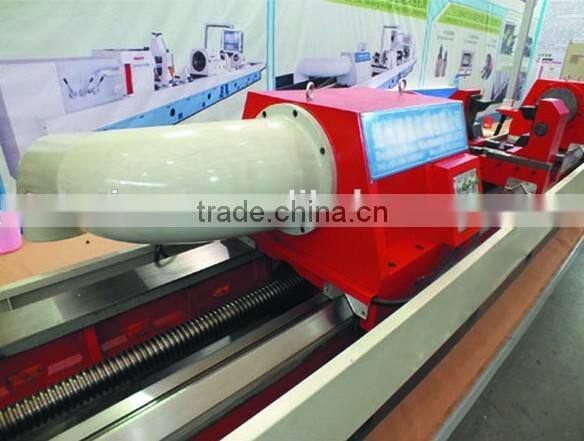

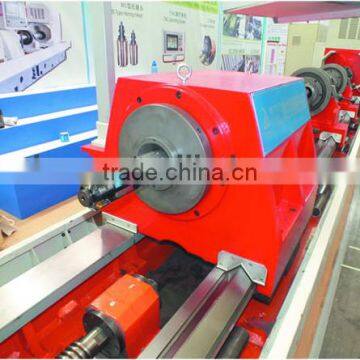

Spindle box and Guideway
Spindle box adopts high precision and high quality bearings, to guarantee processing accuracy and stable operation.
Guideway adopts high quality cast iron, the one V-type and flat track ensure the giridity and good guiding.

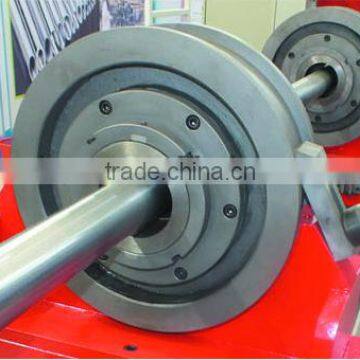

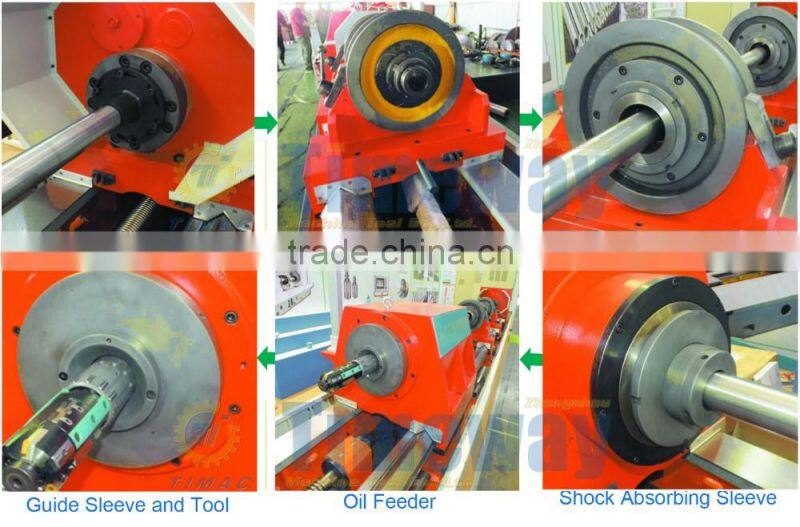

The Method of Keeping Accuracy of Boring Bar

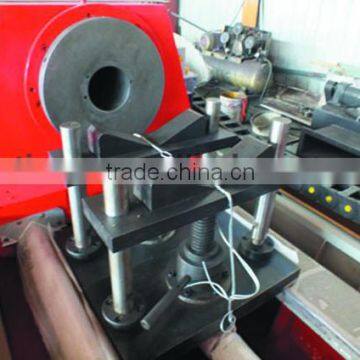

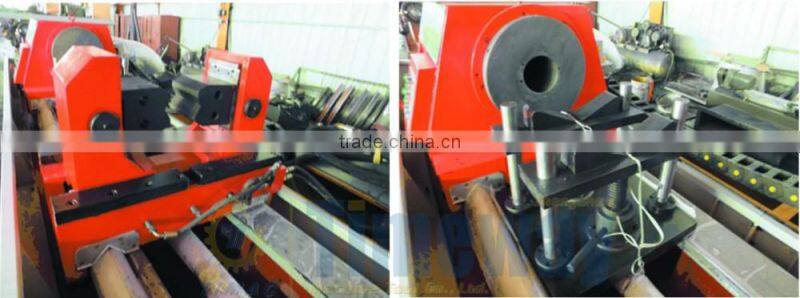

Clamping Workpiece and Hydraulic Center Rest and Workpiece Supporting Block
- Firstly packed by waterproof cloth and then in wooden case.
- Few parts may need to be taken down and be packed in wooden case.
- According to customer's different require, wo can adopt different packaging.
Whether (CNC) deep hole honing machine or (CNC) deep hole drilling and boring machine or (CNC) deep hole skiving roller burnishing machine, we all use the same standard Packagings.
