Less No. of Teeth and Large Module Gear Hobbing Machine

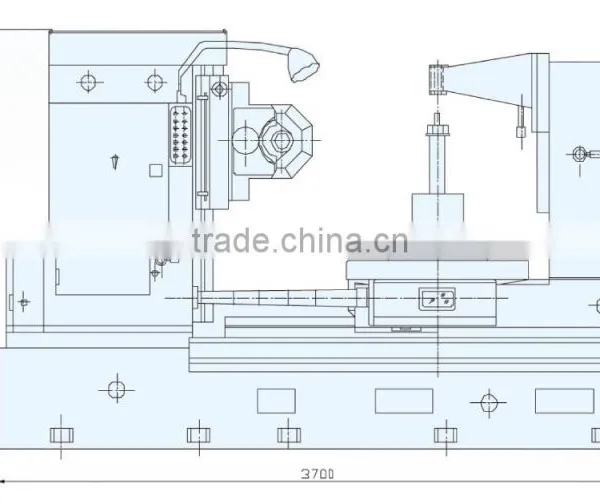

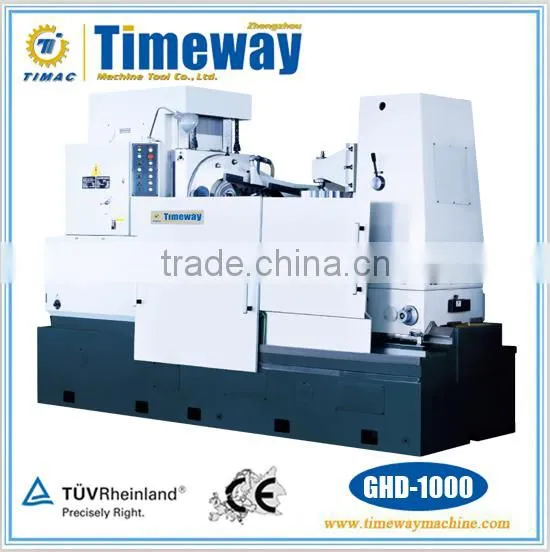

GHD-1000
Machine Summary
On the principle of continuous indexing, the machine is capable of cutting cylindrical spur & helical gears and sprokets under axial feed method. Manual feed is used for worktable. Maximum hob diameter is 260mm, so that the machine can cut the workpieces with the module of 20mm. The machine is suited for mine, oil, marine and engineering machinery industries.
Remarks
1. Standard equipment includes: main machine, hob arbor assemblies Φ32, Φ40 and Φ50 one for each, a complete set of change gears, a complete set of operating tools.
2. Special order: other dia. hob arbors Φ22, Φ27 and Φ60.
Components for Special Order
Column and workstay adding height 270mm
Column and workttay adding height 680mm
Tailstock bottom blocked up 300mm/350mm/400mm
Tailstock adding height (distance between tailstock bore end face and worktable surface)
Tailstock center
Tailstock steady rest Φ180-Φ270mm
Worktable bore Φ260*300mm , Φ180*150mm
Tool alignment device M8-M16
Mangnetic chip conveyor
Tangential hob head
Technical Parameters
| Specifications | Units | GHD-1000 |
| Max. workpiece dia. with workstay | mm | 1000 |
| Max. module | mm | 20 |
| Min. No. of teeth | 12 | |
| Max. worktable speed | rpm | 5 |
| Worktable dia.*bore dia. | mm | 950*200 |
| Hob speed/steps | rpm | 24-187/7 |
| Distance between hob axis and worktable surface | mm | 200-730 |
| Min. center distance between hob and worktable | mm | 100-740 |
| Distance between tailstock end face and worktable surface | mm | 580-1000 |
| Max. hob diameter and length | mm | Φ260*220 |
| Max. hob head swiveling angle | deg | ±60 |
| Total power | kw | 22.75 |
| Main motor power | kw | 15 |
| T-slot of worktable | 6*M20 | |
| Overall dimensions(L*W*H) | cm | 370*210*250 |
| No. of cases | 1 cases in total | |
| N.W/G.W | kg | 15400/16600 |

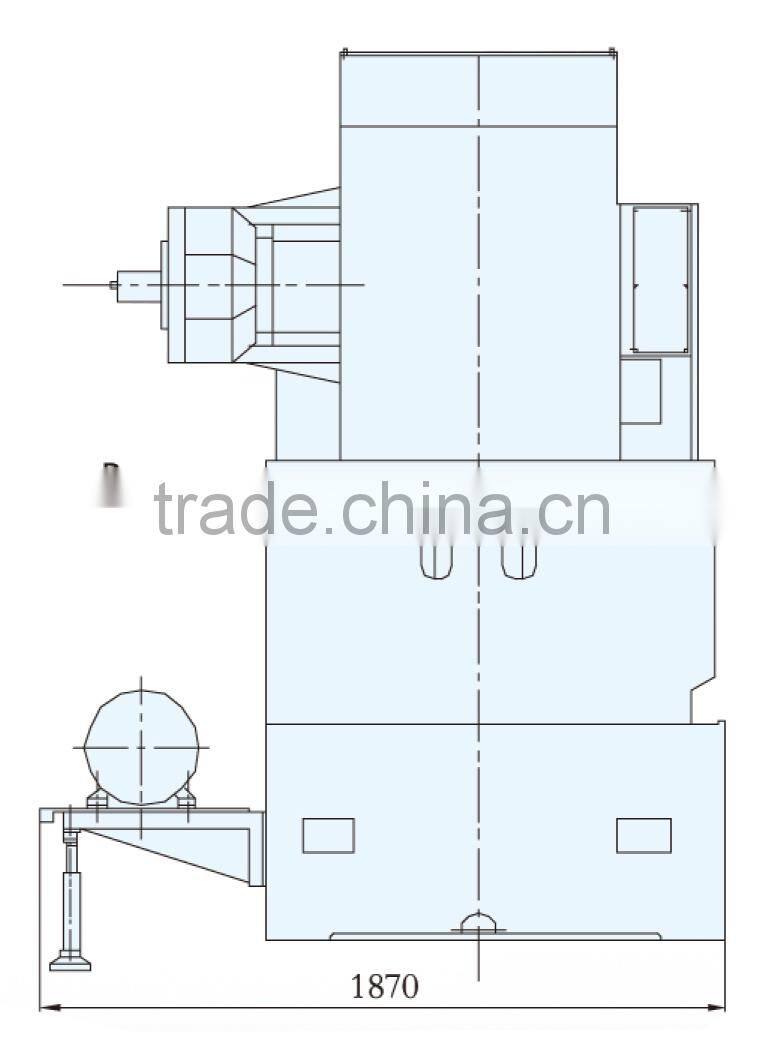

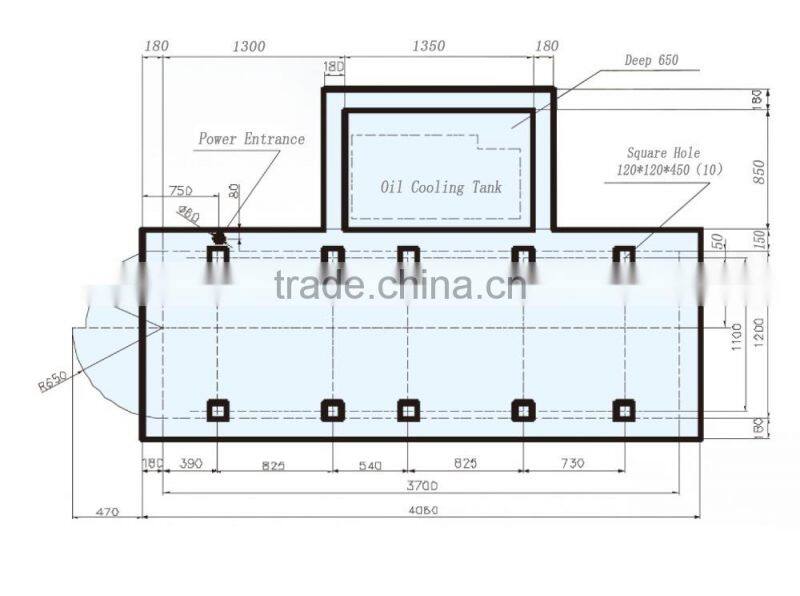

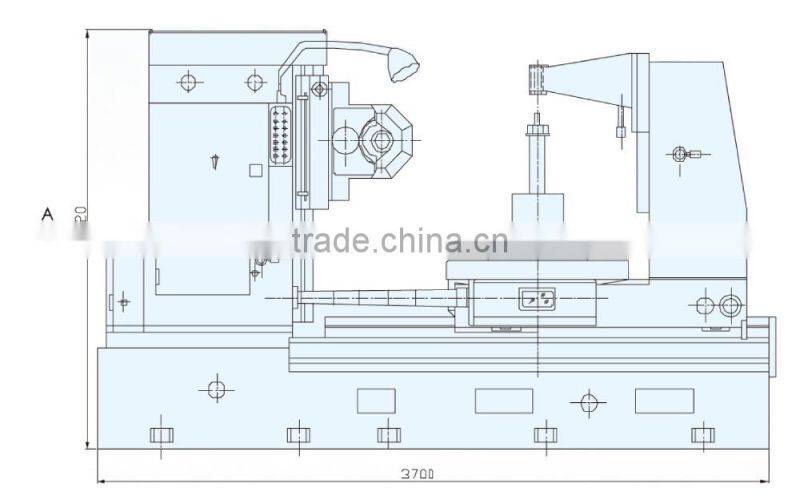

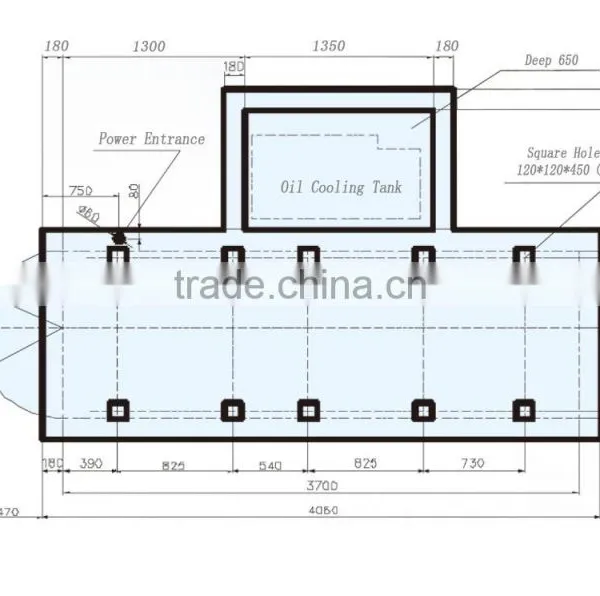

Foundation Plan
