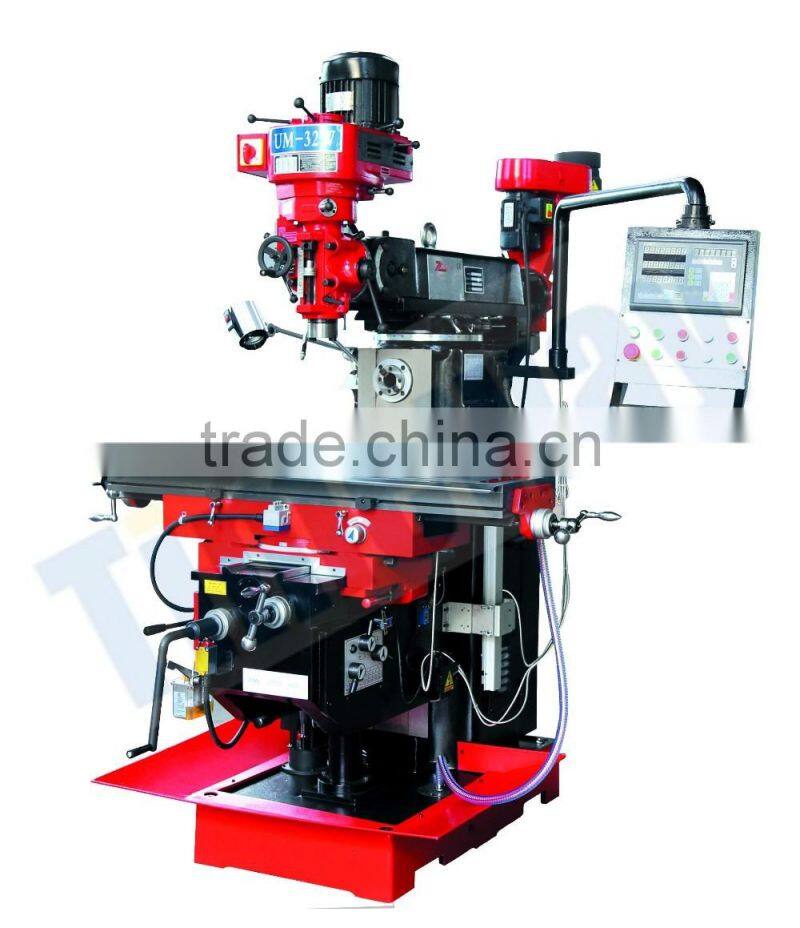

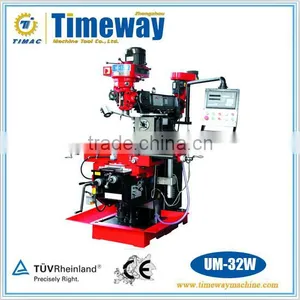

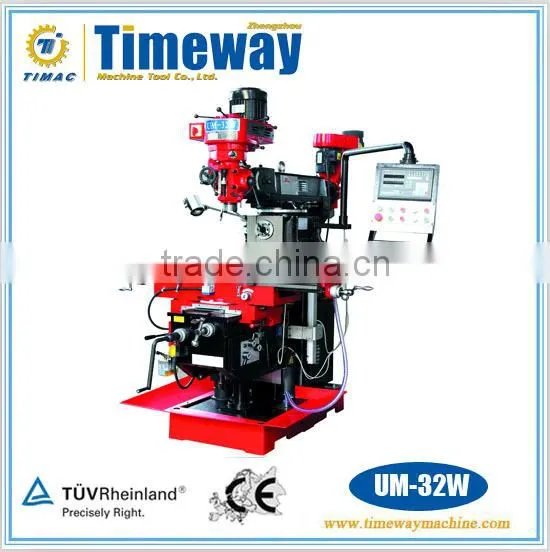

Universal Radial Arm Miling Machine (UM-32W)

Name: Universal Radial Arm Miling Machine (UM-32W)
Brand: TIMAC
SKU: 140796698
Availability: InStock

Zhengzhou Timeway Machine Tool Co., Ltd.

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Brand Name:

TIMAC

Model Number:

UM-32W

Payment & Shipping

Payment Methods:

Port of Shipment:

China Port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Brand Name TIMAC

Model Number UM-32W

Type Universal

CNC or Not Normal

Voltage as customer's request

Power(W) 2.2KW

Dimension(L*W*H) 168081600*2250mm

Weight 1550KG

Certification CE & ISO

Warranty 1 year

After-sales Service Provided Engineers available to service machinery overseas

Universal Radial Arm Miling Machine (UM-32W)

Product Description

Features:

Rotary worktable ±45º

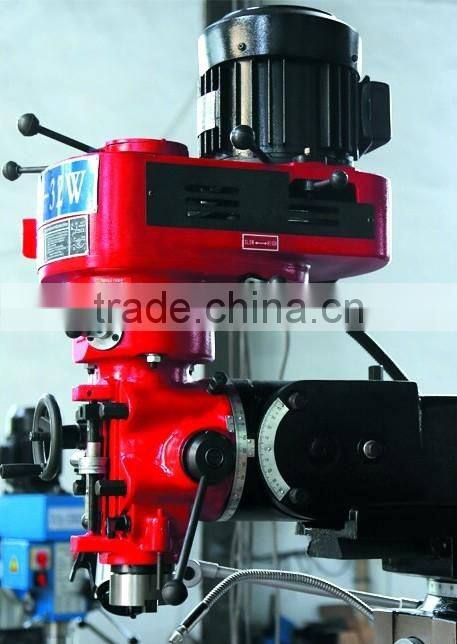

Swiveling Head ±45º

Parameter:

Specification	UM-32W
Spindle taper	ISO40(V) ISO40(H)
Dia.of quill	95mm
Distance from spindle to table	90-370mm
Distance from horizontal spindle to table	0-280mm
Distance from spindle to column	200-700mm
Spindle speeds	(16steps) 70-450r.p.m(v) 40-1300r.p.m(H)
Spindle travel	127mm
Feeding of quill	(3steps) 0.04 0.08 0.15
Max.drilling capacity of auto-feeding	10mm
Head movement (left to right)	±45º
Head movement (front to back)	±45º
Table size	1250×320mm
Table travel (Horizontal/Cross/Vertical)	600/300/350mm
Feeding range of longitudinal & Cross travel)	22-555mm/min
X/Y-axis rapid feed speed	1080mm/min
Z-axis rapid feed speed	590mm/min
Z-axis motor power	750
Max.weight of workpiece	300kg
T-slot (No./width/distance)	3/14mm/70mm
Milling head moving (vertical)	55º dovetail guideway
Cross slide way	rectangular guideway
Longitudinal slid way	dovetail guideway
Power for main motor	3HP(V) 2.2KW(H)
X,Y axis driving motor	750W
Overall dimension	1700×1500×2150mm
Packing size	1680×1600×2250mm/2300×1600×2250mm
Net / gross weight	1550/1700kg(3100/3300kg)
