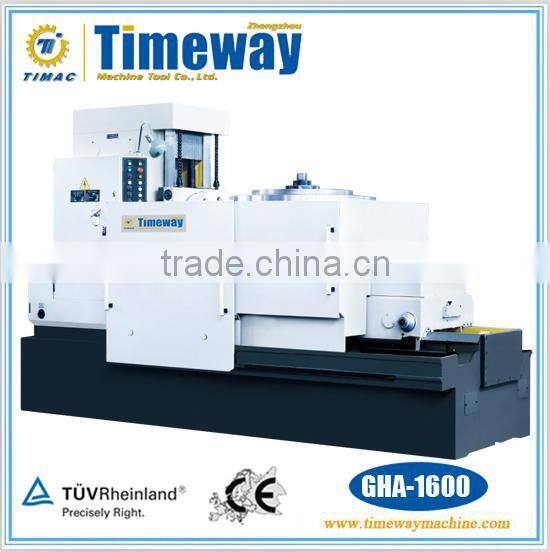

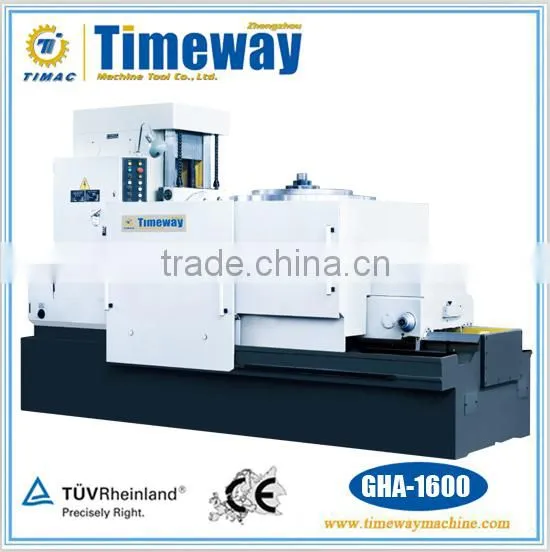

Heavy-Duty Gear Hobbing Machine For Cutting Teeth
GHA-1600
Performance and Feature
The gear hobbing machine is capable of hobbing cylindrical spur gear by continuous index and axial feeding as well as worm by radial feeding. The feeding os the worktable is manual. The GHA-1600 is best suited for hobbing large gear for mine, oil, marine, engineering machinery industries.
Remarks
1. Standrad equipment includes: main machine, hob arbor assemblies Φ30, Φ40, Φ50 one of each; a complete set of change gears, a complete set of operating tools.
2. Special order: other dia. hob arbors Φ22, Φ27, Φ60.
Technical Parameters
| Specifications | Units | GHA-1600 |
| Max. workpiece dia.(with/without workstay) | mm | 1600/1100 |
| Max. module | mm | 20 |
| Min. tooth number | 21 | |
| Max. worktable speed | rpm | 4 |
| Worktable dia. *hole dia. | mm | 1100*275 |
| Hob speed/steps | rpm | 19-125/7 |
| Distance between hob axis worktable surface | mm | 200-730 |
| Center distance between hob axis and worktable | mm | 180-940 |
Distance between tailstock center bore low end face and worktable surface | mm | 580-1000 |
| Max. hob dia.*length | mm | Φ260*230 |
| Max. hob head swivel angle | deg | ±60 |
| Total power | kw | 22.75 |
| Main motor power | kw | 15 |
| T-slot of worktable | 6*M20 | |

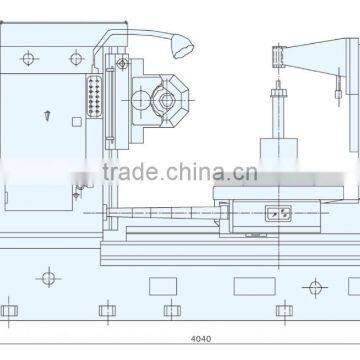

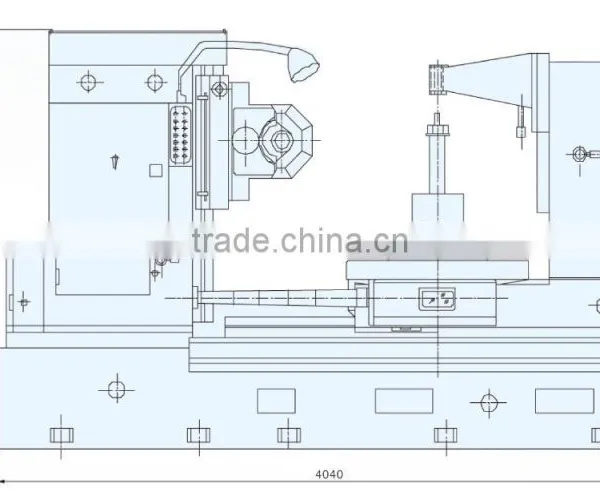

| Overall dimension(L*W*H) | cm | 408*220*252 |
| N.W/G.W | kg | 16500/17500 |
| No. of cases | 1 case in total |
Components for Special Order
Tangential hob head
Column and workstay adding height 270mm
Column and workstay adding height 680mm
Workstay center
Workstay steady restΦ120-Φ350mm and center
Tool alignment device M8-M16
Mangnetic chip conveyor
Workstay 580-1000mm
Workstay bottom blocked up
