Home > Manufacturing & Processing Machinery > Machine Tools > Milling Machine > Fresadora , TM Series Universal Turret Milling Machine For Sale

Fresadora , TM Series Universal Turret Milling Machine For Sale

Name: Fresadora , TM Series Universal Turret Milling Machine For Sale
Brand: TIMAC
SKU: 140796636
Availability: InStock

Fresadora , TM Series Universal Turret Milling Machine For Sale thumbnail-1

Fresadora , TM Series Universal Turret Milling Machine For Sale thumbnail-2

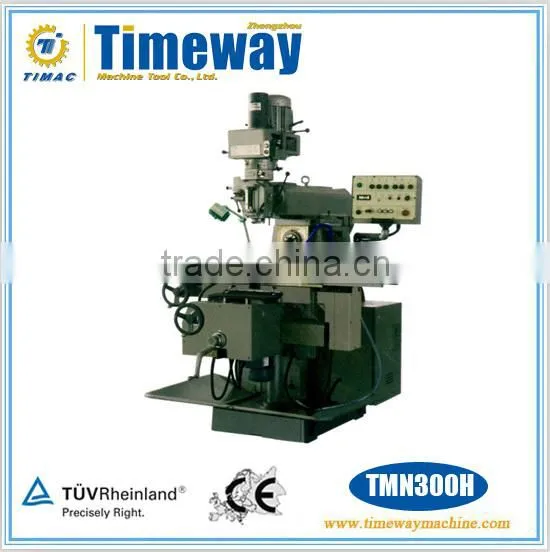

Fresadora , TM Series Universal Turret Milling Machine For Sale photo-1

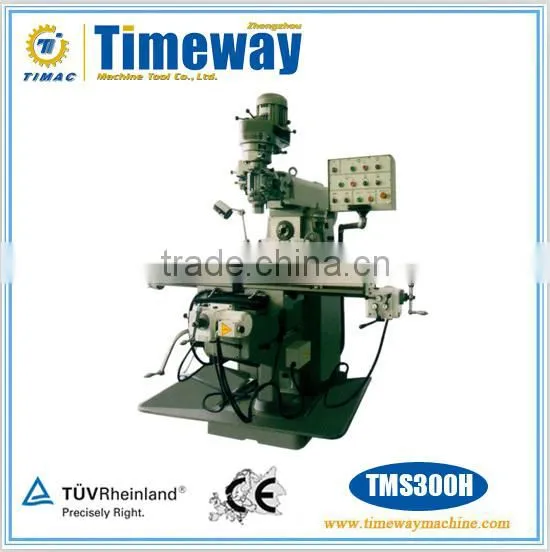

Fresadora , TM Series Universal Turret Milling Machine For Sale photo-2

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Condition:

New

Brand Name:

TIMAC

Model Number:

TMN300H, TM300H, TMS300H

Contact Supplier Request Quote Chat Now

Zhengzhou Timeway Machine Tool Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China Port

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Brand Name TIMAC

Model Number TMN300H, TM300H, TMS300H

Type Universal

CNC or Not Normal

Voltage as customer's request

Power(W) 5HP

Dimension(L*W*H) 1800*1500*2200

Weight 1680-1900kg

Certification CE & ISO

Warranty 1 year

After-sales Service Provided Engineers available to service machinery overseas

TM series Universal Turret Milling Machine For Sale

Product Description

Features:

1. Super width of bed and knee box guide way has been hardened and precision ground, with high rigidity and stability.

2. The guide way of saddle is lined with TF wearable material.

3. The machine has one vertical and one horizontal spindle.

4. The spindles and gears have been hardened and ground, suitable for heavy cutting.

Standard Accessories:

Electric cabinet and hung up control panel, electric lubricate pump, working light, knee rapid elevating motor, draw bar, plastic splash guard, cooling system, oil collecting plate, leveling wedge and screw bolts

Parameter:

Specification		Unit	TMN300H		TM300H			TMS300H
Table size		mm	300×1300		300×1300	300×1500		300×1370	300×1500
Longitudinal travel of table(manual)		mm	845		845	1000		880	1000
Cross travel of table(manual)		mm	385					380
Vertical travel of knee(manual)		mm	435
Longitudinal feed rate of knee		mm/min	0-3500 servo motor		---			---
Cross feed range of Table		mm/min			---			---
Knee rapid speed		mm/min	900
Vertical spindle	Motor power	HP	5HP					Standard:3HP/Optional:5HP

	Speed	rpm	(Standard:16steps):50HZ:65-4500/60HZ:80-5440
			(Optional:Variable speed):65-3750
	Taper		ISO40					R8/ISO40
								Standard:R8/Optional:ISO40
	Quill travel	mm	mm		127
	Quill feed	mm/rev	0.04/0.08/0.15
	Head rotating		(R/L)90º					(R/L)90º/(B/F)45º
	Spindle end to table surface	mm	115-545
Horizontal spindle	Motor power	HP	5HP
	Speed	rpm	50HZ:45/80/165/260/500/980, 60HZ:55/100/200/315/600/1180
	Taper		ISO40
	Spindle center line to table surface	mm	-20~410
	Distance from spindle center to ram	mm	183
Ram travel		mm	480
Ram rotating			360º
Net weight		kg	1900	1900		1950	1680		1730
Packing size		cm	180×150×220	180×150×220		180×180×220		180×160×220	180×180×220
