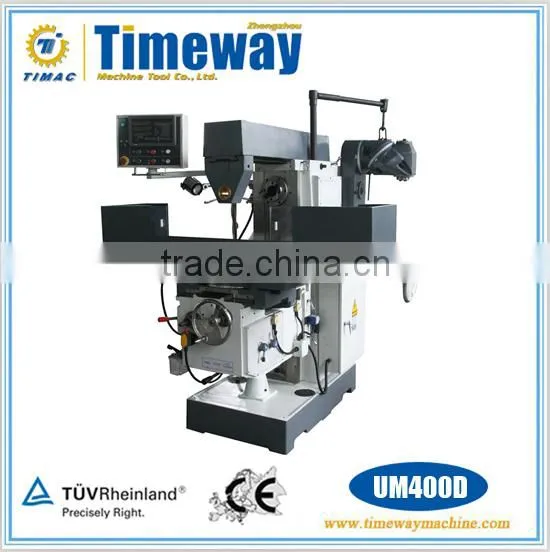

UM400D Swing Mill Head Universal Milling Machine

Name: UM400D Swing Mill Head Universal Milling Machine
Brand: TIMAC
SKU: 140796640
Availability: InStock

US$ 6,000 - 15,000 MOQ: 1 Set

Key Specifications

Condition:

New

Brand Name:

TIMAC

Model Number:

UM400D

Zhengzhou Timeway Machine Tool Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China Port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Brand Name TIMAC

Model Number UM400D

Voltage 380V/50HZ

Power(W) 4kw

Dimension(L*W*H) 2290*1525*2285mm

Weight 2300kgs

Certification CE ISO9001

Warranty One Year

After-sales Service Provided Engineers available to service machinery overseas

Swing Mill Head Universal Milling Machine

UM400D UM360D

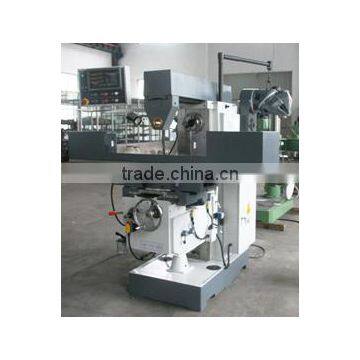

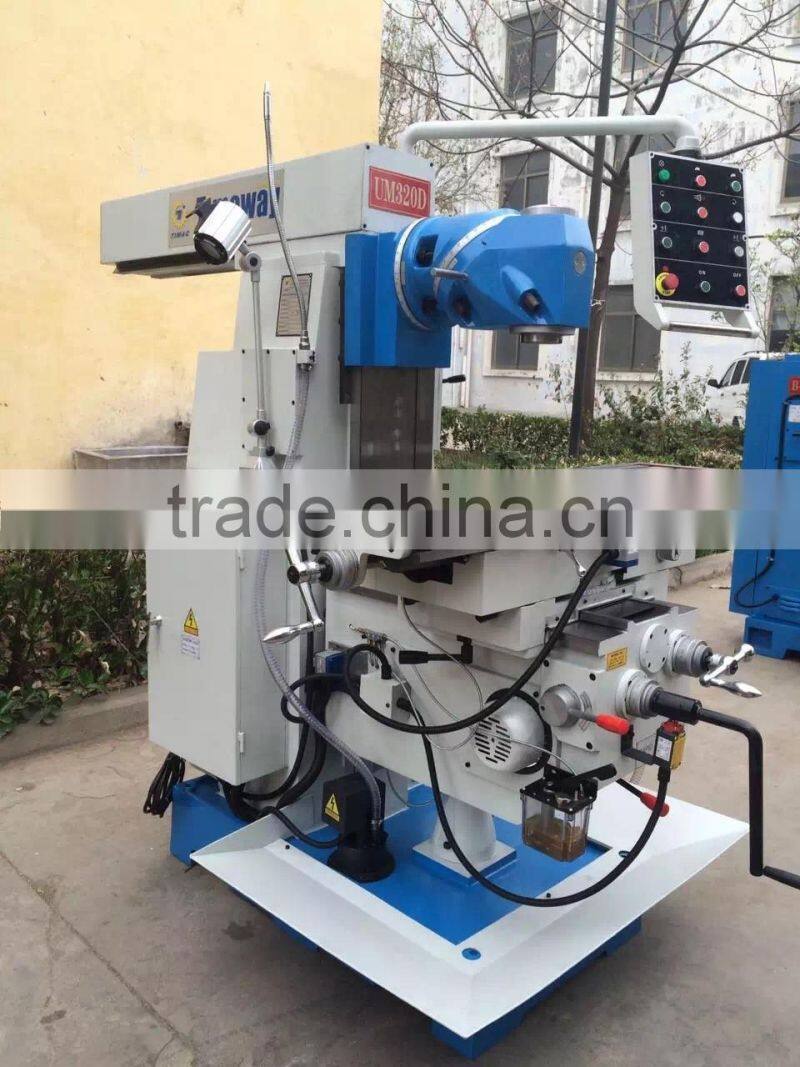

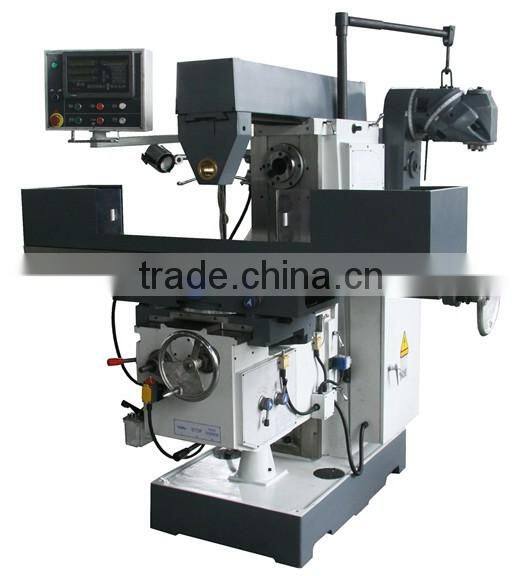

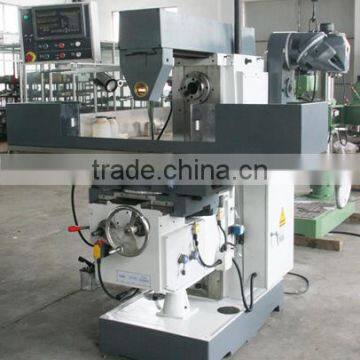

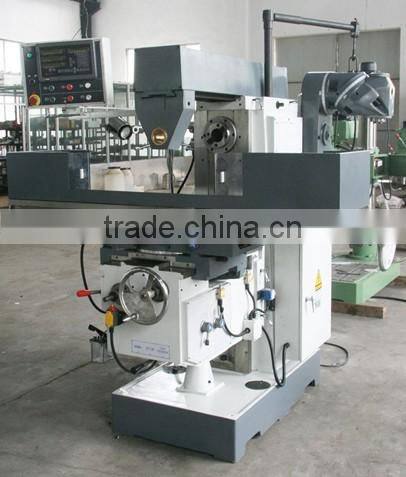

Main Outlook

Product Description

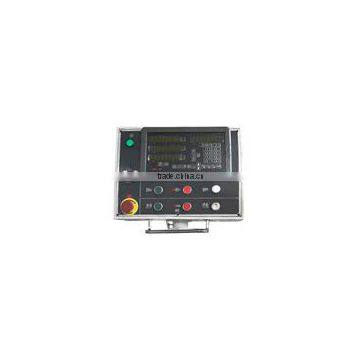

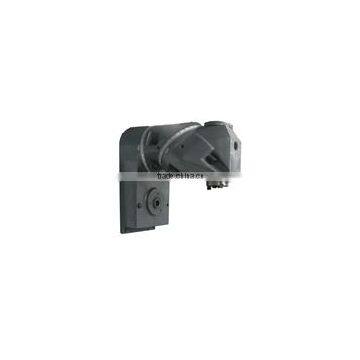

Universal Milling Head Operation Panel (Optional DRO)

Worktable Rotation Angle ±45° Feeding Gear Box

Features:

All 3-axes with automatic and rapid feeds.
Digital readout is optional, DRO electrical operation button one-piece operation station.
Mechanical power feed on X/Y/Z axes (8steps), rapid feed speed 1300mm/min on the X-axis, 940mm/min on the Y-axis, 350mm/min on the Z-axis.
Equipped with universal milling head and worktable swivels ±45°.
Wide square guideways on X/Y/Z-axis.

Technical Parameter

Specification	Unit	UM400D	UM360D
Spindle taper	-	ISO50(H) ISO40(V)	ISO50(H) ISO40(V)
Distance from spindle center to table surface	mm	30-510	30-510
Spindle speed range	rpm	60-1800(12steps)	60-1800(12steps)
Table size	mm	1700*400	1700*400
Max. rotation angle of table	deg	±45°	±45°
Table manual feeding travel(X/Y/Z)	mm	1100390500	900390500
Table power feeding travel(X/Y/Z)	mm	950350450	860350450
Longitudinal feeding speed of table	mm/min	16-355(8steps)	25-530(8steps)
Cross feeding speed of table	mm/min	16-355(8steps)	16-355(8steps)
Vertical feeding speed of table	mm/min	16-133	6-133
X-axis rapid feed speed	mm/min	1300	1300
Y-axis rapid feed speed	mm/min	940	940
Z-axis rapid feed speed	mm/min	350	350
Feed motor power	kw	1.1	1.1
Max. weight of workpiece	kg	500	500
T-slot(Number/width/distance)	mm	3/18/70	3/18/70
Vertical guideway type	-	Rectangular guideway	Rectangular guideway
Cross guideway type	-	Rectangular guideway	Rectangular guideway
Longitudinal guideway type	-	Rectangular guideway	Rectangular guideway
Main motor power	kw	4	4
Coolant pump power	w	90	90
N.W/G.W	kgs	2300/2450	2100/2250
