Ram-type Universal Milling Machine and Horizontal milling machine
- 800 Set / Sets per Month
- China Port
- T/T Credit Card
- CNC Milling Machines,Mini CNC Milling Machines,DIY CNC Milling Machines,Hobby CNC Milling,DIY milling
- Benchtop CNC Mill, desktop cnc mill, Compact CNC, educational cnc, prototype cnc, cnc for school, training cnc
- CNC Milling Machines,Mini CNC Milling Machines,DIY CNC Milling Machines,Hobby CNC Milling,DIY milling
- Small CNC Milling Machine for School, Hobbist,Prototype,DIY
- YORNEW Desktop CNC Lathe Machine, education cnc, vocation cnc, hobby cnc, diy cnc
- Industrial 4.0 intelligent manufacturing production line, FMS, CIM, training system
Product Details
Condition: | New | Brand Name: | TIMAC | Model Number: | US360D |
Type: | Horizontal | CNC or Not: | Normal | Voltage: | Customer Requirement |
Power(W): | 4kw | Dimension(L*W*H): | As actual | Weight: | 2600KG |
Certification: | CE ISO | Warranty: | 1 Year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

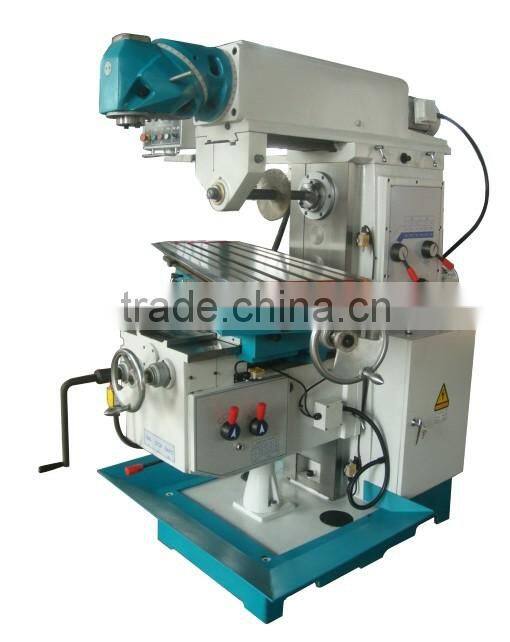

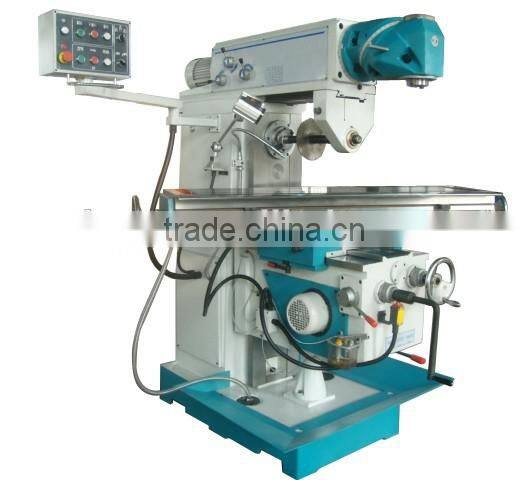

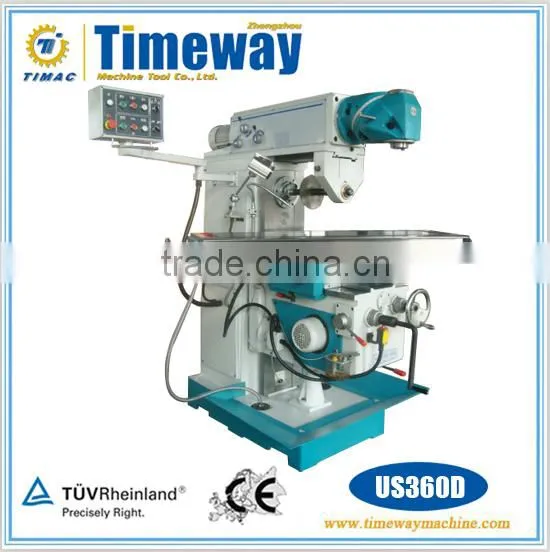

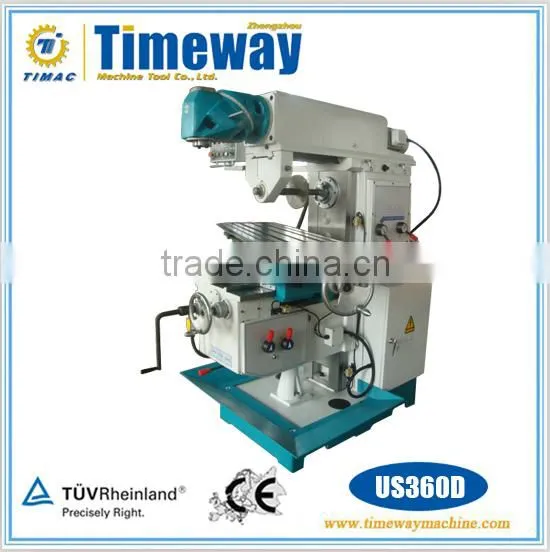

Ram-type Universal Milling Machine and Horizontal Miller
US360D
Features
- Sturdy, zero-backlash box guideways.
- Precision-ground guideways with hardened surfaces for long-term accuracy and wear-resistance.
- Large workarea of 1500*360mm and table load capacity up to 450kgs.
- Quiet, preicison-made headstock gears with hardened and ground gears.
- Universal cutter head swivels on 2 levels quick change over from horizontal to vertical machining.
- By combining both swivel levelsm almost any abgle can be set.

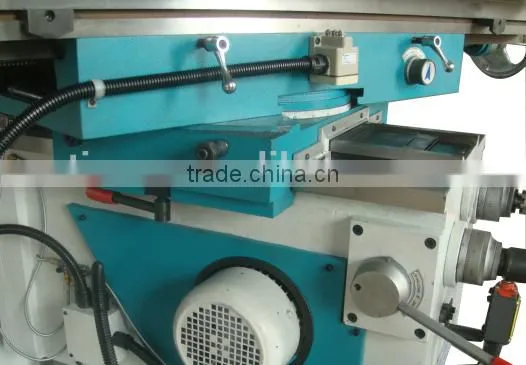

- Automatic table feed on X and Y and Z axes, including rapid feed.

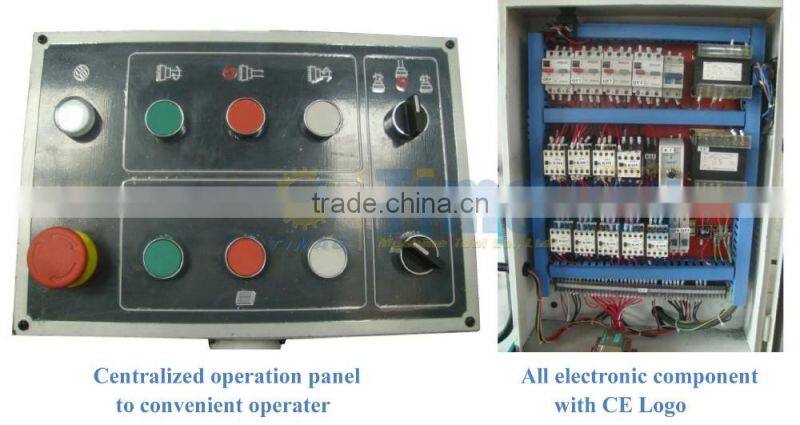

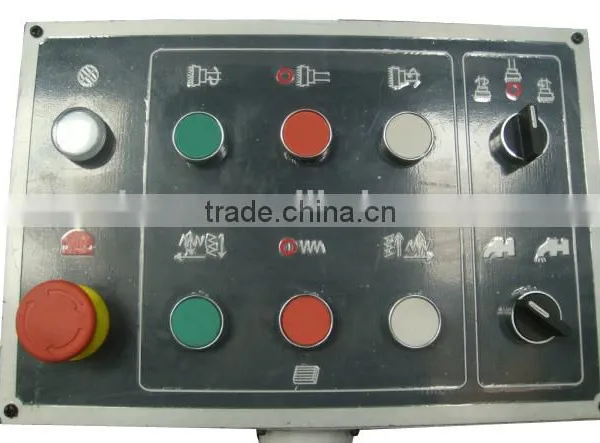

- Control panel swings out to either side and DRO is optional.
- Coolant system and chip tray are included.
Technical Parameter
Specification | Unit | US360D |
Spindle taper | - | ISO50 |
Distance from horizontal spindle center to table surface | mm | 30-510 |
Spindle speed | rpm | 12steps 60-1800(V) 60-1750(H) |
Table size | mm | 1500*360 |
Max. rotation angle of table | deg | ±45° |
Table manual feeding travel(X/Y/Z) | mm | 900*390*500 |
Table power feeding travel(X/Y/Z) | mm | 860*350*450 |
Longitudinal feeding speed of table(X) | mm/min | 30-600(8steps) |
Cross feeding speed of table(Y) | mm/min | 22-410(8steps) |
Vertical feeding speed of table(Z) | mm/min | 15-220(8steps) |
X-axis rapid feed speed | mm/min | 1300 |
Y-axis rapid feed speed | mm/min | 1200 |
Z-axis rapid feed speed | mm/min | 600 |
Feed motor power | kw | 1.1 |
Max. weight of workpiece | kgs | 450 |
T-slot(Number/width/distance) | mm | 3/18/70 |
Vertical guideway type | - | Rectangular guideway |
Cross guideway type | - | Rectangular guideway |
Longitudinal guideway type | - | Dovetails guideway |
Main motor power | kw | 4 |
Coolant pump power | w | 90 |
N.W/G.W | kgs | 2350/2600 |

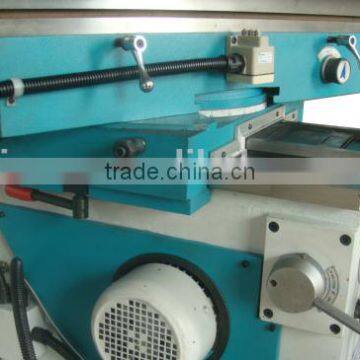

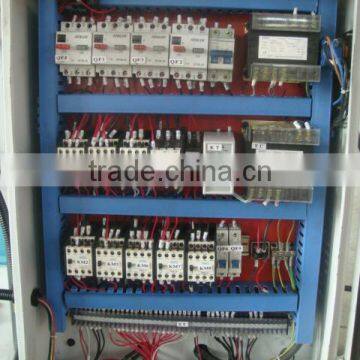

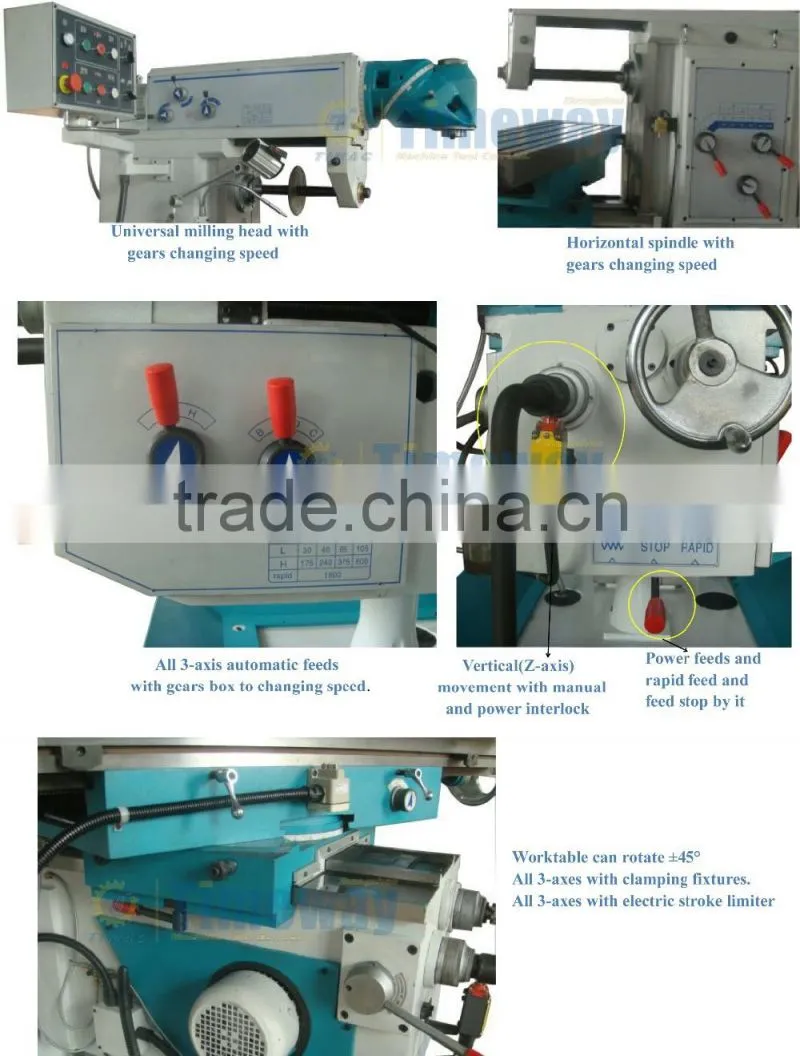

The Structure

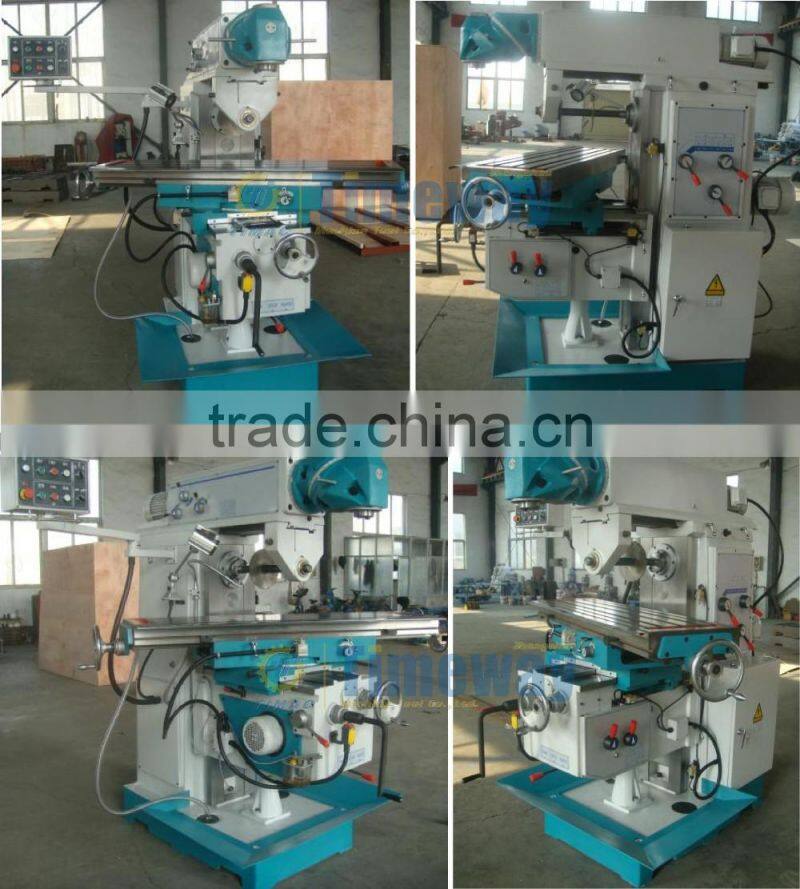

Actual Picture In the Factory

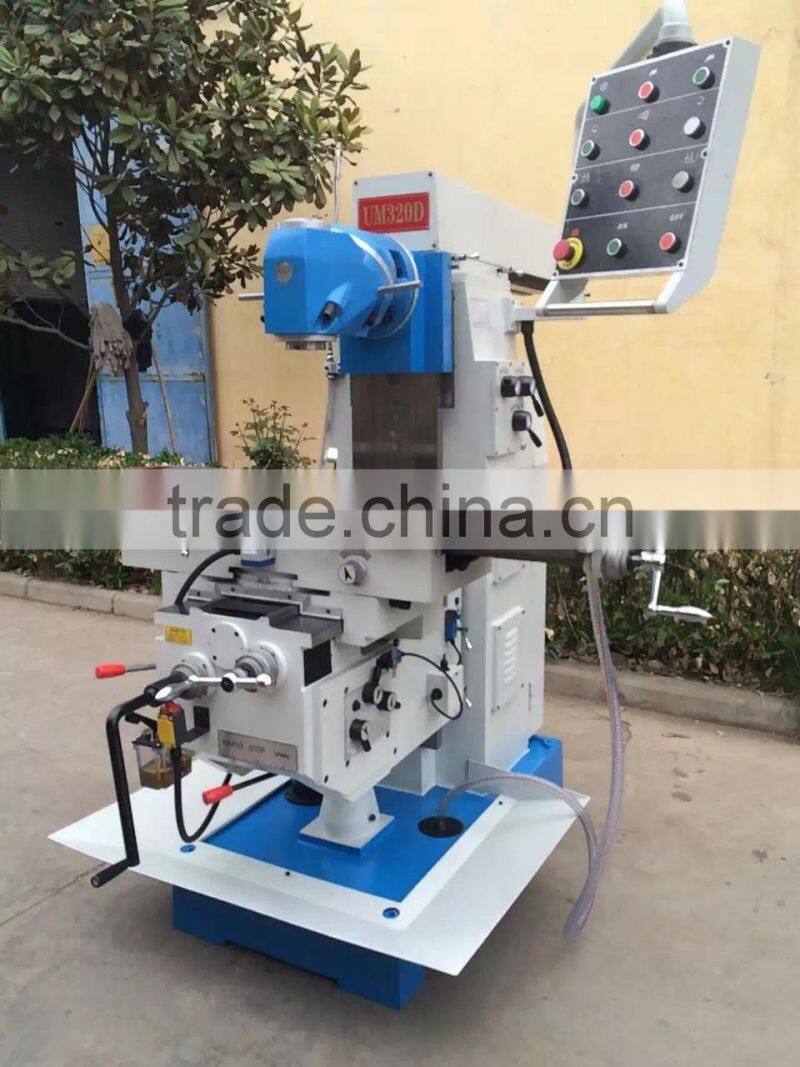

In here, we recommend another economic miller(UM320D)
The Machine was exhibited in the China CNC Machine Tool Fair 2016(CCMT2016) in the Shanghai
Talk with the customer in the CCMT2016
