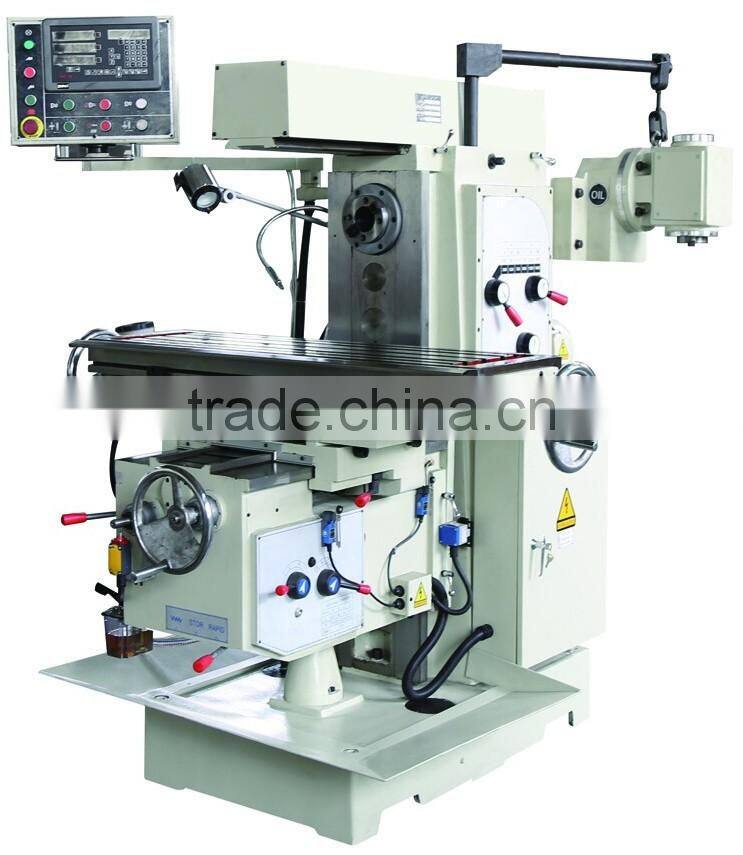

Knee Type Horizontal Milling Machine with DRO

FOB Price

USD $8,000 - $15,000 / Set

1 Set(Min.Order)

Product Details

Condition:	New	Brand Name:	TIMAC	Model Number:	UM360D
Type:	Horizontal	CNC or Not:	Normal	Voltage:	380V/50HZ
Power(W):	4kw	Dimension(LWH):	1930x1365x2270mm	Weight:	2250kgs
Certification:	CE ISO9001	Warranty:	One Year	After-sales Service Provided:	Engineers available to service machinery overseas

Knee-type Vertical and Horizontal Spindle Milling Machine With DRO

UM360D

Main Outlook

Product Description

Features:

All 3-axes with automatic and rapid feeds.
Digital readout is optional, DRO electrical operation button one-piece operation station.
Mechanical power feed on X/Y/Z axes and rapid feeds.
Equipped with universal milling head and worktable swivels ±45°.
Wide square guideways on X/Y/Z-axis.

Technical Parameter

Specification	Unit	UM360D
Spindle taper	-	ISO(H) ISO40(V)
Distance from spindle end to table surface	mm	30-510
Spindle speed	rpm	60-1800(12steps)
Table size	mm	1500*360
Max. rotations angle of table	deg	±45°
Table travel(X/Y/Z)	mm	900390500
Feeding travel(X/Y/Z)	mm	860350450
Longitudinal feeding speed range	mm/min	30-600(8steps)
Cross feeding speed range	mm/min	22-410(8steps)
Vertical feeding speed range	mm/min	15-220(8steps)
X-axis rapid feeding speed	mm/min	1300
Y-axis rapid feeding speed	mm/min	1200
Z-axis rapid feeding speed	mm/min	600
Feeding motor power	kw	1.1
Max. weight of workpiece	kgs	450
T-slot(Number/width/distance)	mm	3/18/70
Vertical guideway type	-	Rectangular guideway
Cross guideway type	-	Rectangular guideway
Longitudinal guideway type	-	Rectangular guideway
Main motor power	kw	4
Coolant pump power	w	90
N.W/G.W	kgs	2250/2500

Detailed Images

UM320D Similar Series Actual Picture In the Factory

Exhibited in the China CNC Machine Tool Fair 2016(CCMT2016) in the Shanghai

Talk with the customer in the CCMT2016
