Multi-purpose Knee-type Universal Miller

FOB Price

USD $5,000 - $8,300 / Set

1 Set(Min.Order)

Product Details

Condition:	New	Brand Name:	TIMAC	Model Number:	UM260D
Type:	Horizontal	CNC or Not:	Normal	Voltage:	380V/50HZ
Power(W):	2.2kw	Dimension(LWH):	148013501600mm	Weight:	1100kgs
Certification:	CE ISO9001	Warranty:	One Year	After-sales Service Provided:	Engineers available to service machinery overseas

Multi-purpose Knee-type Universal Miller

UM260D

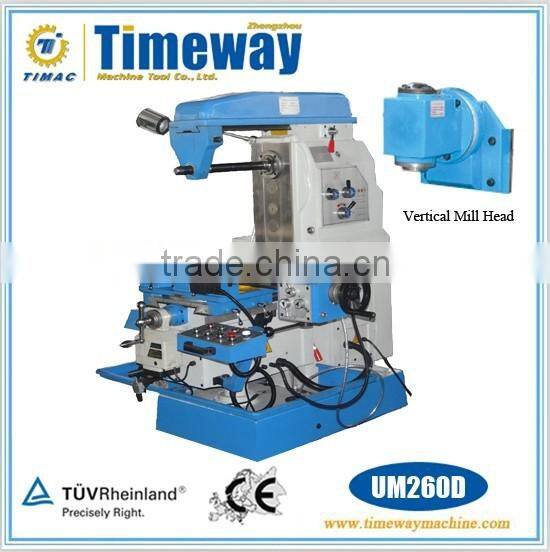

Main Outlook

Product Description

Features

Rigid, heavy machine frame featuring proven knee and column design.
Vertical cutter head swivels and can easily be disassembled and handled via a machine-mounted bracket.
Guideways and gears are hardened and ground.
Worktable swivels ±45°.
Centralized operation panel more convenient operating.
All 3-axes power feeds and X/Y axes automatic feeds.

Technical Parameter

Specification	Unit	UM260D
Spindle taper	-	7:24 ISO40
Distance from spindle center to table surface	mm	0-300
Distance from spindle center to ram surface	mm	180
Spindle speed	rpm	40-1300(12steps)
Table size	mm	1000*260
Table travel(X/Y/Z)	mm	480/230/300
Table power feed grade(X)	grades	8
Table longitudinal feed range(X)	mm/min	22-430
Table T-slot(No./width/distance)	mm	3/14/85
Ram travel	mm	500
Main motor power	kw	2.2
Feed motor power	w	370
Coolant pump power	w	40
Coolant pump current	L/min	12
Overall dimension(LWH)	mm	148013501600
Net weight	kg	1100
Packing size	mm	154014001850

Detailed Images

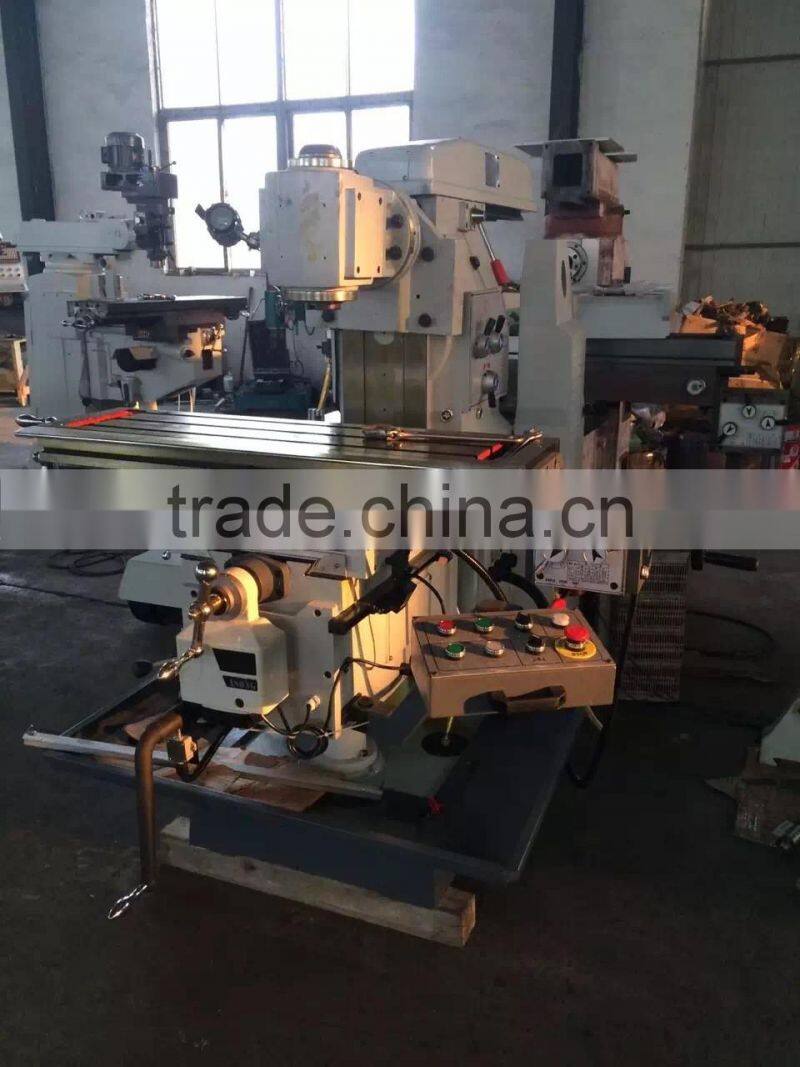

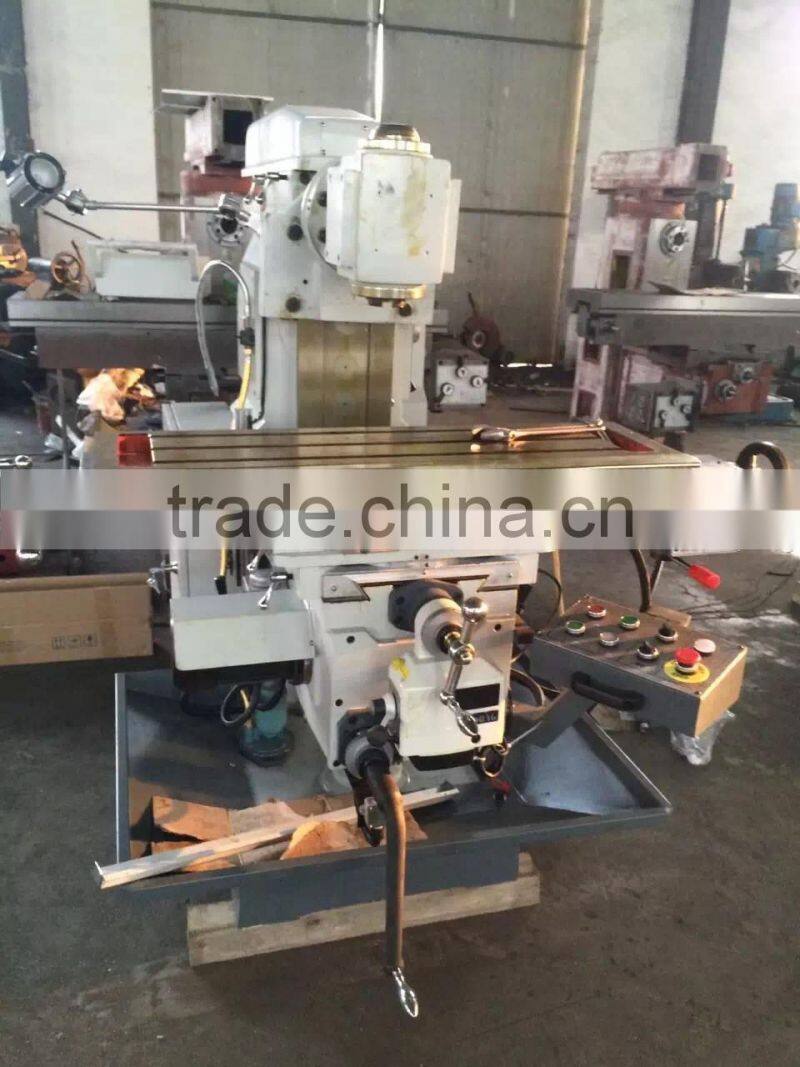

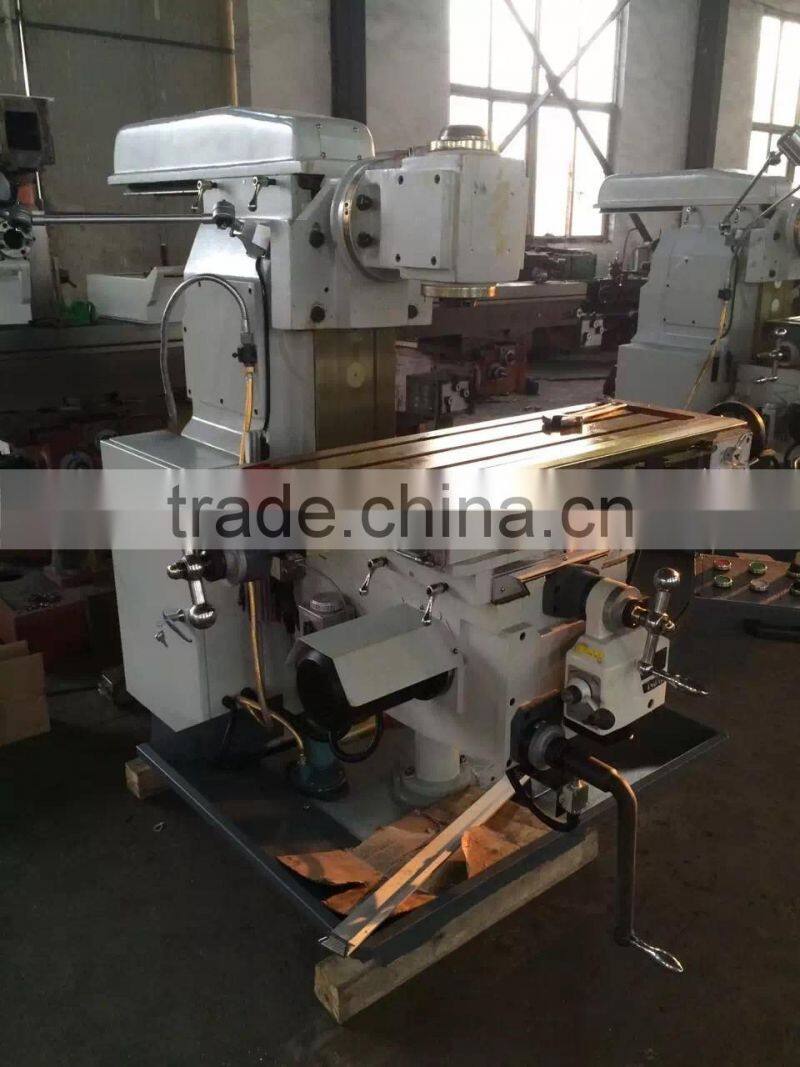

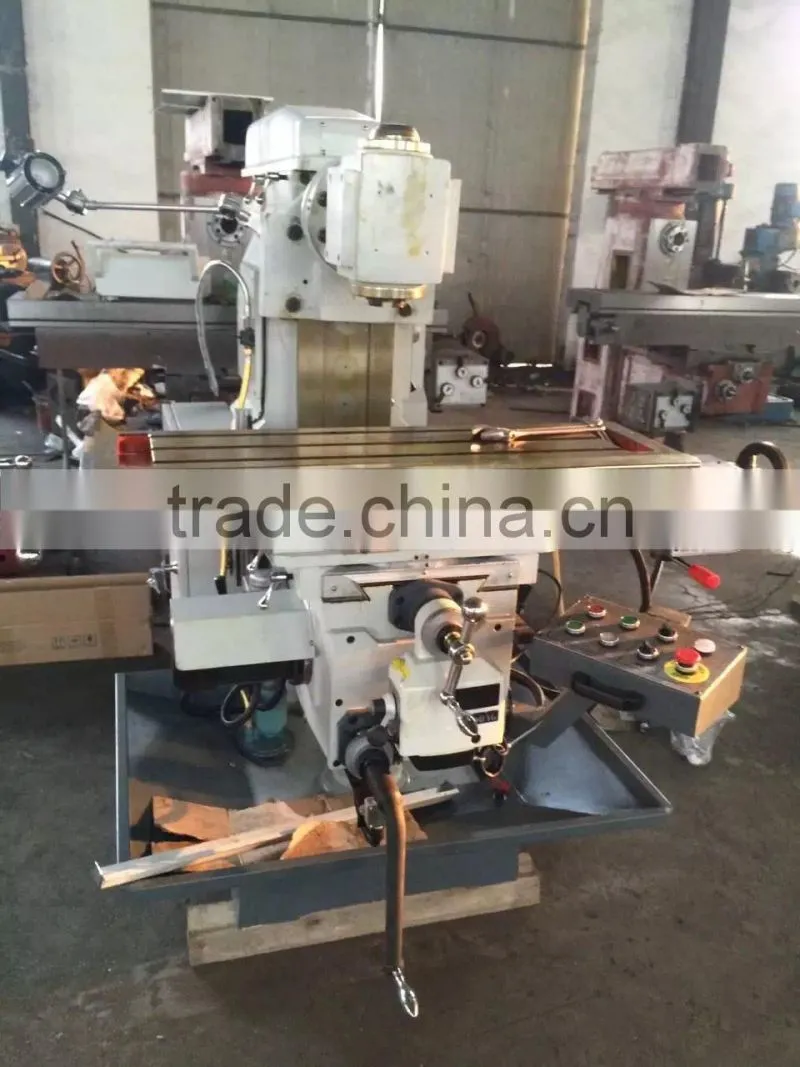

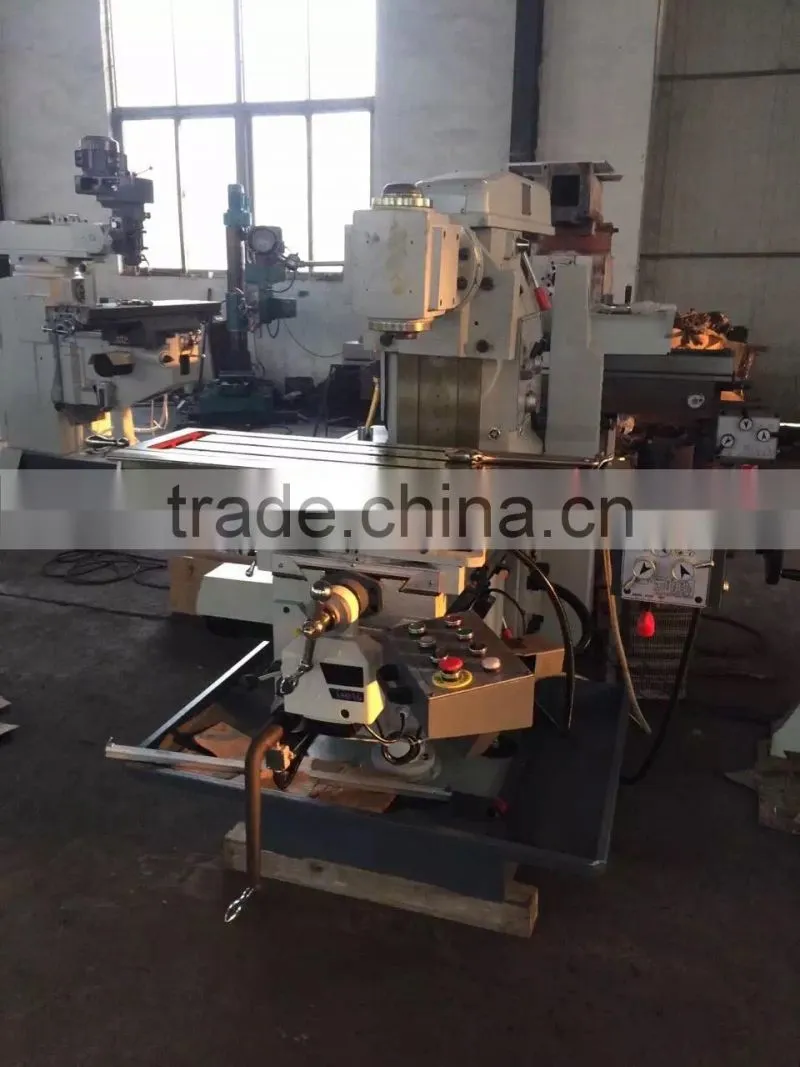

Actual Assembly Drawing In the Factory As Customer's Color requirement(white and grey)

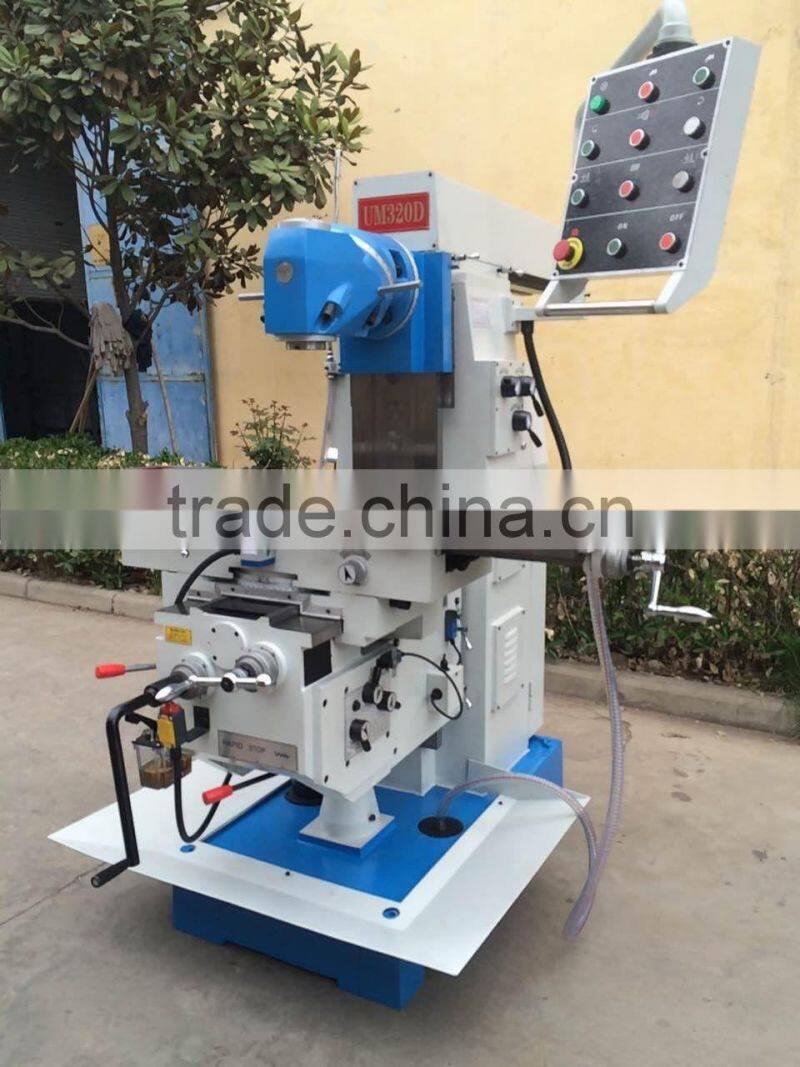

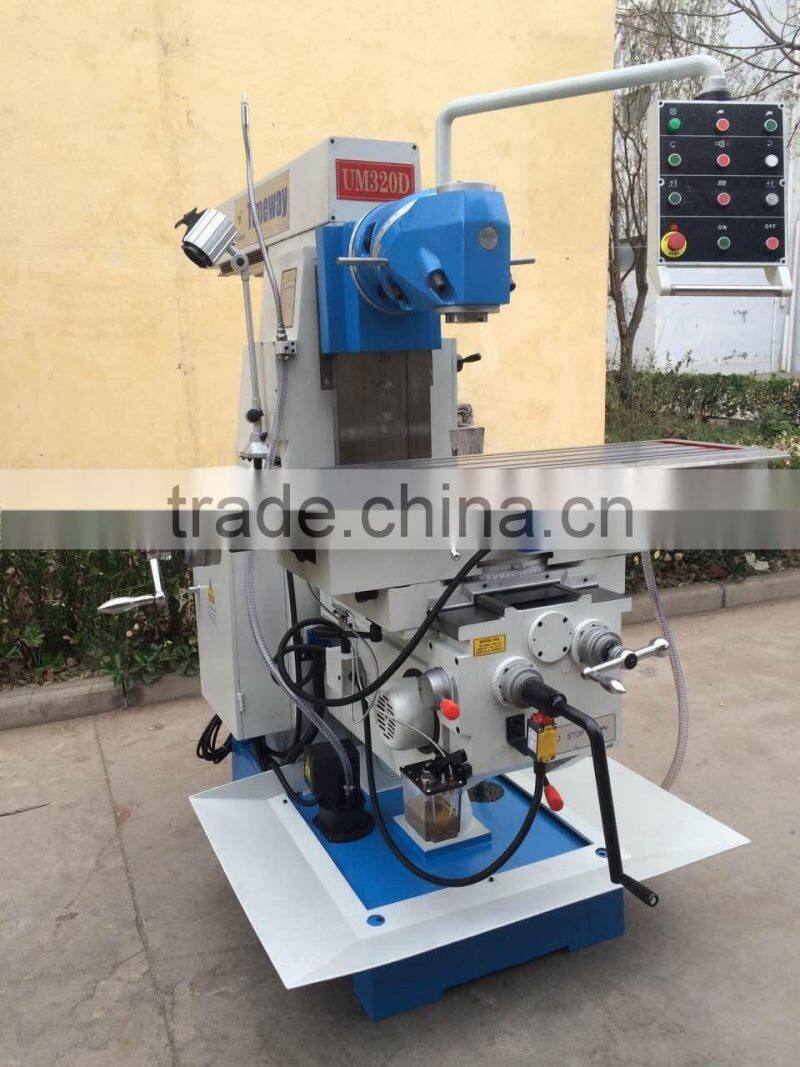

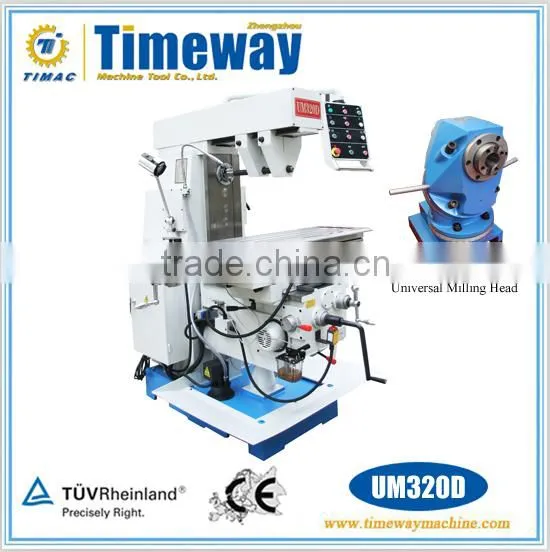

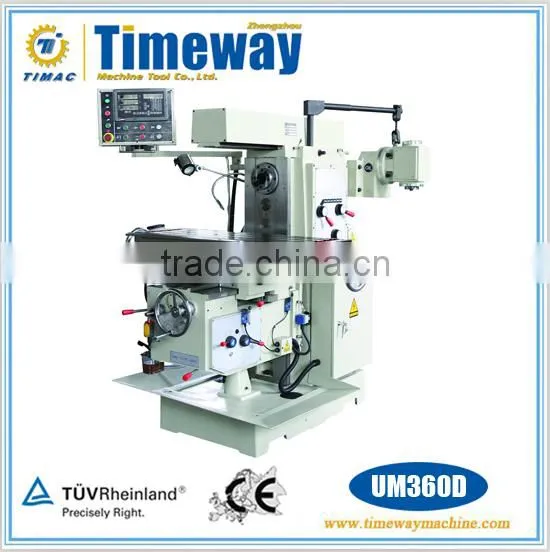

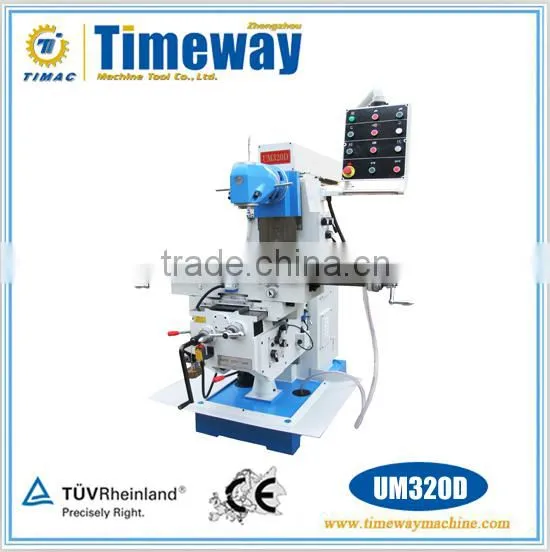

Similar Series Actual Picture In the Factory

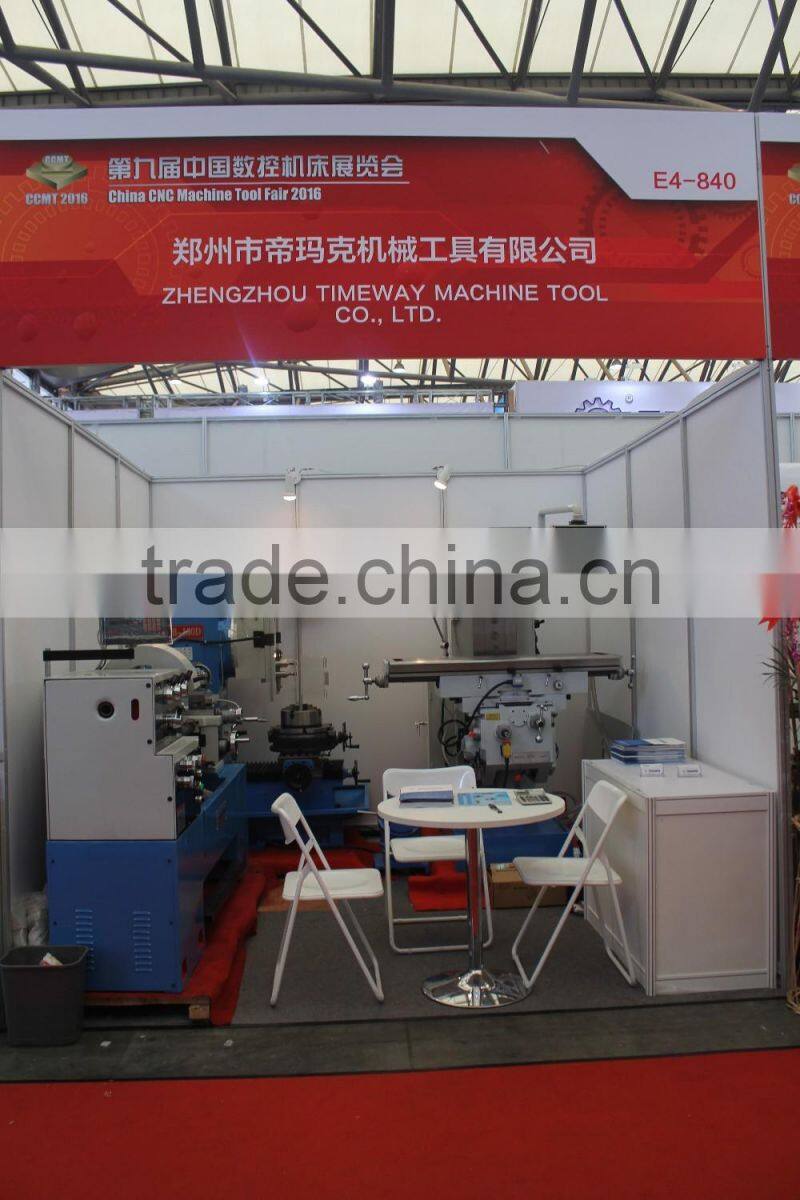

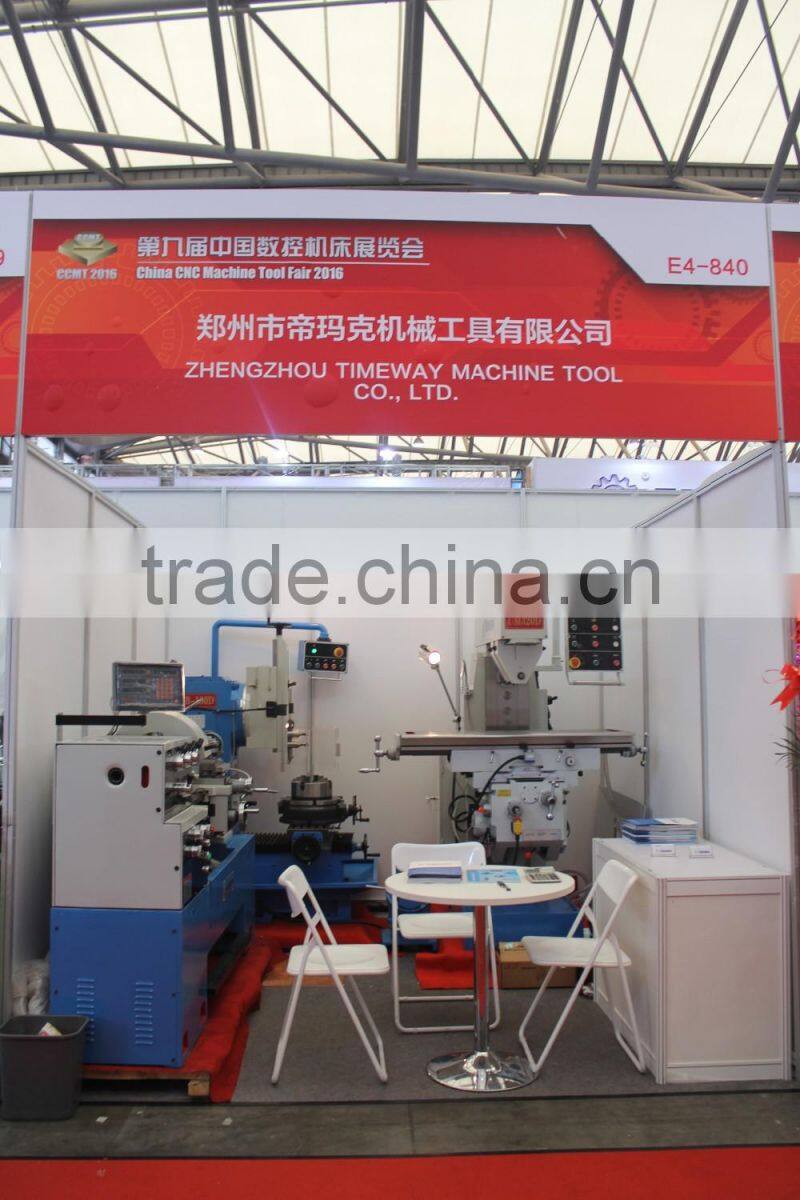

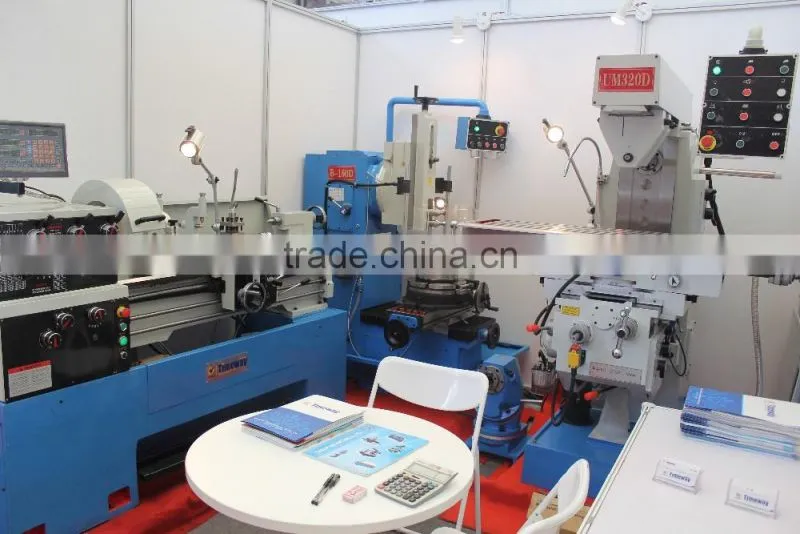

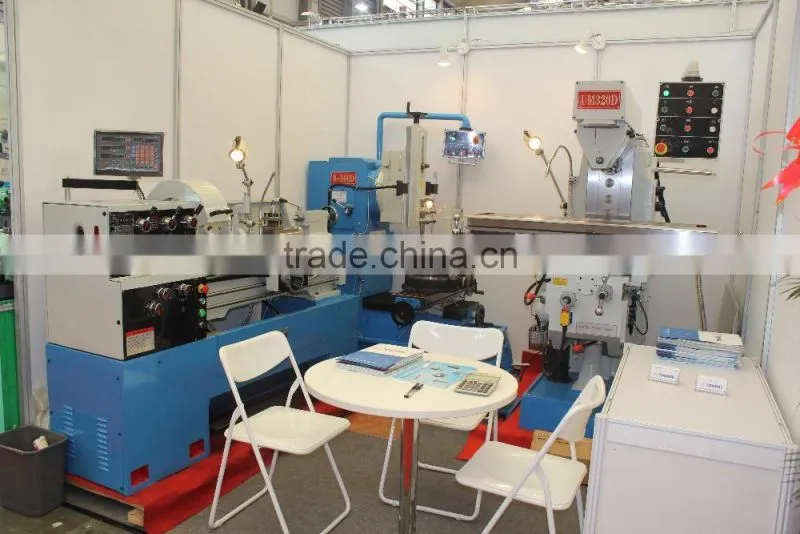

Exhibited in the China CNC Machine Tool Fair 2016(CCMT2016) in the Shanghai

Talk with the customer in the CCMT2016

Zhengzhou Timeway Machine Tool Co., Ltd.: Contact nameDavid Cheung; Phone86-371-60308992; Address4-1702, 32# NORTH JINGSAN ROAD, ZHENGZHOU, HENAN,CHINA Zhengzhou,Henan
