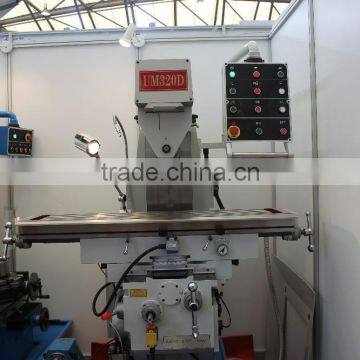

Horizontal Universal Milling Machine (Normal Miller)

Name: Horizontal Universal Milling Machine (Normal Miller)
Brand: TIMAC
SKU: 140796630
Availability: InStock

Zhengzhou Timeway Machine Tool Co., Ltd.

US$ 6,000 - 8,300 MOQ: 1 Set

Key Specifications

Condition:

New

Brand Name:

TIMAC

Model Number:

UM320D

Payment & Shipping

Payment Methods:

Port of Shipment:

China Port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Brand Name TIMAC

Model Number UM320D

Type Universal

CNC or Not Normal

Voltage 380V/50HZ

Power(W) 2.2kw

Dimension(L*W*H) 1700*1500*2150

Weight 1550/1800kgs

Certification CE ISO9001

Warranty One Year

After-sales Service Provided Engineers available to service machinery overseas

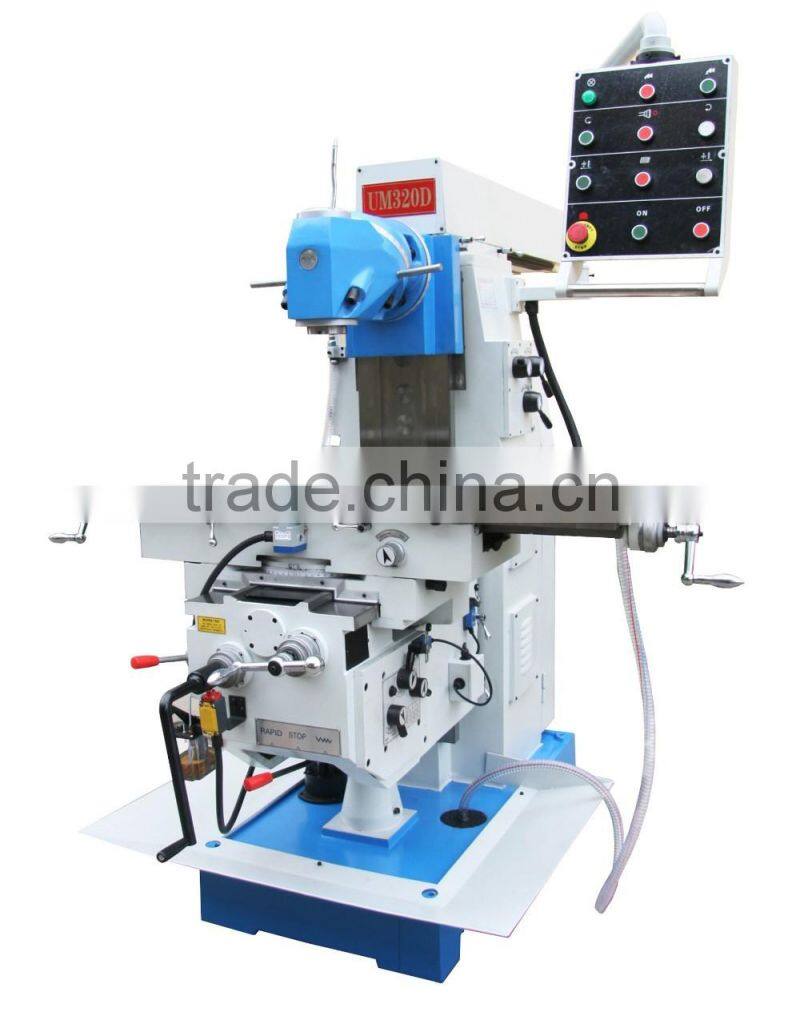

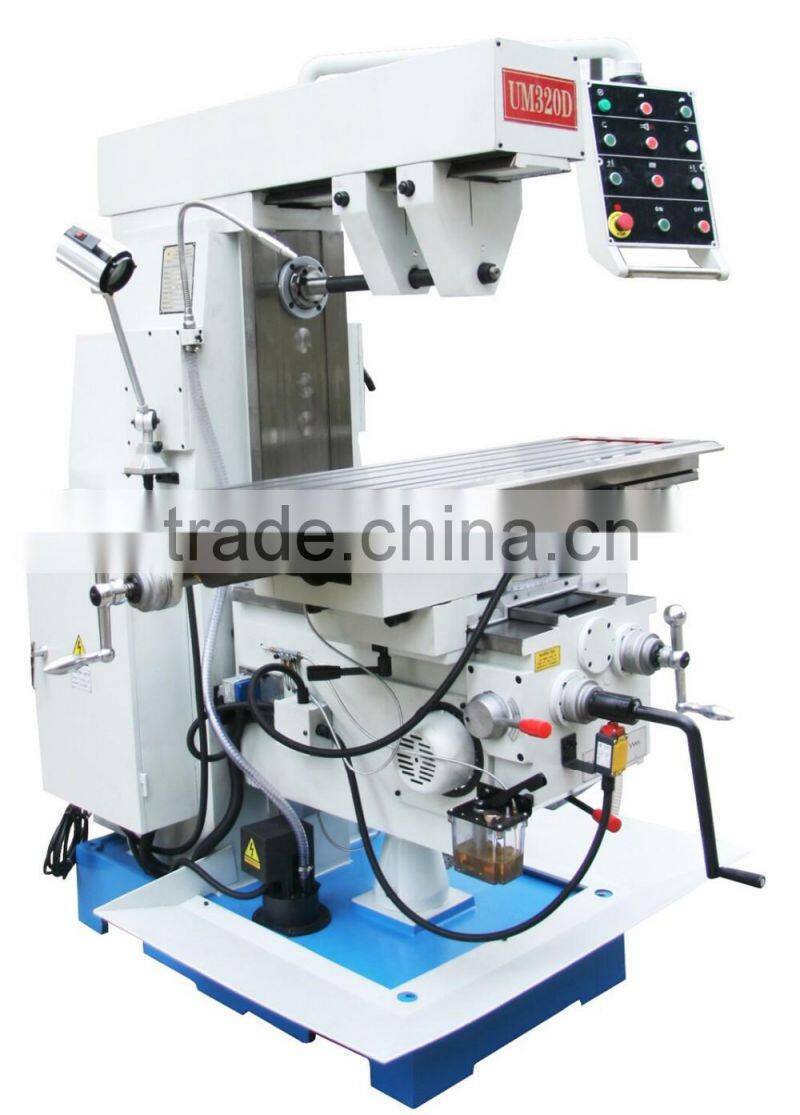

Horizontal Universal Milling Machine (Normal Miller)

UM320D

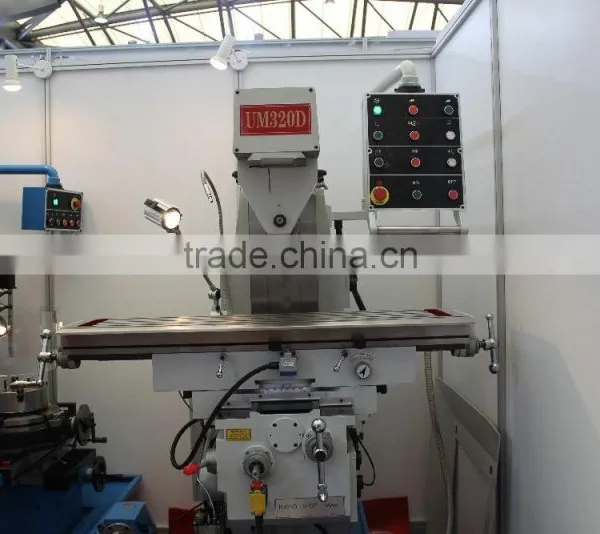

Main Outlook

Product Description

Features:

Rigid, heavy machine frame featuring proven knee and column design.
All three axis with automatic and rapid feeds by a gear box.

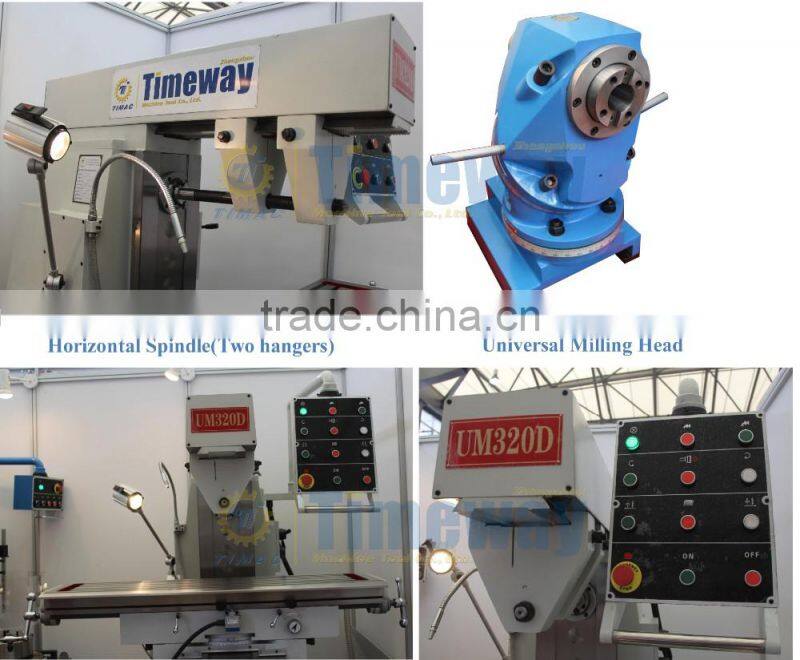

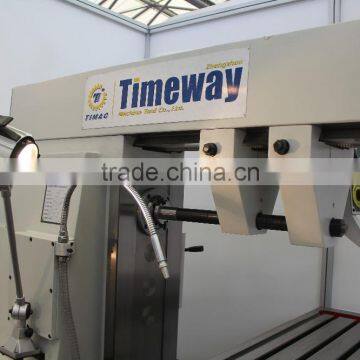

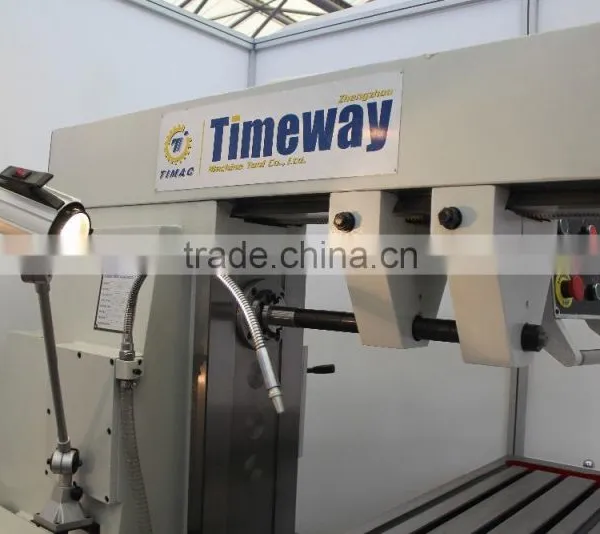

Equipped with two hangers, ensure to cutting stability.

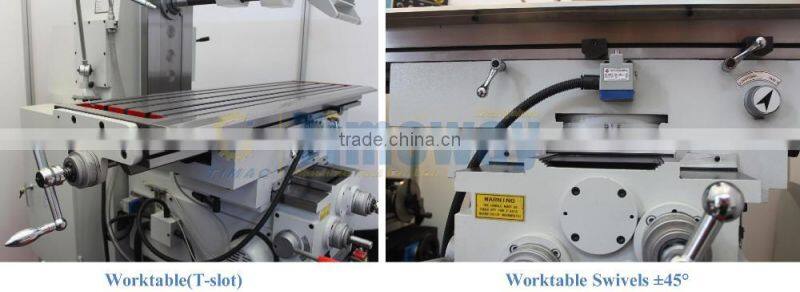

Worktable swivels ±45°, can achieve inclined cutting.
Standard equippment includes chip tray, coolant system and central lubrication system(manual or power).
Rectangular guideway on the Y/Z axes, high stability; dovetail guideway on the X axes; all guideways and gears are hardened and ground.

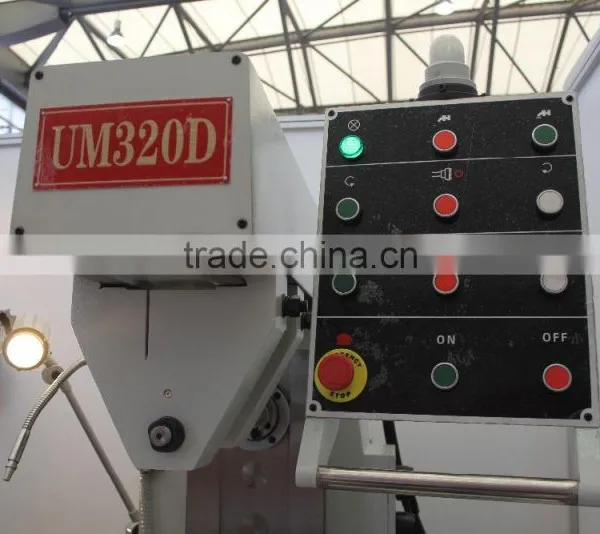

Centralized operation panel makes operation easier and digital readout is optional.

Technical Parameter

Specification	UM320D
Spindle taper	ISO40(V); ISO40(H)
Distance from vertical spindle nose to table	0-390mm
Distance from horizontal spindle centerline to table	0-280mm
Distance from vertical spindle centerline to column	465mm
Distance from horizontal spindle centerline to ram bottom	160mm

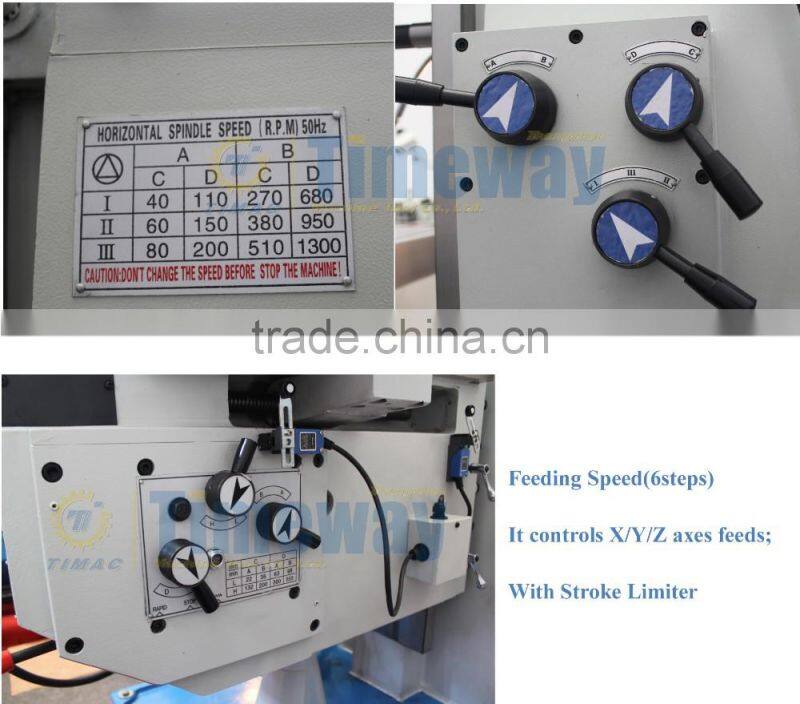

Spindle speed range	12 steps, 40-1300r.p.m
Swivel angle of milling head	±360°
Table size (L×W)	1250×320mm (1500×320mm)
Table travel (X/Y/Z)	600(800)/300/350mm (1100/300/350mm)
Table longitudinal & cross feed (X/Y)	8 steps, 22-555mm/min
Table vertical feed (Z)	8 steps, 17-190mm/min
X,Y-axis rapid feed speed	1080mm/min
Z-axis rapid feed speed	590mm/min
Feed motor power	750W
Max.loading of worktable	300kg
Table T-slots (No./Width/Pitch)	3/14/70mm
Z-axis guide way type	Rectangular
Y-axis guide way type	Rectangular
X-axis guide way type	Dovetail
Main motor power	2.2kw
Overall dimensions (L×W×H)	1700×1500×2150mm
Packing size (one/two sets)	1680×1600×2250mm/2300×1600×2250mm
N.W/G.W (one set)	1650/1800kg
