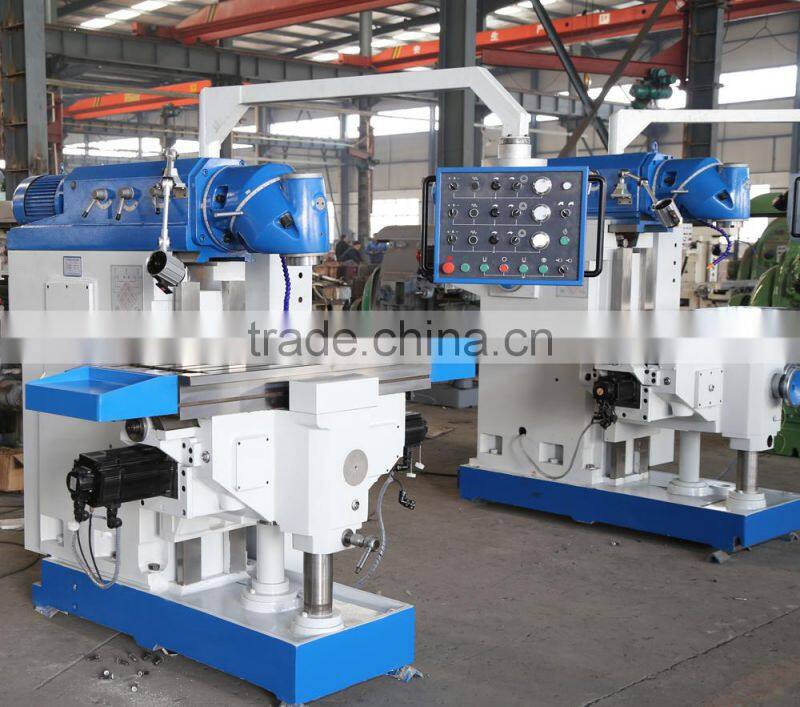

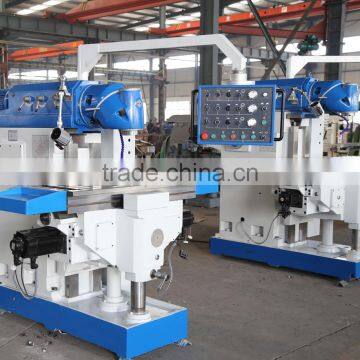

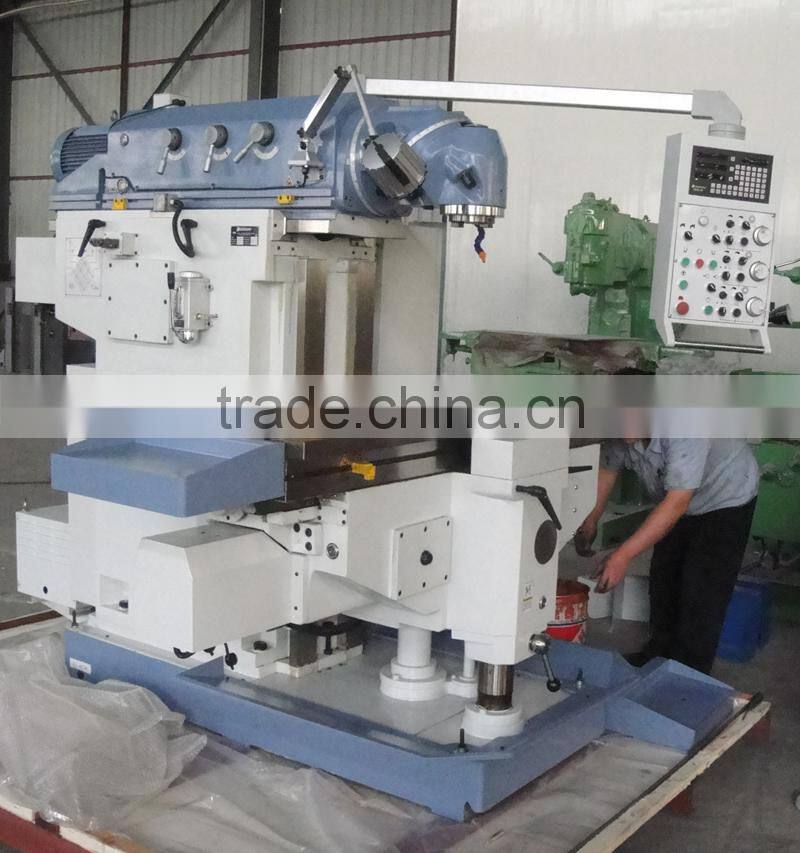

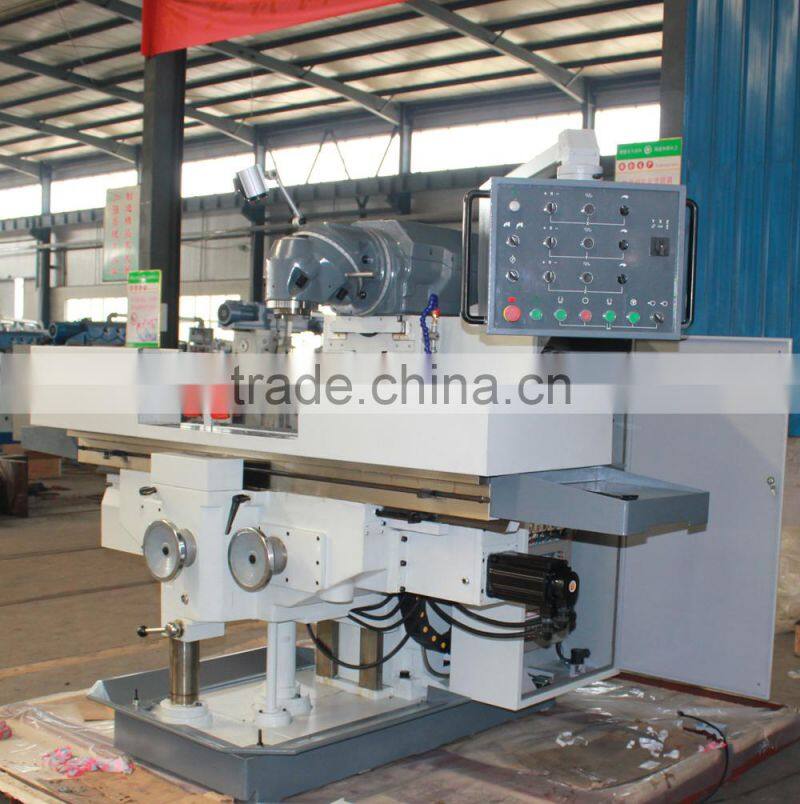

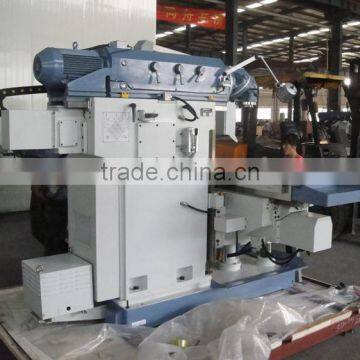

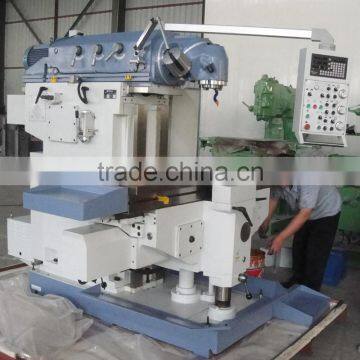

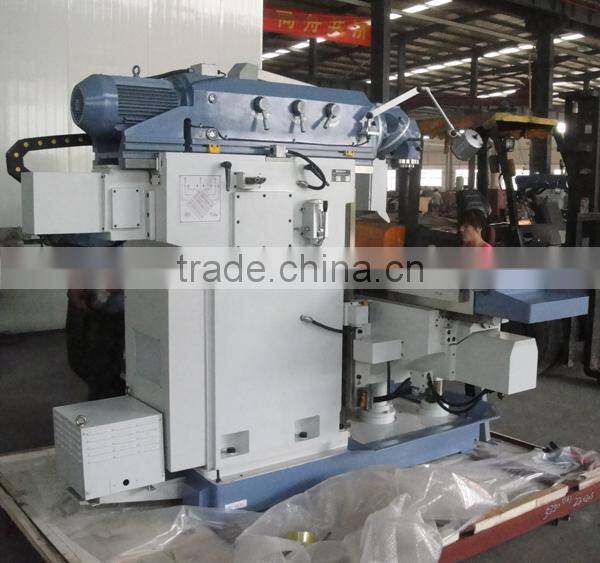

Swivel Head Milling Machine RUM500 (Servo)

Name: Swivel Head Milling Machine RUM500 (Servo)
Brand: TIMAC
SKU: 140796562
Availability: InStock

US$ 19,500 - 23,500 MOQ: 1 Set

Key Specifications

Condition:

New

Brand Name:

TIMAC

Model Number:

RUM500

Zhengzhou Timeway Machine Tool Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao Port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Brand Name TIMAC

Model Number RUM500

Type Vertical

CNC or Not Normal

Voltage As client's request

Power(W) 7.5kw

Dimension(L*W*H) 2625*2460*2080mm

Weight 5000kg

Certification CE, ISO9001:2008

Warranty 1 year after delivery

Product Description

Ram type Milling Machine RUM500

Key Feature:

• Extra large work table and wide 3-axis travel ranges;

• Stepless variable feed settings & rapid feed driven by Powerful servo motors on each axes;

• Ball screw in all axis providing smooth and accurate Operation;

• Universal head can swivel to any position within 360°;

• Dovetail guideway in X-axis, rectangular in Y & Z-axis.

Technical Specification:

Model	RUM460	RUM500
Table size (W×L)	460×1235mm	500×1600mm
Table travel (X/Y/Z)	900×650×450mm	1200×700×500mm
Table t-slots(No./Width/Pitch)	5-18-80mm	5-18-80mm
Max. loading of worktable	800kg	1800kg
Spindle taper	ISO40	ISO50
Spindle speed range	30-2050r.p.m (27steps)	30-2050r.p.m (27steps)
Swivel angle of milling head	360°	360°
Table longitudinal & cross feed (X/Y)	10-1000mm/min	10-1000mm/min
Table vertical feed (Z)	6-640mm/min	5-500mm/min
Table rapid speed (X/Y/Z)	2200/2200/1100mm/min	2200/2200/1100mm/min
Distance spindle - table surface	32-482mm	50-550mm
Distance spindle - column	47-697mm	28-728mm
Main motor power	5.5kw	7.5kw
Feed motor	AC servo motor X/Y:15NM; Z: 18NM
Overall dimensions (L×W×H)	1835×2362×2090mm	2625×2460×2080mm
Machine weight	4000kg	5000kg
