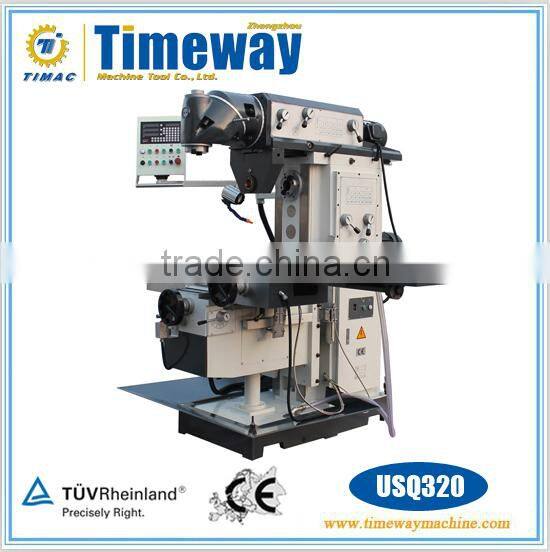

Swivel Head Milling Machine USQ320

Swivel Head Milling Machine USQ320 thumbnail-1
Swivel Head Milling Machine USQ320 photo-1
US$ 4,500 - 7,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Brand Name:
TIMAC
Model Number:
USQ320
Contact Supplier Request Quote Chat Now
Zhengzhou Timeway Machine Tool Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Brand Name TIMAC
Model Number USQ320
Type Vertical
CNC or Not Normal
Voltage As client's request
Power(W) 2.2 (V); 3kw (H)
Dimension(L*W*H) 1720*1680*1860mm
Weight 1900kg
Certification CE, ISO9001:2008
Warranty 1 year after delivery



Product Description



Swivel Head Knee type Milling Machine  USQ320







Swivel Head Milling Machine USQ320Swivel Head Milling Machine USQ320



  Key Feature:

• Hardened and ground table surface;

• Rectangular column guideway with high stability;

• Automatic & rapid feeds on X, Y, Z axes;

• Both horizontal spindle and swivel milling head;

• Stepless variable feed driven by servo motor.





  Technical Specification:



 Model

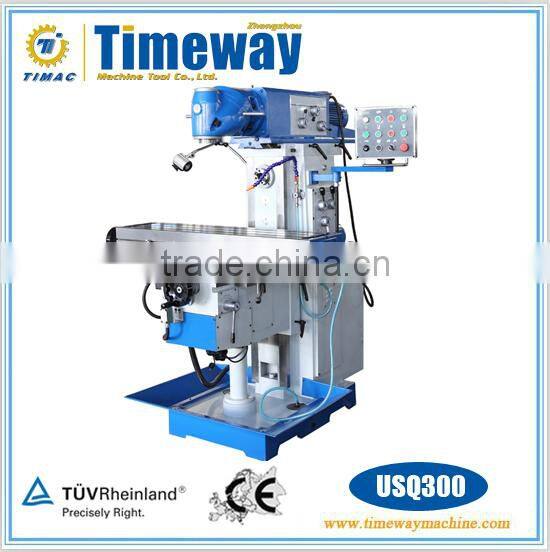

 USQ300

 USQ320

 Table size (W×L)

 300×1370mm

 320×1370mm

 Table travel (X/Y/Z)

 820×300×400mm

 820×300×400mm

 Table t-slots(No./Width/Pitch)

 3-14-80mm

 Spindle taper

 ISO40

 Spindle speed range - Vertical

 45-1660r.p.m (11steps)

                    - Horizontal

 35-1500r.p.m (12steps)

 Swivel angle of milling head

 ±360°

 Table feed (X/Y/Z)

  Stepless

 Table rapid speed (X/Y/Z)

1000/1000/750mm/min

 Vertical spindle - table

260-660mm

 Horizontal spindle - table

 75-475mm

 Horizontal spindle - arm

180mm

 Ram travel

400mm

 Main motor power

2.2 or 3kw (V);   3kw (H)

 Torque of X/Y/Z axis AC servo motor

10N.m

 Overall dimensions (L×W×H)

1720×1680×1860mm

 N.W/G.W

 1900/2100kg

 1925/21250kg

 Price (FOB China)









Standard Configuration:

7:24 Middle sleeve, Shell end mill arbor, Wrench, Inner hexagon spanner, Milling arbor, Milling Chuck, Draw bar, Cooling

system, Working light, Operator manual.



Options & Extra Cost:

Worktable swivel ±45°

3-axis SINO D.R.O

58pcs clamping kit

Machine vise

Dividing head

Rotary table



Packaging & Shipping

Swivel Head Milling Machine USQ320



Package:  Wooden pallet & plastic cover  (Standard)

                    or Plywood case (Optional)



Packing size: 2.3 x 1.77 x 1.78M           N.W./G.W.: 2900/3100kg



Container loaded: 3 sets / 20'GP
