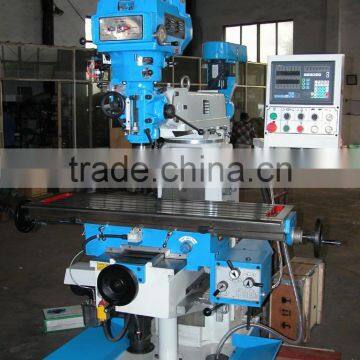

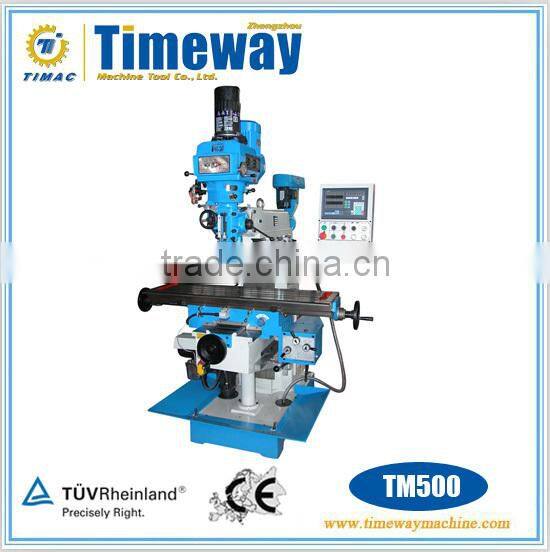

H/V Head Auto-feeding Turret Milling Machine TM500
Features :
Turret Milling Machine
1. Hardened and ground table surface;

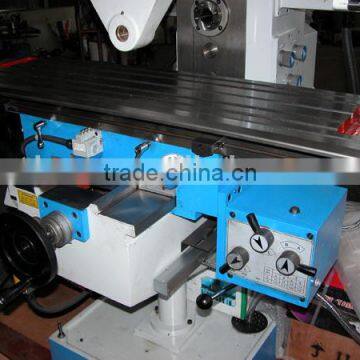

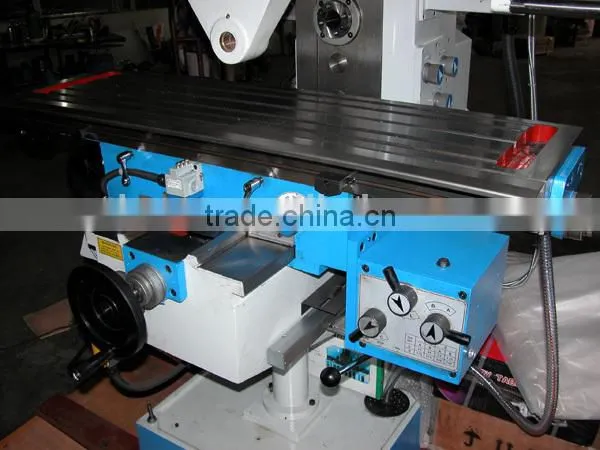

2. Automatic feeds on X, Y axes, motorized rise and fall of table on Z axis;
3. Spindle sleeve can tap, automatic feed with 3 speeds;

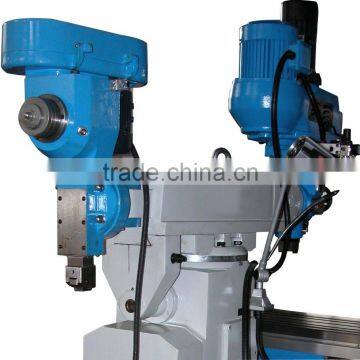

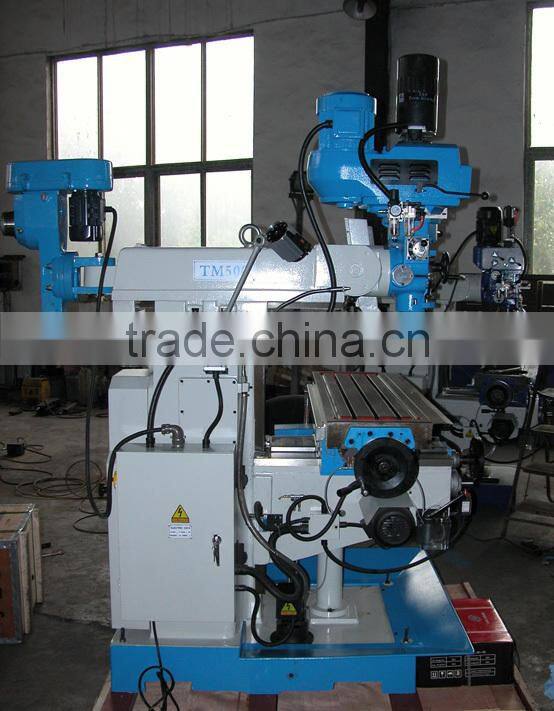

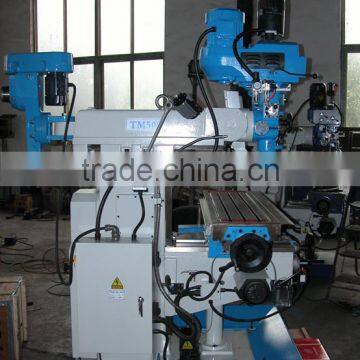

4. Headstock swivels ±90° from right to left, tilt ±45° from forth to back (TM500)
5. Drill depth stop with display of measurement;
6. Rectangular column guide way with high stability (TM600, TM700, TM800)
Parameter:
Model | Unit | TM500 | TM600 | TM700 | TM800 |
Table size | mm | 320 x 1250 | 320 x 1250 | 320 x 1250 | 360 x 1250 |
Spindle taper
| ISO40(V), ISO40(H) | ISO40(V), ISO40(H) | ISO40(V), ISO40(H) | ISO40(V), ISO50(H) | |
Diameter of quill | mm | 95 | 120 | 120 | 120 |
Distance from spindle to table | mm | 9 ± 0-370 | 90-490 | 90-490 | 135-535 |
Distance from horizontal spindle to table | mm
| 0-280 | 0-400 | 0-400 | 230 |
Distance from spin dle to column | mm | 200-700 | 200-700 | 200-700 | 200-700 |
Spindle speed
| r.p.m
| (16steps) 80-5440(V), (12steps) 40-1300(H)
| (16steps) 70-7200(V), (12steps) 40-1300(H)
| (16steps) 70-7200(V), (12steps) 40-1300(H)
| (16steps) 70-7200(V), (12steps) 60-1800(H)
|
Spindle travel | mm | 127 | 145 | 145 | 145 |
Quill feed
| mm
| (3steps)0.15,0.08,0.25 | (3steps)0.4,0.08,0.15 | (3steps)0.4,0.08,0.15 | (3steps)0.4,0.08,0.15 |
Max. drilling capacity of auto-feeding | mm
| 10 | 10 | 10 | 10 |
Head swivel(right to left) | ±90° | ±90° | ±90° | ±90° | |
Head tilt(fore to back) | ±45° | ||||
Table travel(Longitudinal/Cross/Verical) | mm
| 600/300/280 | 600/300/400 | 800/300/400 | 1000/320/400 |
X,Y axes feed speed | mm/min | 22-555 | 22-555 | 22-555 | 22-555 |
X,Y axes rapid feed speed | mm/min | 1080 | 1080 | 1080 | 1080 |
Z axis rapid elevate speed | mm/min | 590 | 590 | 590 | 590 |
Z axis rapid elevate motor power | w | 750 | 750 | 750 | 1100 |
Max. weight of workpiece | kg | 300 | 300 | 300 | 400 |
T slot(No./width/distance) | mm | 3/14/70 | 3/14/70 | 3/14/70 | 3/18/80 |
Main motor | kw | 2.2(V), 2.2(H) | 3.75(V), 2.2(H) | 3.75(V), 2.2(H) | 5.5(V), 4(H) |
X,Y axes auto-feed drive motor | w | 750 | 750 | 750 | 750 |
Coolant pump power | w | 40 | 40 | 40 | 90 |
Overall dimension | mm | 1700x1500x2150 | 1700x1500x2270 | 1780x1500x2270 | 2220x1790x2360 |
N.W./G.W. | kg | 1450/1600 | 1550/1650 | 1650/1750 | 2450/2650 |
***Standard:
5HP Taiwan made step pulley type milling head, Mill chuck&collets, draw bar, machine vise, horizontal mill arbor, coolant system, work lamp, table elevating motor, convergent panel, wrench, spanner, middle sleeve, elevating rotary handle, oil collecting plate, operation manual(English edition).
