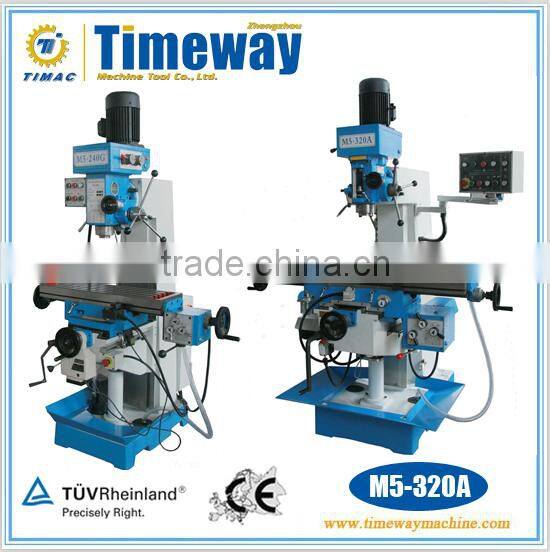

Milling Dilling Machine M5-240G
Technical Specification:
Model |
Unit |
M5-240G |
M5-320G |
Spindle Taper |
|
ISO30, ISO40, MT4 |
ISO30, ISO40, MT4 |
Distance from spindle to column |
mm |
270 |
270 |
Distance from spindle nose to table surface |
mm |
490 |
500 |
Spindle speed range |
rpm |
8steps 115~1750 |
8steps 90~2000 |
Spindle travel |
mm |
120 |
120 |
Worktable feed speed on X,Y axes |
mm/min |
22~430 |
22~555 |
Rapid feed on X, Y axes |
mm/min |
1080 |
1080 |
Rapid feed on Z axes |
mm/min |
- |
590 |
Max.vertical milling dia |
mm |
32 |
32 |
Max.face milling dia |
mm |
100 |
100 |
Max. drilling diameter |
mm |
50 |
50 |
Milling head swivel angle |
|
±45° |
±45° |
Table size |
mm |
1000x240 |
1250x320 |
Table travel |
mm |
490x230 |
600x300 |
T -slot (No.-width-pitch) |
mm |
3/14/60 |
3/14/70 |
Slide way (Vertical/Cross/Longitudinal) |
|
dovetail/dovetail/dovetail |
dovetail/rectangular/dovetail |
Main motor power |
kw |
0.85/1.5 |
2.2 |
X axis feed power |
w |
370 |
750 |
Z axis feed power |
w |
- |
750 |
Coolant pump |
w |
40 |
40 |
MAX.Swivel angle of the table |
|
±45° |
±45° |
Max. loading weitght of worktable |
kg |
200 |
300 |
N.W / G.W |
kg |
800/900 |
1350/1450 |
Standard Configuration:
Gear box power feed for X axis,
Mill chuck & collets,
Draw bar, Coolant system, Work lamp,
Table elevating motor, Convergent panel,
Wrench, Spanner, Middle sleeve,
Oil collecting plate,
Operation manual(English edition).
Options & Extra Cost:
Electronic power feed for Y axis,
Turret milling head, Machine vise,
3-axis digital readout (DRO),
Rotary table, Dividing head.
Package: Wooden pallet & plastic cover (Standard)
or Plywood case (Optional)
Packing size: 2.46 x 2.27 x 2.28M N.W./G.W.: 4640/5000kg
Container loaded: 2 sets / 20'GP
