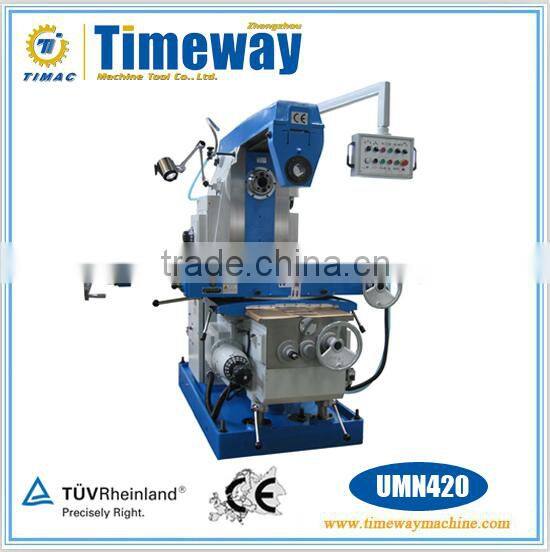

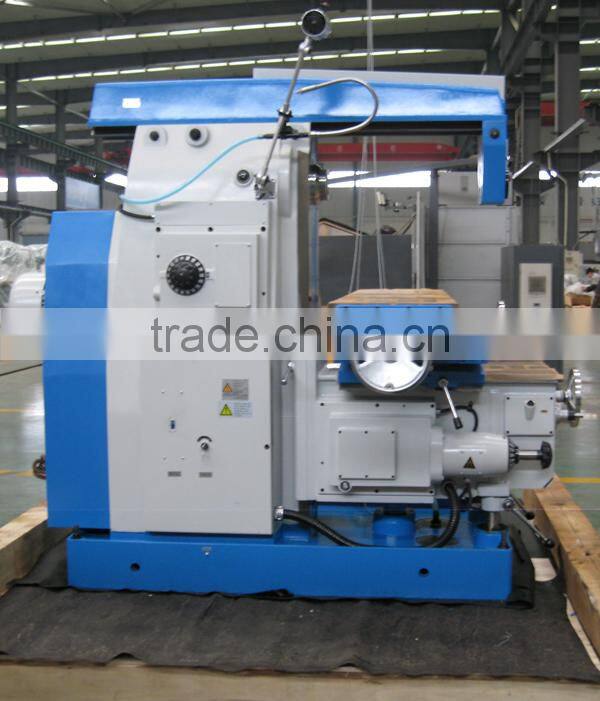

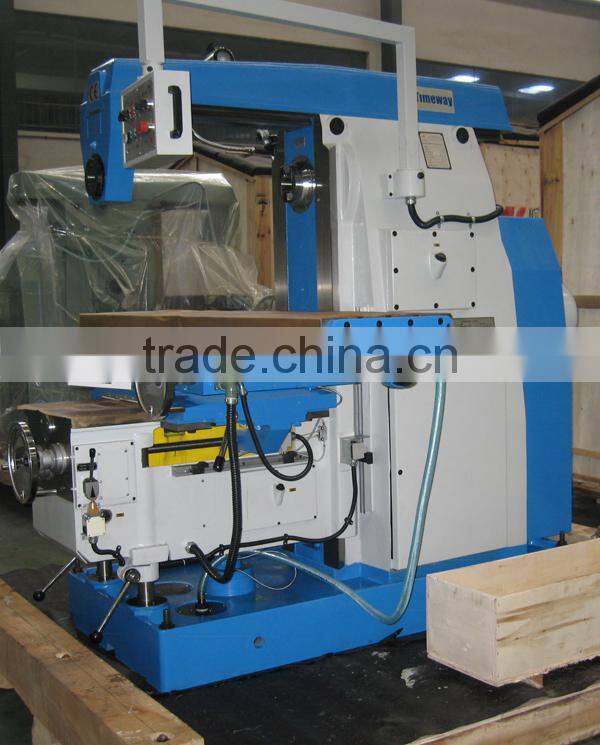

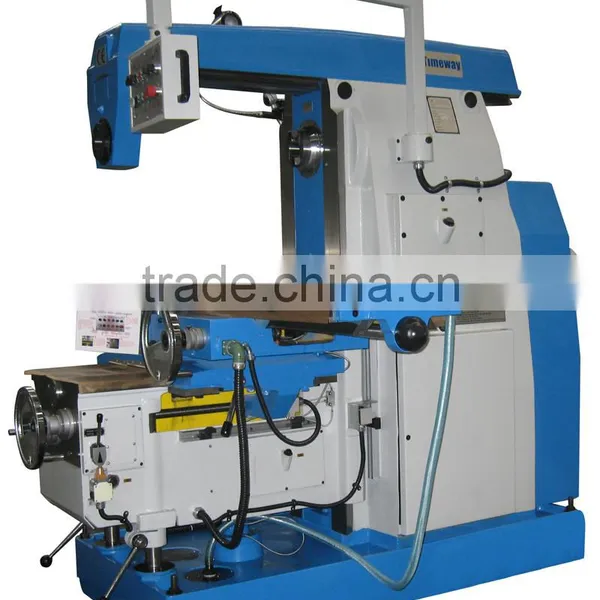

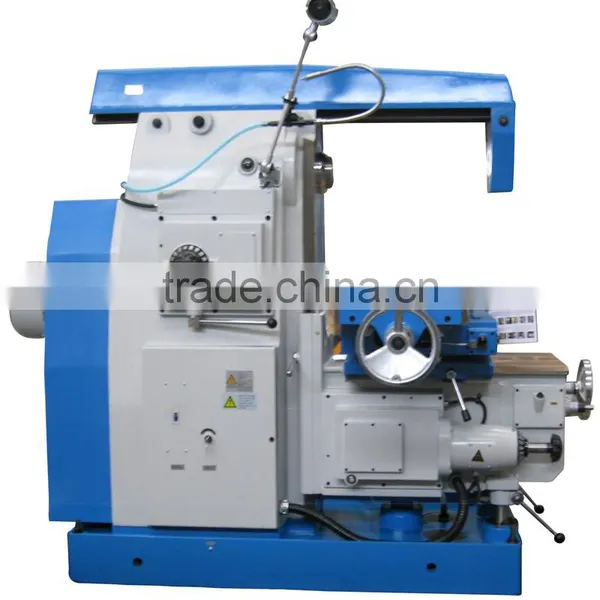

Horizontal Knee Type Milling Machine UMN420

Name: Horizontal Knee Type Milling Machine UMN420
Brand: TIMAC
SKU: 140796570
Availability: InStock

Zhengzhou Timeway Machine Tool Co., Ltd.

US$ 19,500 - 22,500 MOQ: 1 Set

Key Specifications

Condition:

New

Brand Name:

TIMAC

Model Number:

UMN420

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai Port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Brand Name TIMAC

Model Number UMN420

Type Horizontal

CNC or Not Normal

Voltage As client's request

Power(W) 11kw

Dimension(L*W*H) 2460*2270*2280mm

Weight 4640kg

Certification CE, ISO9001:2008

Warranty 1 year after delivery

Product Description

Horizontal Knee Type Milling Machine UMN420

Key Features:

• It is suitable to process flat, inclined surface, slots and gears on miscellaneous work pieces

• With enough rigidity, it can bear heavy processing

• Hardened and ground slide ways

• Automatic feeds on X, Y, Z axes

• Worktable can swivel ±45°

Technical Specification:

Model	UMN420	UMN320
Table size (W×L)	420×1800mm	320×1600mm
Table travel (X/Y/Z) - Manual	1280×360×470mm	1020×300×410mm
- Auto.	1250×350×450mm	1000×280×400mm
Table t-slots(No./Width/Pitch)	3-18-90mm	3-18-80mm
Max.rotary angle of worktable	±45°	±45°
Max.loading of worktable	800kg	550kg
Spindle taper	7:24, No.50	7:24, No.50
Spindle speed range	30-1500r.p.m (18steps)	30-1500r.p.m (18steps)
Arbor diameter	φ32,φ50mm	Φ22,φ27,φ32mm
Table longitudinal & cross feed (X/Y)	22-1100mm/min	15-750mm/min
Table vertical feed (Z)	8.3-410mm/min	5.7-280mm/min
Table rapid speed (X/Y/Z)	2400/2400/900mm/min	2250/2250/844mm/min
Spindle nose - worktable	30-500mm	30-440mm
Horizontal spindle - arm	155mm	155mm
Main motor power	11kw	7.5kw
Feed motor	3kw	1.5kw
Overall dimensions (L×W×H)	2522×2262×2047mm	2327×2067×1720mm
Packing size (L×W×H)	2460×2270×2280mm	2220×2180×2280mm
N.W/G.W	4640/5000kg	3300/3500kg
Price (FOB China)
