Home > Products > Conventional Milling Machine > Swivel Head Milling Machine USQ300

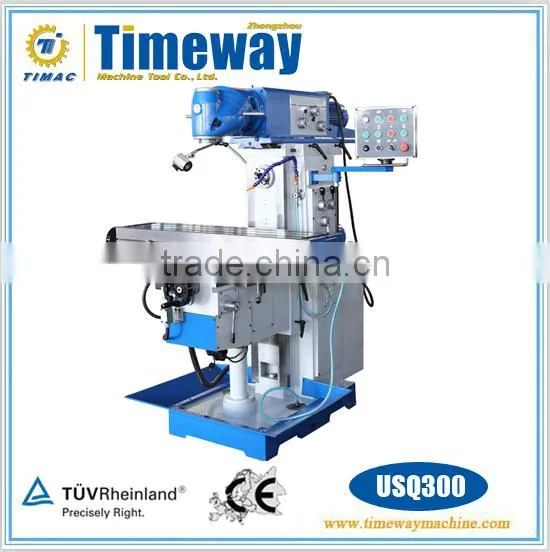

Swivel Head Milling Machine USQ300
- 60 Set / Sets per Month
- Qingdao Port
- T/T
You May Like
Product Details
| Condition | New | Brand Name | TIMAC | |
| Model Number | USQ300 | Type | Vertical | |
| CNC or Not | Normal | Voltage | As client's request | |
| Power(W) | 2.2 (V); 3kw (H) | Dimension(L*W*H) | 1720*1680*1860mm | |
| Weight | 1900kg | Certification | CE, ISO9001:2008 | |
| Warranty | 1 year after delivery |
Product Description
Swivel Head Knee type Milling Machine USQ300
Key Feature:
• Hardened and ground table surface;
• Rectangular column guideway with high stability;
• Automatic & rapid feeds on X, Y, Z axes;
• Both horizontal spindle and swivel milling head;
• Stepless variable feed driven by servo motor.
Technical Specification:
Model | USQ300 | USQ320 |
Table size (W×L) | 300×1370mm | 320×1370mm |
Table travel (X/Y/Z) | 820×300×400mm | 820×300×400mm |
Table t-slots(No./Width/Pitch) | 3-14-80mm | |
Spindle taper | ISO40 | |
Spindle speed range - Vertical | 45-1660r.p.m (11steps) | |
- Horizontal | 35-1500r.p.m (12steps) | |
Swivel angle of milling head | ±360° | |
Table feed (X/Y/Z) | Stepless | |
Table rapid speed (X/Y/Z) | 1000/1000/750mm/min | |
Vertical spindle - table | 260-660mm | |
Horizontal spindle - table | 75-475mm | |
Horizontal spindle - arm | 180mm | |
Ram travel | 400mm | |
Main motor power | 2.2 or 3kw (V); 3kw (H) | |
Torque of X/Y/Z axis AC servo motor | 10N.m | |
Overall dimensions (L×W×H) | 1720×1680×1860mm | |
N.W/G.W | 1900/2100kg | 1925/21250kg |
Price (FOB China) |
| |
Standard Configuration:
7:24 Middle sleeve, Shell end mill arbor, Wrench, Inner hexagon spanner, Milling arbor, Milling Chuck, Draw bar, Cooling
system, Working light, Operator manual.
Options & Extra Cost:
Worktable swivel ±45°
3-axis SINO D.R.O
58pcs clamping kit
Machine vise
Dividing head
Rotary table
Package: Wooden pallet & plastic cover (Standard)
or Plywood case (Optional)
Packing size: 2.3 x 1.77 x 1.78M N.W./G.W.: 2900/3100kg
Container loaded: 3 sets / 20'GP
If you have any queries please give us a
call or send us a message.
We will be happy to assist you!
