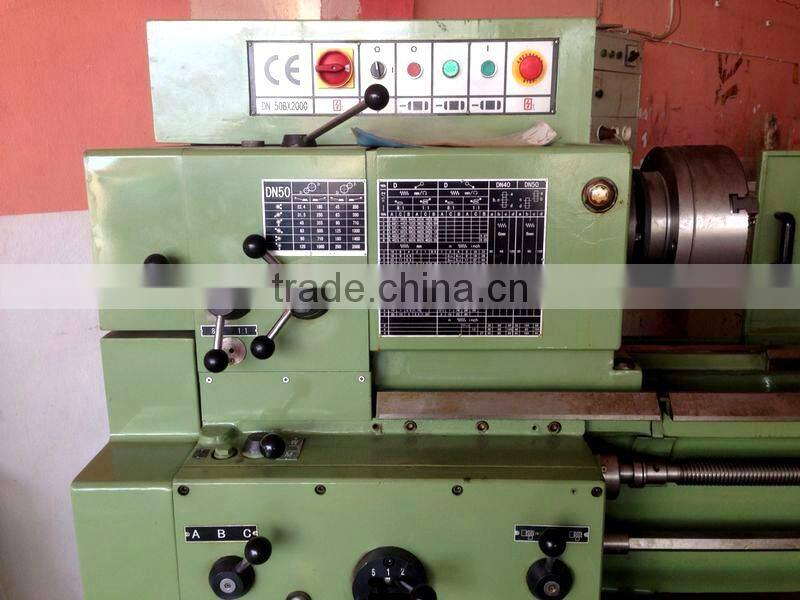

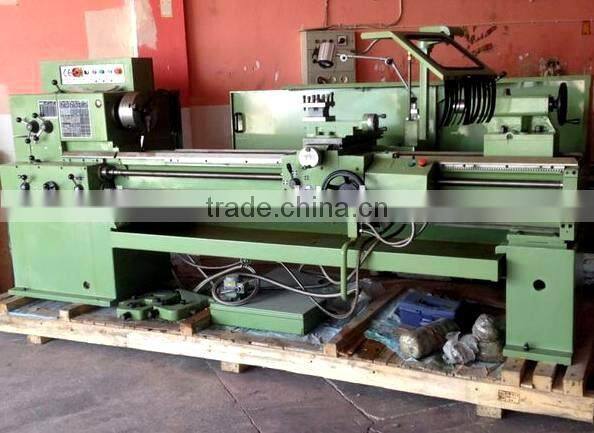

torno , 20" Universal Center Lathe
Feature:

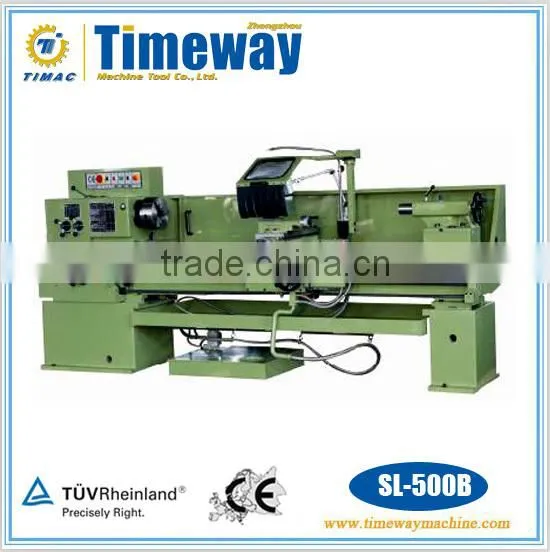

1.SL-500B is a universal centre lathe designed for piece and small series production,which id also suitable for
maintenance in repair workshops. This is a customer classic lathe with main motor ouput of 5.5 kw. It is
characterized by wide range of operating speed and its unique design guarantee high stability at material machining.
2.Wide working range and optional selection of accessories and executions also represent an advantage of the
lathe.
Standard Accessories:
3 jaw chuck, 4 jaw chuck, Face plate, Steady rest, Follow rest, Dead center, Oil gun, Coolant system
Working light, General tools, Foundation bolts, Operation manual(English edition).
Optional Accessories:
2-axes DRO, Quick change tool post, Taper turning attachment, CE execution
Parameter :
Specification | Unit | SL-500B | |
Working range | |||
Max.swing over bed | mm | 500 | |
Max.swing over cross slide | mm | 270 | |
Max.swing in gap | mm | 700 | |
Width of gap | mm | 230 | |
Distance between centers | mm | 1000/1500/2000 | |
Height of centers | mm | 250 | |
Spindle | |||
Spindle speed | mm/min | 22-2000 | |
Spindle nose |
| STN ISO 702/111-B6 | |
Spindle bore | mm | 52 | |
Internal taper of spindle |
| Morse 6 | |
Limit speed for max.torque | mm/min | 1200/45 | |
Travel | |||
Travel of cross slide | mm | 300 | |
Travel of tool slide | mm | 140 | |
Max.size of tool | mm | 32×20 | |
Number of transverse feed |
| 38 | |
Range of longitudinal feed | mm | 0.05-6.4 | |
Range of cross feed | mm | 0.025-3.2 | |
Longitudinal rapid travel | mm/min | 3000 | |
Cross rapid travel | mm/min | 1500 | |
Tailstock | |||
Dia.of tailstock sleeve | mm | 70 | |
Travel of tailstock sleeve | mm | 180 | |
Internal taper of tailstock sleeve |
| Morse 5 | |
Cross resetting | mm | ±12 | |
Threads | |||
Metric threads | number |
| 39 |
range | mm | 0.5-40 | |
Inch threads | number |
| 38 |
range |
| 1-80 thread/1" | |
Module threads | number |
| 26 |
range | mm | 0.25-20 | |
Diametral pitch threads | number |
| 31 |
no.of DP threads |
| 2-72 | |
Motor | |||
Total power input |
| 6.6 | |
Voltage |
| as your requirement | |
Main motor | kw | 5.5 | |
Coolant pump | kw | 0.09 | |
Motor of rapid travel | kw | 0.55 | |
Weight of workpiece | |||
piece weight between centers | kg | 300 | |
piece weight in chuck | kg | 80 | |
Overall dimension(L×W×H) | mm | 2640/3145/3630×1100×1505 | |
Machine weight | kg | 1735/1835/1940 | |
