Home > Manufacturing & Processing Machinery > Machine Tools > Lathe > Torno / Heavy Duty Horizontal Lathe Machine ( AL- 800 / AL-1000 )

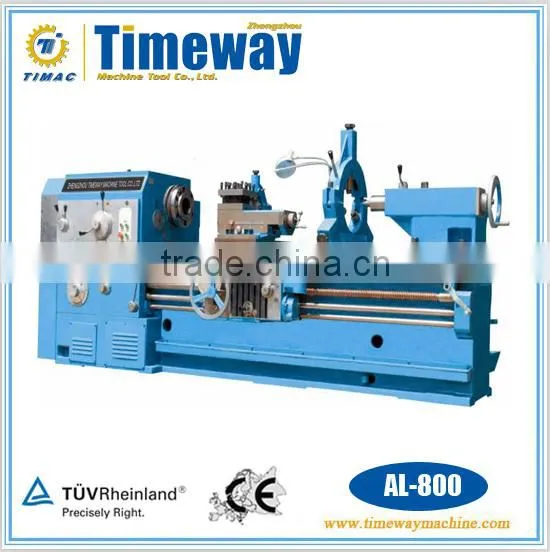

Torno / Heavy Duty Horizontal Lathe Machine ( AL- 800 / AL-1000 )

Name: Torno / Heavy Duty Horizontal Lathe Machine ( AL- 800 / AL-1000 )
Brand: TIMAC
SKU: 140796514
Availability: InStock

Zhengzhou Timeway Machine Tool Co., Ltd.

Torno / Heavy Duty Horizontal Lathe Machine ( AL- 800 / AL-1000 ) thumbnail-1

Torno / Heavy Duty Horizontal Lathe Machine ( AL- 800 / AL-1000 ) photo-1

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Condition:

New

Type:

Horizontal

CNC or Not:

Normal

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

China port

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Horizontal

CNC or Not Normal

Automatic Grade Manual

Max. Swing Diameter 800mm/1000mm

Brand Name TIMAC

Model Number AL-800 AL-1000

Voltage as customer's request

Power(W) 11kw

Dimension(L*W*H) 3180*1630*1450mm

Certification CE & ISO

After-sales Service Provided Engineers available to service machinery overseas

Heavy-duty Horizontal Lathe Machine For Sale with Detailed Specification AL-800 AL-1000

Product Description

Features :

These Horizontal lathe are suitable for turning internal and external cylindrical, concial and swing surface as well as various metric, inch, module, diametral pitch threads.They can also be used for broaching oil grooves and key ways.

1.Casted in whole piece, box typr internal structure, of high rigidity, with hardened guideway.This rigidity is high.

The precision is stable. And these lathes can carry out strong force cutting.

2.On apron, there is a device, operated by a single lever, used for rapid traverse of the carriage.Spindle's braking

and rotating direction change is controlled by hydraulic system, or by hand operation, all to user's choice.
3.The saddle guideway is glued by "TSF" soft belt wear resisting materials.
4.The top slide can be used indenpendently for turning of short cone, in combination with longitudinal feeding, it can

also turn long taper surface.

Standard Accessories :

3 jaw chuck, Steady rest, Follow rest, Dead center, Oil gun, Coolant pump, Working light, General tools, Foubdation bolts, Operation manual(English edition).

Optional Accessories :

2/3-axes DRO, Grinding attachment, 4 jaw chuck, Taper turning attachment, CE execution.

Parameter :

Specification		Unit	AL-800	AL-1000
Capacity	Swing over bed	mm	800	1000
	Swing over cross slide	mm	480	630
	Max.length of workpiece	mm	1000/1500/2000/3000/4000/5000/6000/7000/8000
	Max.turning length	mm	850/1350/1850/2850/3850/4850/5850/6850/7850
	Width of bed	mm	600
	Max.weight of workpiece	kg	3000
Spindle	Spindle nose		C11 (optional:15)
	Dia.of spindle hole	mm	100 (optional:140)
	Taper hole of spindle	mm	1:20 / 150
	Spindle speed(forward)	r/min	18kinds, 5.5-750
	Spindle speed(reverse)	r/min	6kinds, 10-775
Feed	Longitudianl feed range	mm/r	64kinds, 0.1-24.32
	Cross feed range	mm/r	64kinds, 0.05-12.16
	Screw pitch of leadscrew	mm	12
	No.& range of metric threads	mm	50kinds, 1-240
	No.& range of inche threads	T.P.I.	26kinds, 14-1
	No.& range of module threads	mm	63kinds, 0.5-120
	No.& range of diametrical pitch threads	D.P.	24kinds, 28-1
	Rapid traverse speeed of carriage	mm/min	4000
Toolpost	Distance between spindle centerline and tool resting plane	mm	33
	Section of toolshank	mm	32
	Swing range of toolpost		±90º
	Max.travel of top slide	mm	200
	Max.travel of cross slide	mm	500
Tailstock	Dia.of tailstock quill	mm	100
	Travel of tailstock quill	mm	250
	Taper hole of tailstock quill		Morse 6
Power	Main motor power	kw	11
	Power of rapid move motor	kw	1.1
	Power of cooling pump	kw	0.9
Dimension	Length	mm	3180/3670/3985/5165/5220/7400/8260/10220
	Width	mm	1630	1730
	Height	mm	1450
