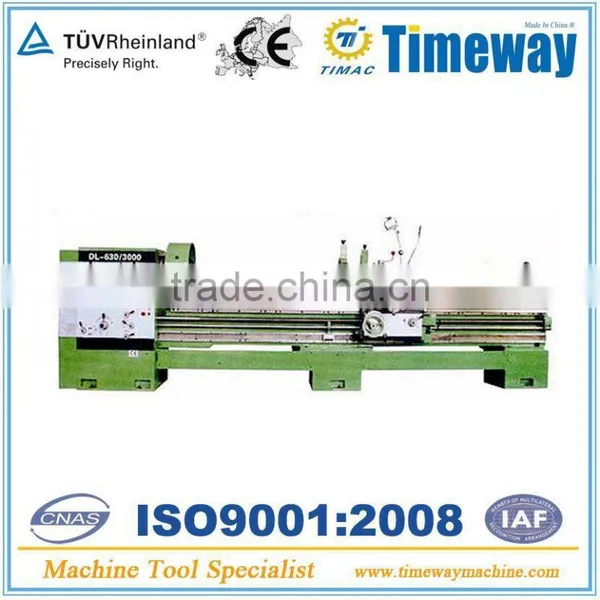

Torno / Horizontal Heavy Duty Lathe Machine( DL-630 )

Name: Torno / Horizontal Heavy Duty Lathe Machine( DL-630 )
Brand: TIMAC
SKU: 140796512
Availability: InStock

Zhengzhou Timeway Machine Tool Co., Ltd.

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Type:

Horizontal

CNC or Not:

Normal

Payment & Shipping

Payment Methods:

Port of Shipment:

China port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Horizontal

CNC or Not Normal

Automatic Grade Manual

Max. Swing Diameter 630mm

Brand Name TIMAC

Model Number DL-630

Voltage as customer's request

Power(W) 7.5 kw

Certification CE & ISO

After-sales Service Provided Engineers available to service machinery overseas

Horizontal Heavy Duty Lathe Machine With Low Price( DL-630 )

Product Description

Features :

1. The series products are high speed and large spindle hole lathes.

2. It has a wide range in machining the thick bars and the pipes of the large diameter below Ø118mm,

it is suitable for machining all kinds of swivelling workpiece.

3. Large spindle bore (Ø120mm).

4. High accuracy and low noise for its hardened and ground gears in the headstocks.

5. New slide bearing patented by the state has good antivibrition and constant spindle accuracy.

6. According to the user’s order, the lengthened machine can be equipped with double aprons.

7. Rapid removing device used by apron with high efficiency.

Standard Accessories :

4 jaw chuck , steady rest , follow rest , dead center , revoving center ,light , coolant pump , tool

Parameter :

Model	Unit	DL-630
Max. Swing diameter over bed	mm	630
Max. Swing diameter over cross slide	mm	390
Max. Swing over gap	mm	830
Width of bed	mm	410
Max. Length of workpiece	mm	1000-8000
Spindle nose		D11 or D1-11
Spindle bore diameter	mm	120
Taper of spindle bore		Metric NO.120#
Range of spindle speed	rpm	12-1000 (18 kinds)
Longitudinal feed range	mm/r	0.082-1.59 (36 kinds)
Transverse feed range	mm/r	0.027-0.522 (35 kinds)
Metric thread range	mm	1-192 (57kinds)
Inch thread range	T.P.I	2-24 (30kinds)
Module thread range	M.P	0.25-48 (40kinds)
Diametrical thread range	D.P	1-96 (37kinds)
Tailstock sleeve taper		Morse NO.5
Tailstock sleeve diameter	mm	100
Tailstock sleeve travel	mm	250
Main motor power	kw	7.5
Rapid motor power	kw	0.25
Coolant pump power	kw	0.125
