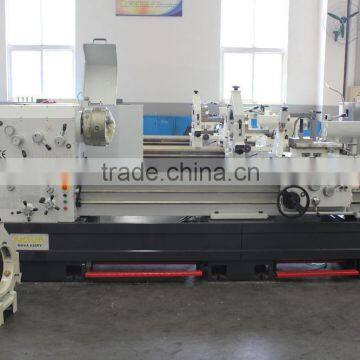

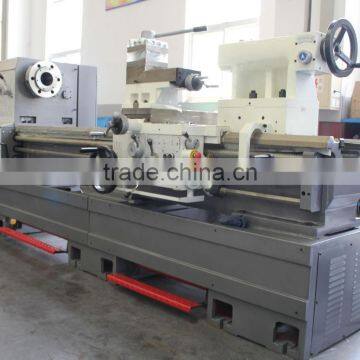

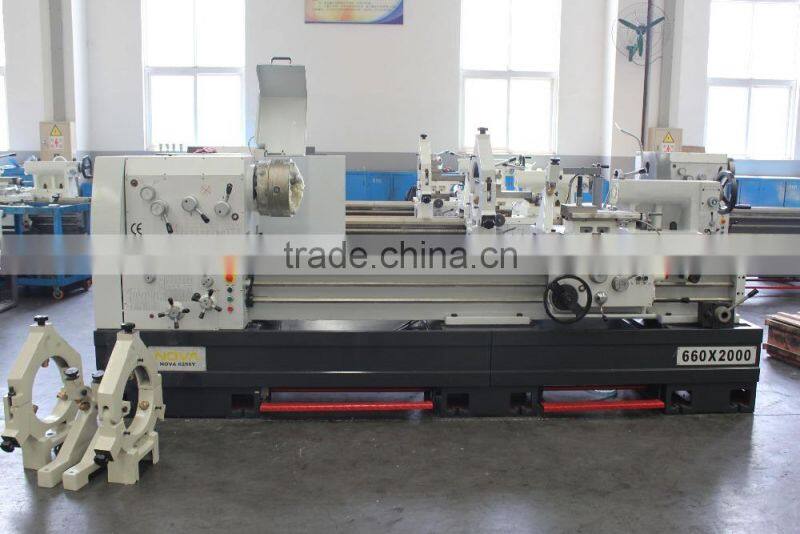

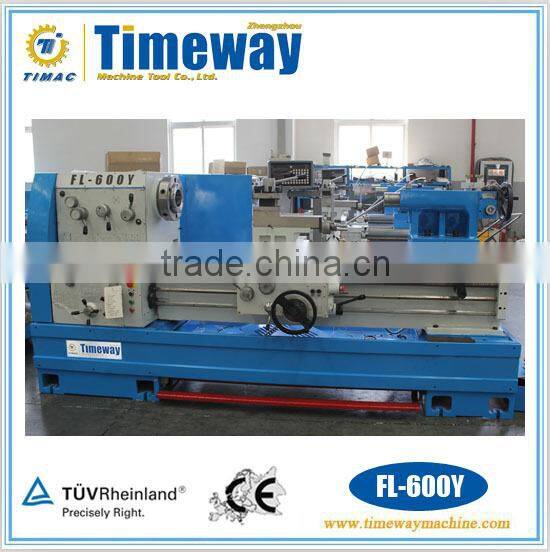

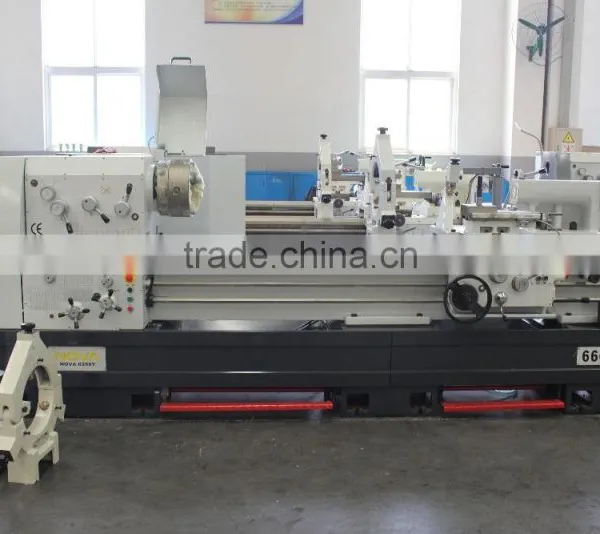

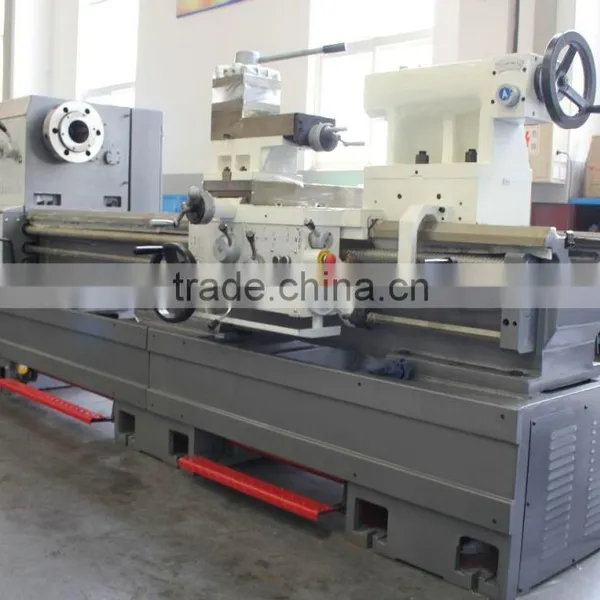

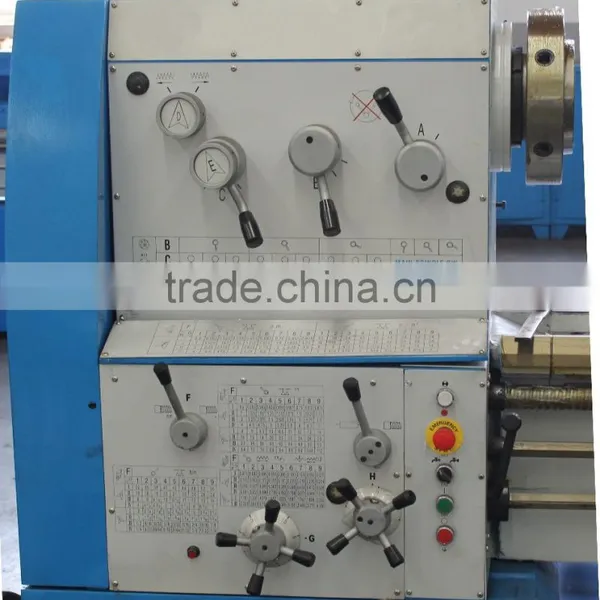

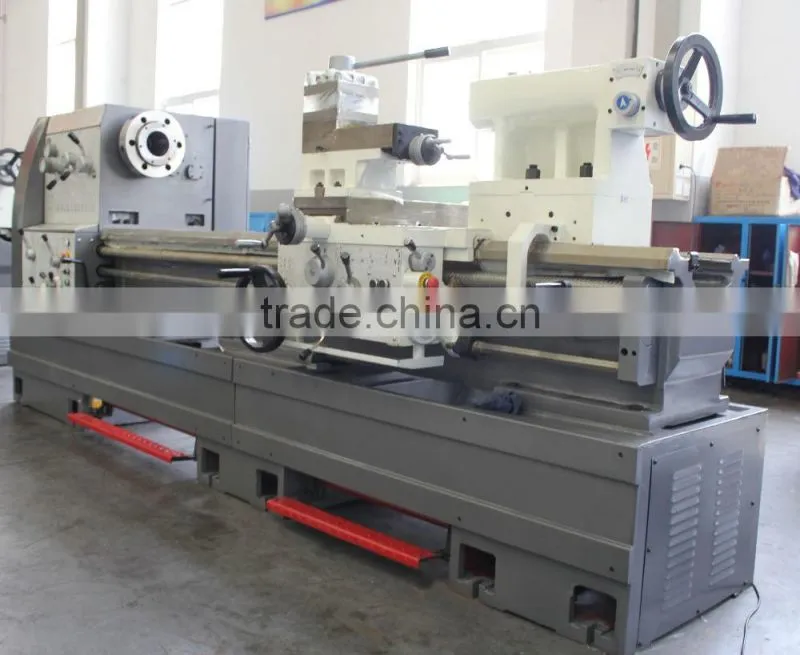

Precision Gap-bed Lathe FL-600Y
Feature:
1. Precision ground;

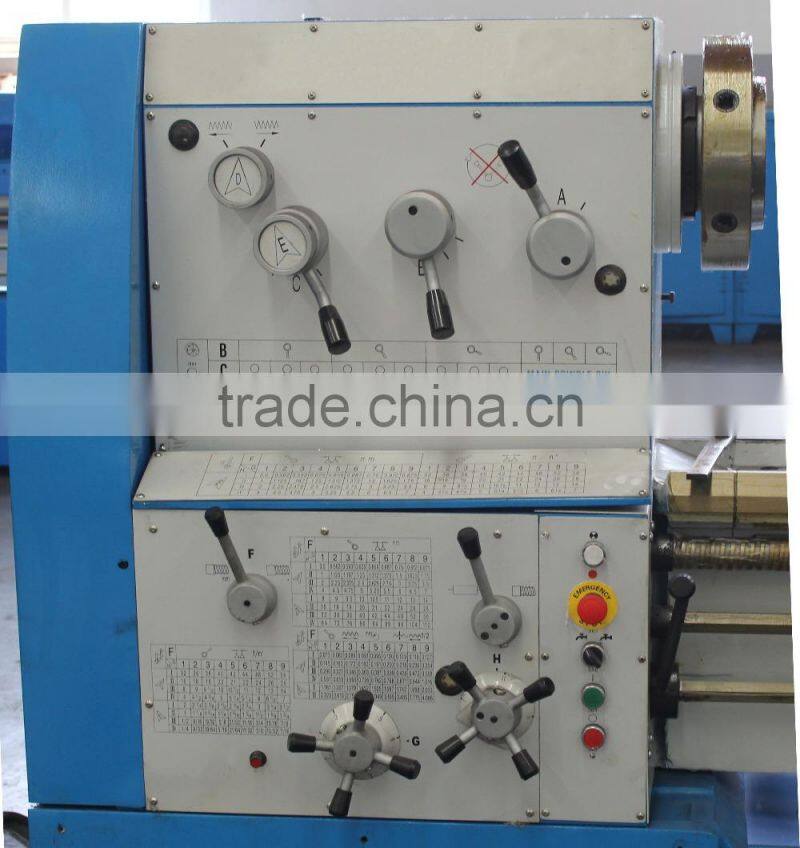

2. Clutched head stock;
3. Safety torque limiting device for lead screw;
4. Safety overload clutch for feed rod;
5. Rapid traverse
6. Main spindle supported at 2 points with precision taper roller bearings.
Parameter:
Specification | FL-600Y | FL-660Y | FL-800Y | ||
*Capacity | Swing over bed | 600mm (233/5") | 660mm(26") | 800mm(311/2") | |
Swing over cross slide | 375mm(143/4) | 435mm(171/8") | 545mm(212/5") | ||
Swing in gap | 800mm(311/2") | 860mm(334/5") | 1000mm(39") | ||
Max. length of work piece | 1000mm (40")/ 1500mm (60")/ 2000mm(80")/ 3000mm(120") | ||||
Width of bed ways | 400mm(157/10") | ||||
|
|
| |||
*Spindle | Spindle nose | ISO--c11 or ISO--D11 | |||
Spindle bore | 103mm(4") | ||||
Range of spindle speeds/step | 18 (ccw/18)9-1275rpm 6 (cw/6) 16-816rpm | ||||
|
|
| |||

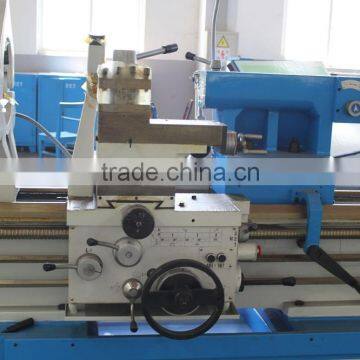

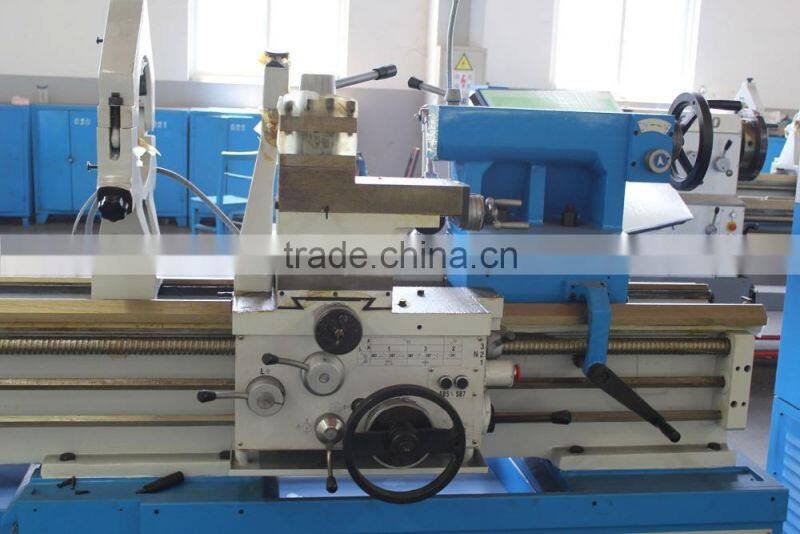

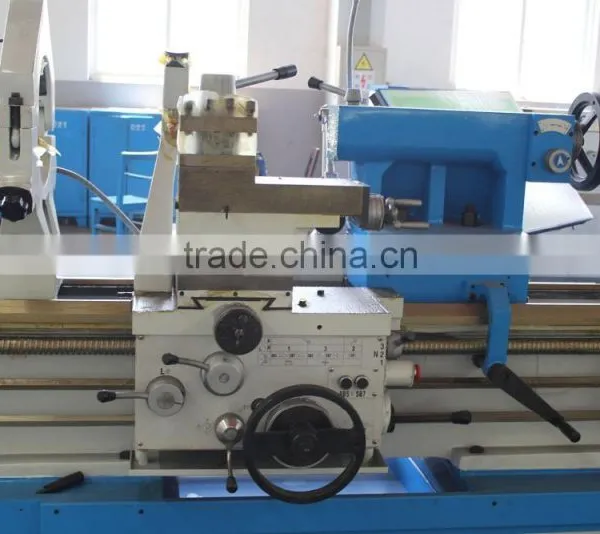

*Carriage | Max. travel of compound rest | 110mm(41/3") | |||
Max. travel of cross slide | 325mm(124/5") | ||||
Section of tool | 32*32mm | ||||
|
|
| |||
*Feed | Longitudinal feeds range | 72kinds 0.073-4.066 mm/rev | |||
Cross feeds range | 72kinds 0.036-2.033 mm/rev | ||||
|
|
| |||
*Threads | Metric threads range | 72kinds 0.5-112 mm | |||
Inch threads range | 72kinds 56-1/4 inch | ||||
Module threads range | 36kinds 0.5-7 | ||||
Diametral threads range | 36kinds 56-4D.P | ||||
|
|
| |||
*Tailstock | Dia. of tailstock sleeve | 90mm | |||
Morse taper of tailstock sleeve | Morse No.6 | ||||
Travel of tailstock sleeve | 150mm | ||||
|
|
| |||
*Power | Power of main motor | 7.5kw or 11kw | |||
Power of quick-travel motor | 250w | ||||
Power of coolant pump | 125w | ||||
|
|
| |||
*Packing (LxWxH) | 1000mm | 3820x1300x2100mm | |||
1500mm | 3320x1300x2100mm | ||||
2000mm | 3820x1300x2100mm | ||||
3000mm | 4820x1300x2100mm | ||||
***Standard items:
3 jaw chuck, 4 jaw chuck, face plate, steady rest, follow rest, dead center, oil gun, coolant system, working light, general tools, foundation bolts, driving plate, chasing dial indicator, operation manual(English edition).
***Optional items:
Digital readout system (D.R.O), Quick change tool post & holders, Taper turning attachment
Package: Wooden pallet & plastic cover (Standard)
or Plywood case (Optional)
Packing size:
One piece in one case: 2850*1150*1850MM N.W./G.W.: 2900/3100KG
Container loaded: 4 sets / 20'GP
