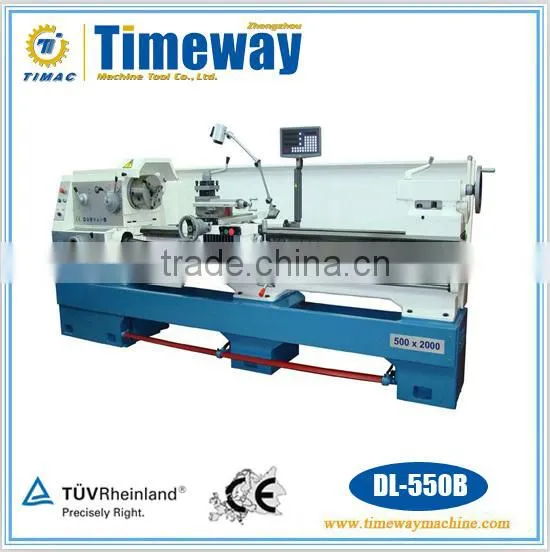

Torno / Horizontal Precision Gap Bed Metal Lathe Machine
Features:
These lathe are suitable mainly for turning internal and external cylindrical, conical and other swing surfaces
as well as various, metric ,inch, module and diametrical pitch threads. They can also be used for broaching
oil groooves and keyways.
1.Hardened by means of middle-frequency induction method, the guideway surfaces of the beds are durable.
2.The construction rigidity and driving rigidity are hingher.
3.With higher power utilization ratio, these lathe are suitable for heavy and high speed cutting operation.
4.These are three kinds of spindle bore (52mm/82mm/105mm)available for choice.
Standard accessories:
3 jaw chuck, Face plate, Steady rest, Dead center, Oil gun, Coolant system,Working light, General tools,
Foundation bolts, Operation manual(English edition).
Optional accessories:
4 jaw chuck, Driving plate, Chasing dial indicator, Digital readout system(DRO), Quick change tool post
Taper turning attachment.
Parameter:
Specification |
Unit |
DL-400A |
DL-500A |
DL-610B |
DL-660B |
DL-800B |
Max. swing over bed |
mm |
400 |
500 |
610 |
660 |
800 |
Max. swing over carriage |
mm |
210 |
300 |
370 |
400 |
540 |
Max. swing in gap |
mm |
630 |
720 |
830 |
880 |
1020 |
Effective width of gap |
mm |
210 |
||||
Max. length of workpiece |
mm |
750/1000/1500/2000/3000 |
||||
Width of bed |
mm |
400 |
||||
Section of tool shank |
mm |
25×25 |
||||
Spindle speeds |
rpm |
11-1600(24steps) |
||||
Spindle bore |
mm |
A:52, B:82, C:105 |
||||
Spindle taper |
|
Morse NO.6 |
||||
Longitudinal |
mm/r |
0.028-6.33(64steps) |
||||
Cross feed range |
mm/r |
0.014-3.16(64kinds) |
||||
Range of metric threads |
mm |
1-192(44kinds) |
||||
Range of inch threads |
T.P.I. |
1-24(21kinds) |
||||
Range of module threads |
mm |
0.25-48(39kinds) |
||||
Range of diametrical threads |
D.P. |
1-96(37kinds) |
||||
Max. travel of tailstock sleeve |
mm |
150 |
||||
Diameter of tailstock sleeve |
mm |
75 |
||||
Taper of tailstock sleeve |
|
Morse NO.5 |
||||
Main motor power |
kw |
7.5(10HP) |
||||
