Home > Manufacturing & Processing Machinery > Machine Tools > Lathe > Torno / 14"-24" High Speed Precision Gap Bed Metal Lathe Machine

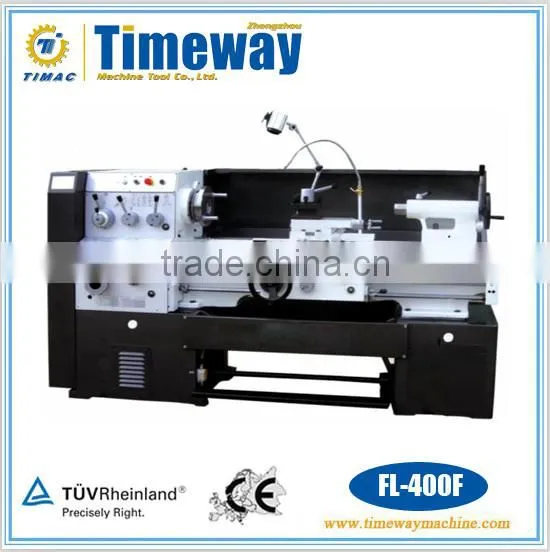

Torno / 14"-24" High Speed Precision Gap Bed Metal Lathe Machine

Name: Torno / 14"-24" High Speed Precision Gap Bed Metal Lathe Machine
Brand: TIMAC
SKU: 140796504
Availability: InStock

Torno / 14"-24" High Speed Precision Gap Bed Metal Lathe Machine thumbnail-1

Torno / 14"-24" High Speed Precision Gap Bed Metal Lathe Machine photo-1

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Condition:

New

Type:

Horizontal

CNC or Not:

Normal

Contact Supplier Request Quote Chat Now

Zhengzhou Timeway Machine Tool Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Chiana Port

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Horizontal

CNC or Not Normal

Automatic Grade Manual

Max. Swing Diameter 360mm-600mm

Brand Name TIMAC

Model Number FL-360F,FL-400F,FL-500F,FL-600F

Voltage as customer's request

Power(W) 4/5.5/7.5kw

Dimension(L*W*H) 2550*1150*1750mm

Weight 1350/1750kg

Certification CE & ISO

After-sales Service Provided Engineers available to service machinery overseas

"360-600mm Swing " High Speed Precision Gap Lathe Machine for sale, Horizontal Lathe Machine Price

Product Description

Standard Accessories:

3 jaw chuck, 4 jaw chuck, Face plate, Steady rest, Follow rest, Dead center, Oil gun, Coolant system
Working light, General tools, Foundation bolts, Operation manual(English edition).

Optional Accessories:
2-axes DRO, Quick change tool post, Taper turning attachment, CE execution

Parameter :

Specification		Unit	FL-360F	FL-400F	FL-500F	FL-600F
Capacity	Max.swing over bed	mm	360	400	500	600
	Max.swing over cross slide	mm	190	230	330	430
	Max.swing in gap	mm	520	560	660	760
	Effective length of gap	mm	200
	Distance between centers	mm	750/1000/1500/200
	Width of bed	mm	360
Headstock	Spindle bore	mm	52 (optional:82)
	Spindle nose		ISO-C6
	Spindle taper		MT6
	Spindle speed(No.)	rpm	40-1400 (9 Steps)
Feeds	Longitudinal feeds range	mm/r	0.0832-4.66
	Cross feeds range	mm/r	0.048-2.69
	Metric threads range	mm	0.25-7 (17 kinds)
	Inch threads range	T.P.I	5-144(30 kinds)
	Module threads range	mm	0.25-3.5 (12 kinds)
	Diametral Threads range		10-288(30 kinds)
Carriage	Max.travel of top slide	mm	95
	Max.travel of cross slide	mm	180	200	250	250
	Max.size of toolshank	mm	20×20
Tailstock	Dia.of tailstock sleeve	mm	65
	Taper of tailstock sleeve		MT4
	Max.travel of tailstock	mm	140
Motor	Main drive motor	kw	4	5.5	5.5	7.5
Motor	Coolant pump motor	w	125
Packing Size	Center distance:750mm	cm	225×115×175
	1000mm	cm	245×115×175
	1500mm	cm	295×115×175
	2000mm	cm	345×115×175
Net/gross weight	Center distance:750mm	kg	1350/1750	1400/1800	1500/1900	1600/2000
	1000mm	kg	1450/1850	1500/1900	1600/2000	1700/2100
	1500mm	kg	1600/2000	1650/2050	1750/2150	1900/2300
	2000mm	kg	1750/2150	1800/2200	1900/2300	2050/2450
