Precision Gap-bed Lathe Machine/Horizontal Gap-bed Lathe Machine/Lathe Machine/Machinery

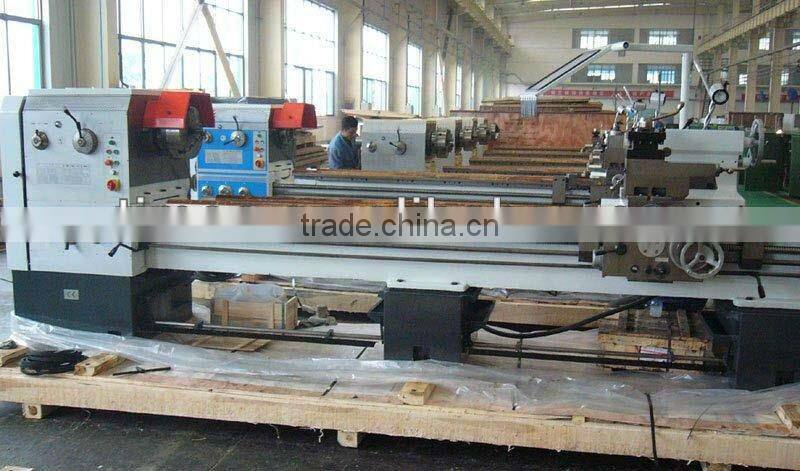

Precision Gap-bed Lathe Machine/Horizontal Gap-bed Lathe Machine/Lathe Machine/Machinery thumbnail-1

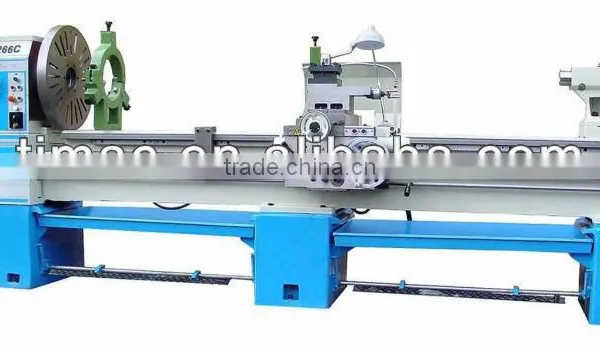

Precision Gap-bed Lathe Machine/Horizontal Gap-bed Lathe Machine/Lathe Machine/Machinery photo-1
US$ 2,000 - 15,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Horizontal
CNC or Not:
Normal
Contact Supplier Request Quote Chat Now
Zhengzhou Timeway Machine Tool Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Horizontal
CNC or Not Normal
Automatic Grade Manual
Max. Swing Diameter 400/500/660/800mm
Place of Origin Henan, China
Brand Name TIMAC
Model Number CS series
Voltage As request
Power(W) 7.5kw
Dimension(L*W*H) 2632x975x1230mm
Weight 2050kg
Certification CE, ISO
After-sales Service Provided Engineers available to service machinery overseas

Specifications

1. Precision Gap-bed Lathe;
2. Conventional Metal Lathe;
3. Swing over bed:400-800mm;
4.52/82mm spindle bore lathe .

Features:
1. Can perform internal and external turning, taper turning, end facing, and other rotary parts turning;
2. Threading Inch, Metric, Module and D.P;
3. Perform drilling, boring and groove broaching;
4. Machine all kinds of flat stocks and those in irregular shapes;
5. Respectively with through-hole spindle bore, that can hold barstocks in larger diameter;
6. Both Inch and Metric system are used on these series lathes, it's easy for people from different measuring systems countries;
7. There are hand brake and foot brake for users to choose.


Standard Accessories:
3 jaw chuck, 4 jaw chuck, Face plate, Steady rest, Follow rest, Dead center, Reduction sleeve, Oil gun, Coolant system, Foot brake, Working light, Chasing dial indicator, Operation manual (English edition).



Optional Accessories:
Digital readout system (D.R.O), Quick change tool post & holders, Taper turning attachment.



Specification Unit CS6240B CS6250B CS6266B CS6280B CS6250C CS6266C CS6280C
Max. swing dia. over bed mm Φ400 Φ500 Φ660 Φ800 Φ500 Φ660 Φ800
Max. swing dia.in gap mm Φ630 Φ710 Φ870 Φ1000 Φ710 Φ870 Φ1000
Max. swing dia. over slides mm Φ220 Φ300 Φ420 Φ560 Φ300 Φ420 Φ560
Max. workpiece length mm 1000/ 1500/ 2000/ 3000 2000/ 3000 1000/ 1500/ 2000/ 3000 2000/ 3000
Spindle bore diameter mm Φ52 Φ82 Φ105
Type of spindle nose no 6240B:ISO 702/III NO.6 bayonet lock; others:ISO 702/II NO.8 com-lock type
Spindle speed rpm 24 steps 9-1600 24 steps 8-1400 12 steps 36-1600 12 steps 30-1400
Diameter of quill mm Φ75 Φ90 Φ75 Φ90
Max. travel of quill mm 150
Taper of quill (Morse) MT 5
Tool O.D. size mm 25X25
Max. X travel mm 145
Max. Z travel mm 320 310 320
X feed range mm/r 93 kinds 0.028-6.43 65 kinds 0.063-2.52
Z feed range mm/r 93 kinds 0.012-2.73 65 kinds 0.027-1.07
Metric threads mm 48 kinds 0.5-224 22 kinds 1-14
Inch threads t.p.i 48 kinds 72-1/4 25 kinds 28-2
Module threads πmm 42 kinds 0.5-112 18 kinds 0.5-7
Diametric pitch threads t.p.i.π 42 kinds 56-1/4 24 kinds 56-4
Spindle motor power kw 7.5
Cooling pump motor power kw 0.06
Length mm 2632/ 3132/ 3632/ 4632 2632/ 3132/ 3632/ 4632 3365/ 4365 2632/ 3132/ 3632/ 4632 3365/ 4365
Width mm 975 1050 1340 975 1340
Height mm 1230 1350 1430 1270 1450 1490
Weight kg 2050/ 2250/ 2450/ 2850 2100/ 2300/ 2500/ 2900 2400/ 2600/ 2800/ 3000 3300/ 3700 2100/ 2300/ 2500/ 2900 2200/ 2400/ 2600/ 3000 3000/ 3200
